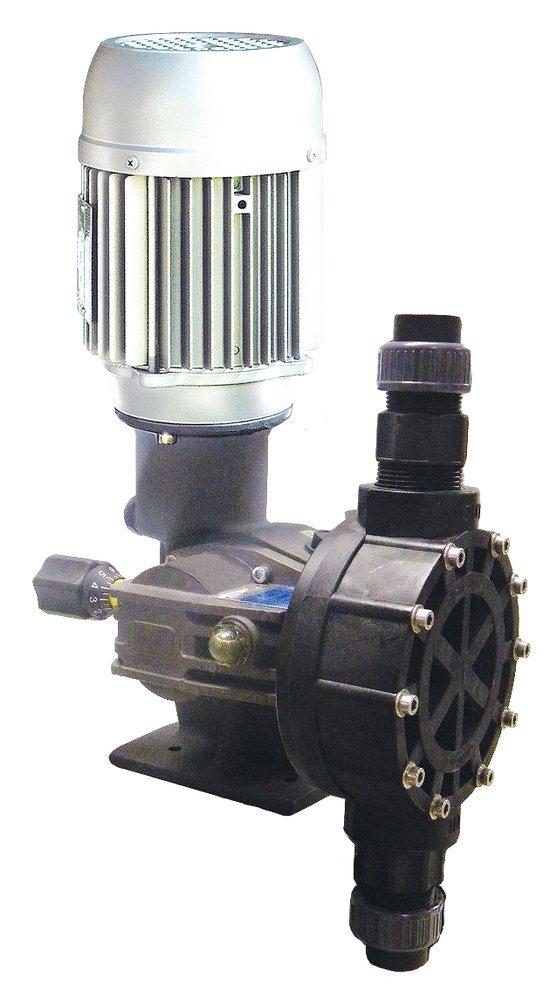

696 gpd 150 psi PVDF and PTFE Centrifugal Pump
Pulsafeeder
Blackline Series 696 gpd 150 psi PVDF and PTFE Centrifugal Pump
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Pulsafeeder
Blackline Series
696 gpd 150 psi PVDF and PTFE Centrifugal Pump
MD1DKTPN1A-XXX
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Rugged design works in many chemical feed applications
- Double-sided PTFE diaphragm
- Leak-free seal-less liquid end
- Oil lubricated ball bearings in a die-cast aluminum housing
- Manual controlled pumps include a micrometer style stroke adjustment knob offering a 10:1 turndown ratio
- A totally enclosed fan cooled motor (TEFC) is included
- Flooded suction installation is recommended (if not installed in this manner a separate foot valve will need to be purchased)
- Note: accessories are not included; pressure relief valve, backpressure valve, injection valve, pulsation dampener and piping purchased separately
Specifications
- Collection:
- Blackline Series
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- Fitting Size 1:
- 1/2 in
- Fitting Size 2:
- 1/2 in
- Fitting Sizes:
- 1/2 in
- Flow Rate:
- 696 gpm
- Horsepower:
- 1/2 hp
- NEMA:
- NEMA 4X
- Pressure - Maximum:
- 150 psi
- Pump Motor Type:
- TEFC
- RPM:
- 1725
- UL Listed:
- No
- Volts:
- 115/230V
