Elbow In-Line Univolt 100/240V Mini Split Condensate Pump - No Duct
Rectorseal

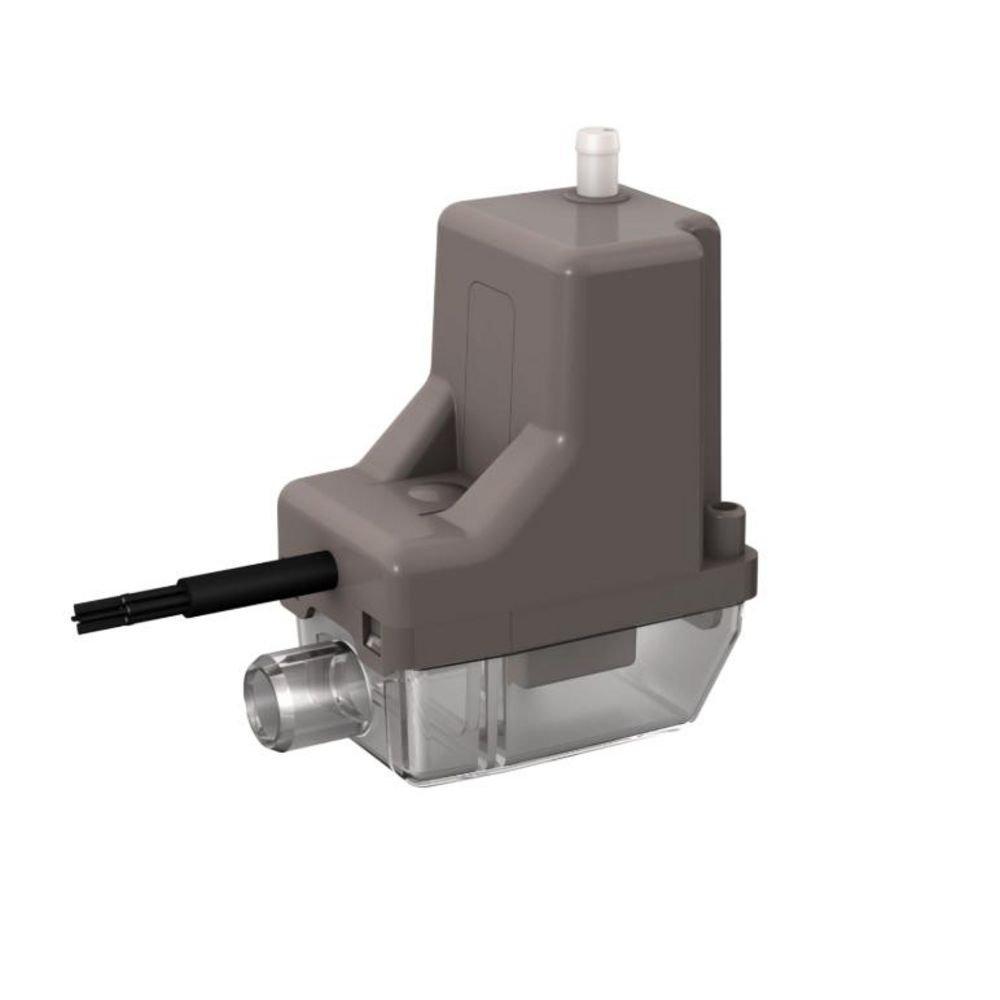

Ghost™ Series Elbow In-Line Univolt 100/240V Mini Split Condensate Pump - No Duct
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Rectorseal
Ghost™ Series
Elbow In-Line Univolt 100/240V Mini Split Condensate Pump - No Duct
83869
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Left or right install
- Easily accessed for filter cleaning
- Two lineset cover styles available – Slimline or Fortress
- 3A NC dry contacts rated @ 5A inductive at 230V AC
- Fully potted electronics
Documents
Dimensions & Measurements
Cord Length
6 ft
Depth
3-3/8 in
Diameter - Inside 1
3-3/4 in
End Connection 1
Compression
End Connection 2
Meter Swivel Nut
End Connections
Compression x Meter Swivel Nut
Flow Rate
2.9-3.2 gph @ 0' Head/1.3-1.5 gph @ 33' Head
Height
1-5/8 in
Length
3-3/4 in
Maximum Feet of Head
33
Width
3-3/4 in
Characteristics & Features
Collection
Ghost™ Series
Material
Plastic
Material Type
ABS
Pump Body Material
ABS
Pump Stage
1
Electrical & Operational Information
AMP
0.16
Maximum Temperature
104
Phase
Single Phase
Power Source
Electric
Volts
100/230V
Watts
16 W
Warranty & Product Information
CSA Certified
No
Origin
Global
Pump Application
Self-priming
UL Listed
No
UPC
021449838696
