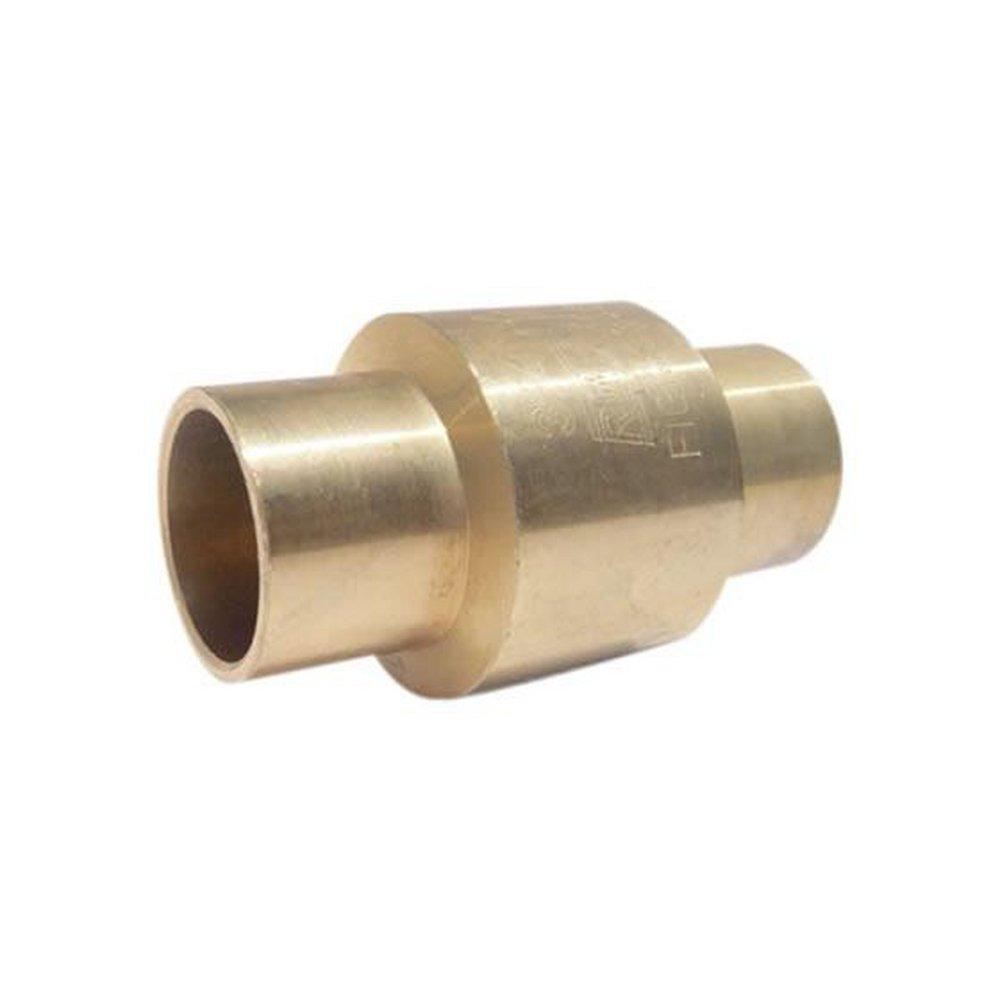

2 in. Brass Solder Check Valve

Red-White Valve

Figure 233AB 2 in. Brass Solder Check Valve

Brand image
Red-White Valve

Figure 233AB 2 in. Brass Solder Check Valve

  • Part #R233ABK
  • Item #4155171
  • Manufacturer Part #233AB 2
3.1 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Low Lead Brass Disc
  • Spring Loaded (SS304 spring)
  • FPMSoft Seat
  • AB1953, NSF/ANSI 61 & 372
  • Low Noise Operation
  • Horizontal or Vertical
  • Lead Law Compliant


Specifications

ANSI:
ANSI 372, ANSI 61
ASME:
ASME B16.22
ASTM:
ASTM B-927 C27450
Clean Bagged:
No
Collection:
Figure 233AB
End Connection 1:
Solder
End Connection 2:
Solder
End Connections:
Solder
FM Approved:
No
Height:
4-33/100 in
IAPMO Listed -:
No
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
3-7/100 in
Material:
Brass
Maximum Temperature:
200
Minimum Temperature:
15
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
200
Pressure Class:
200#
Recommended Valve Application:
Water, Oil, Gas
UL Listed:
No
Valve Body Style:
Inline
Valve Disc Material:
Brass
Valve Seat Material:
FKM
Valve Size:
2 in
Valve Type:
Check Valve
Weight:
1.98 lb
