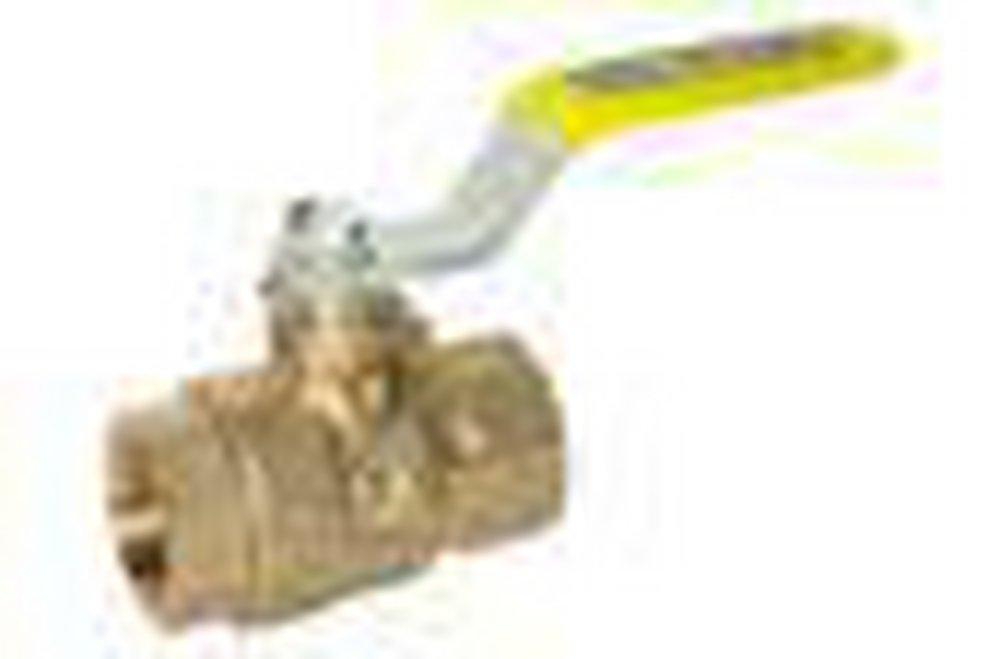

1/4 in. Forged Brass Full Port FNPT 600# Ball Valve

Red-White Valve

Figure 5544AB 1/4 in. Forged Brass Full Port FNPT 600# Ball Valve

  • Fast #
  • Part #R5544ABB
  • Item #4055718
  • Manufacturer Part #5544AB 1/4
3.7 out of 5 Customer Rating
Brand image
Red-White Valve Forged Brass Full Port FNPT 600# Ball Valve
Red-White Valve Forged Brass Full Port FNPT 600# Ball Valve
Red-White Valve

Figure 5544AB 1/4 in. Forged Brass Full Port FNPT 600# Ball Valve

  • Fast #
  • Part #R5544ABB
  • Item #4055718
  • Manufacturer Part #5544AB 1/4
3.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 80
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Chrome plated ball
  • Blow out proof stem
  • Adjustable packing nut
  • FM approved
  • 150# WSP/600# WOG
  • Lead free brass body
  • Full port
  • Threaded ends (ASME B1.20.1-NPT)
  • Virgin PTFE seats
  • Conforms to MSS-SP-110
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61, ANSI Z1157, ANSI Z21.15
ASME:
ASME A112.4.14, ASME B1.20.1, ASME B16.44
ASTM:
ASTM A-36, ASTM B-124, ASTM B-927
CSA Certified:
CSA 3.16, CSA 9.1, CSA B125.14, CSA CGA CR91.002
Clean Bagged:
No
Collection:
Figure 5544AB
End Connection 1:
FNPT
End Connection 2:
FNPT
End Connections:
FNPT
FM Approved:
Yes
Fire Suppression System Rated:
No
Handle Material:
Plated Steel
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
1-18/25 in
MA Approved:
No
MSS:
MSS SP-110
Material:
Forged Brass
Maximum Temperature:
160
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
150, 600
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Gas, Oil, Steam, Water
UL Listed:
Yes
UPC:
670779450025
Valve Body Style:
2 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Virgin PTFE
Valve Size:
1/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
0.26 lb
cUPC Certified:
No
