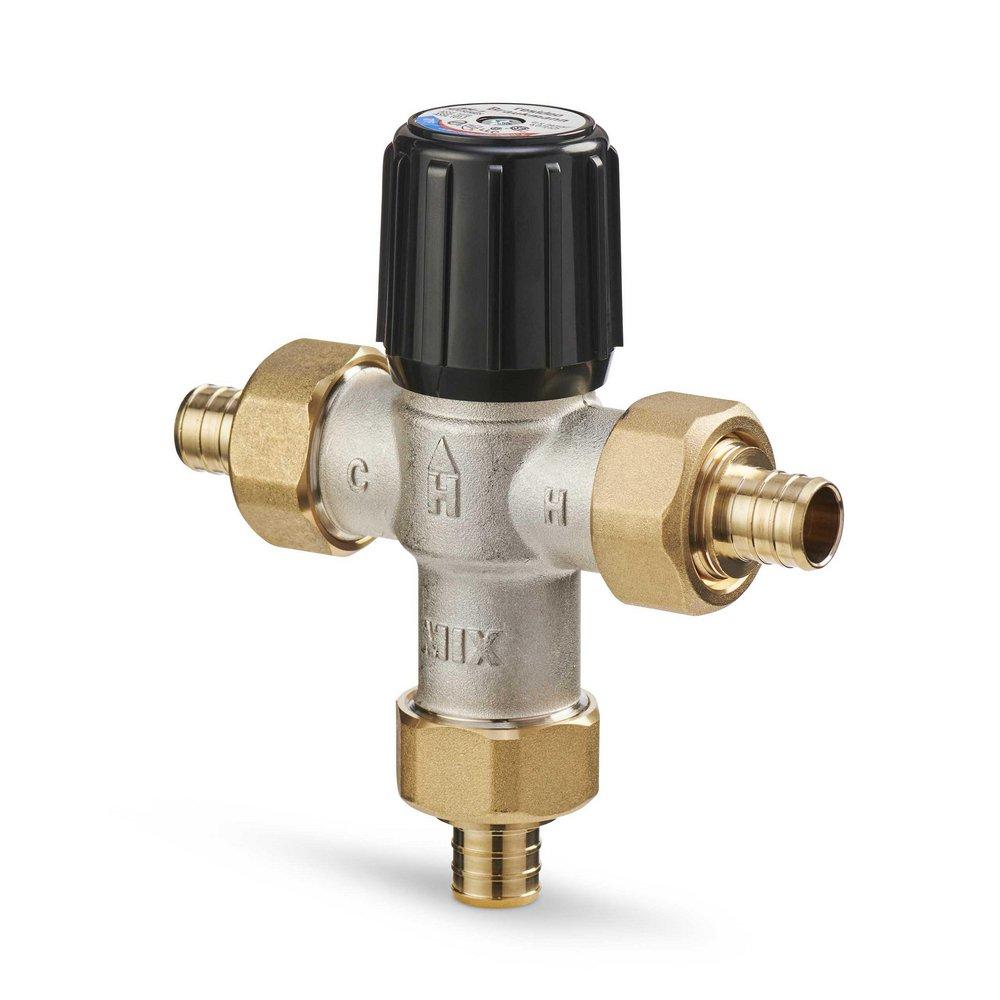

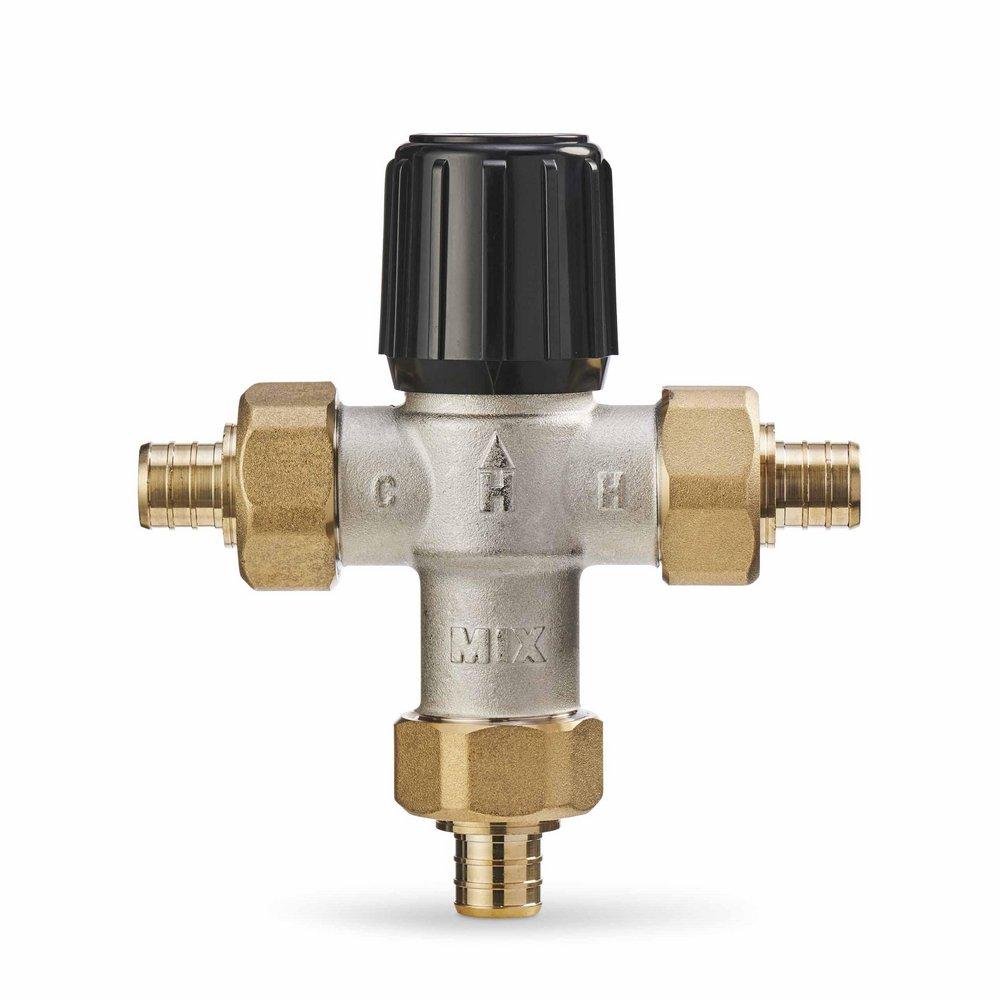

3/4 in Union PEX Thermostat Mixing Valve
Resideo
AM-1 Series™ 3/4 in Union PEX Thermostat Mixing Valve
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Resideo
AM-1 Series™
3/4 in Union PEX Thermostat Mixing Valve
AM101C1070-UPEX1LF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
- Lead free products have products numbers end in LF
- Available Temperature Gauge Adapter in lead-free brass material with EPDM o-ring.
-
Lead Law Compliant
Specifications
- ANSI:
- ASSE 1017 Certified, ASSE 1070 Certified, IAPMO Listed
- ASME:
- ASSE 1017 Certified, ASSE 1070 Certified, IAPMO Listed
- ASSE Standards:
- ASSE 1017
- ASTM:
- ASSE 1017 Certified, ASSE 1070 Certified, IAPMO Listed
- CSA Certified:
- ASSE 1017 Certified, ASSE 1070 Certified, IAPMO Listed
- Collection:
- AM-1 Series™
- End Connection 1:
- Union PEX
- End Connection 2:
- Union PEX
- End Connections:
- Union PEX
- Fitting Size 1:
- 3/4 in
- Height:
- 6 in
- IAPMO Listed:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 5-1/10 in
- Material:
- Plastic, Rubber
- Material Type:
- EPDM, Teflon
- Maximum Temperature:
- 120
- Origin:
- Global
- Pressure - Maximum:
- 150 psi
- Recommended Valve Application:
- Water
- UPC:
- 085267337755
- Valve Body Material:
- PTFE
- Valve Body Style:
- Straight
- Valve Material:
- Plastic
- Valve Size:
- 3/4 in
- Valve Type:
- Thermostat Mixing Valve
