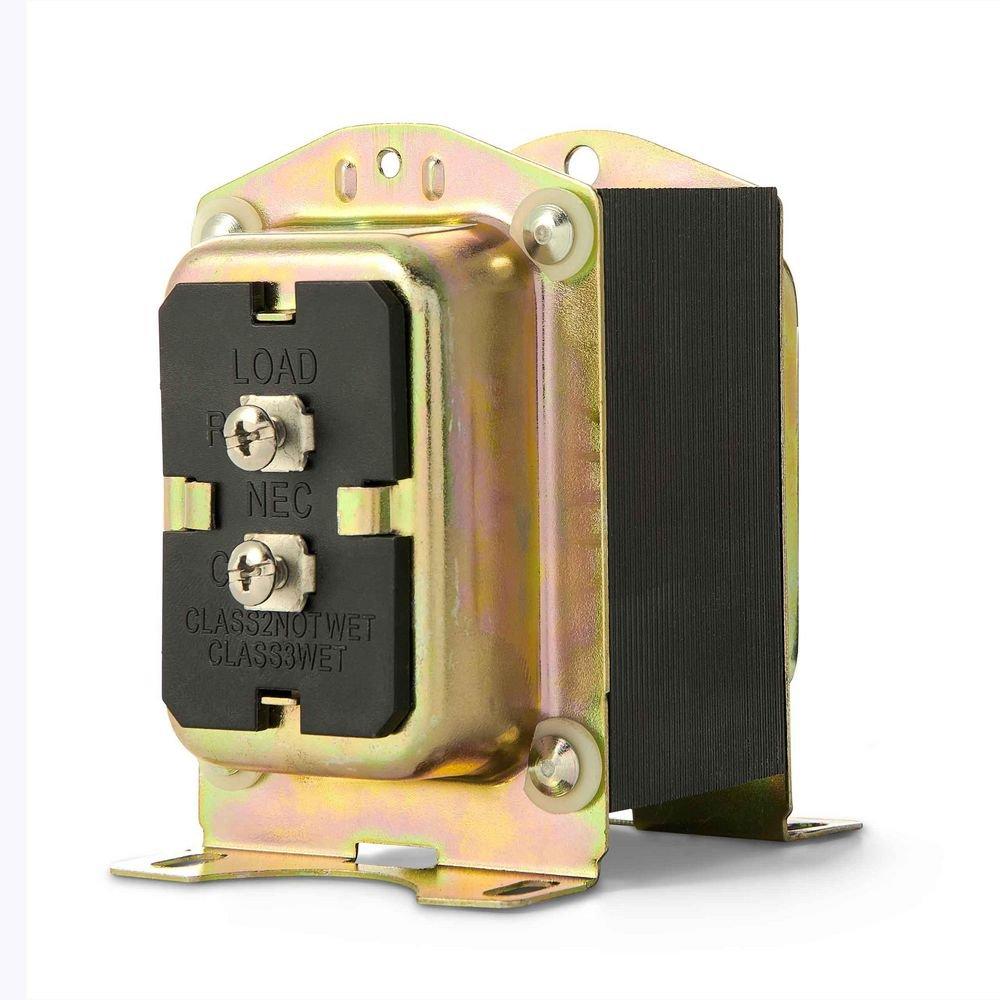

50 VA 120/208/240V Foot Mount General Purpose Transformer
Resideo
AT150 50 VA 120/208/240V Foot Mount General Purpose Transformer
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 20 Pallet: 360
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Resideo
AT150
50 VA 120/208/240V Foot Mount General Purpose Transformer
AT150A1007
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Color-coded leadwires for primary connections and screw terminals for secondary connections
- Fixed 1/4" (6 mm) male quick-connects or color-coded lead wires for both primary and secondary are standard
- Universal mounting
- Meets underwriters laboratories standard UL 1585
- Identified class 2 not wet, class 3 wet
Dimensions & Measurements
Depth
1-3/4 in
Height
1-9/13 in
Width
3-3/16 in
Characteristics & Features
Collection
AT150
Installation Type
Foot Mount
Electrical & Operational Information
Phase
Single Phase
Volts
120/208/240V
Warranty & Product Information
NEMA
No
Product Type
General Purpose Transformer
UL Listed
Yes
VA Rating
50 VA
UPC
085267035347
