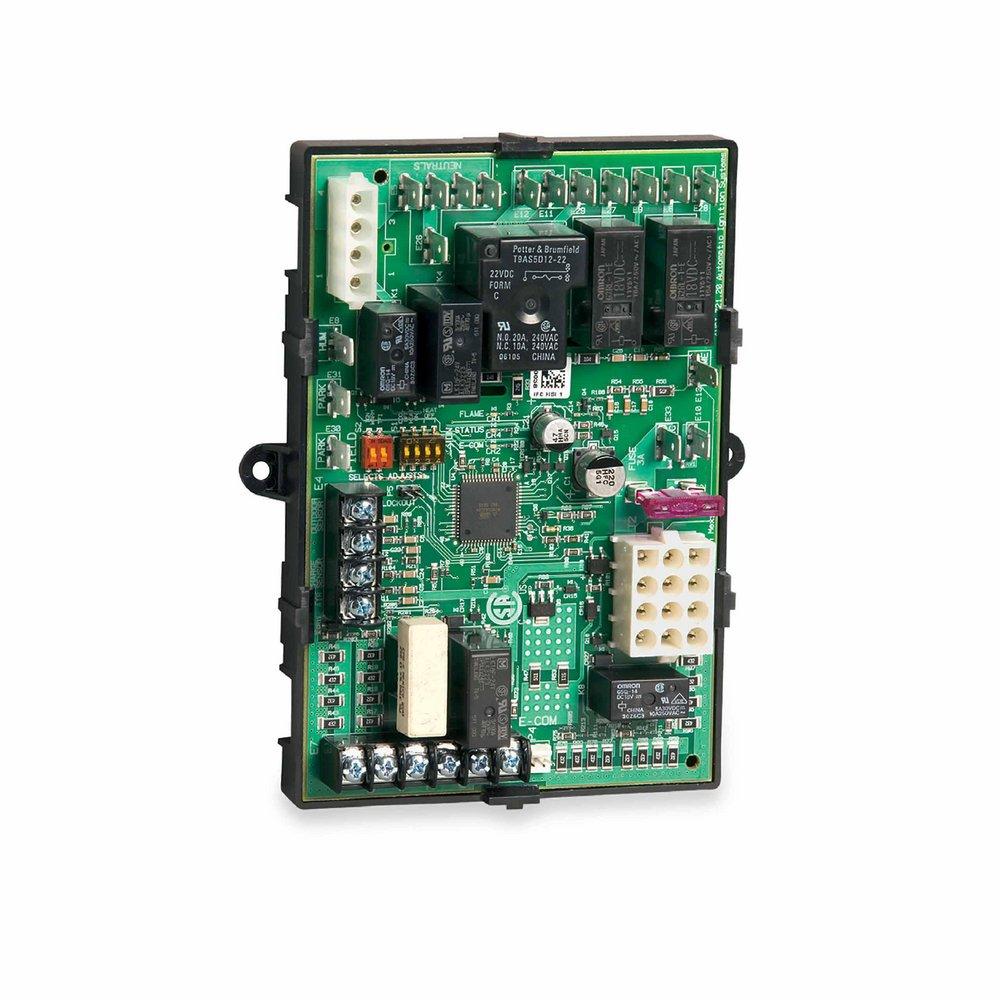

Multi-System HSI Integrated Furnace Control Board

Resideo

Multi-System HSI Integrated Furnace Control Board

Brand image
Resideo

Multi-System HSI Integrated Furnace Control Board

  • Part #HS9200U1000
  • Item #3420474
  • Manufacturer Part #S9200U1000
3.1 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 25 PT: 375
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up:
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

  • Controls circulating fan motor based on appliance requirements with a conventional low voltage thermostat
  • Cross reference and wire harnesses included
  • Replaces over 195 existing furnace controls
  • LED system status, performance, and diagnostic indication
  • Monitoring of system pressure switch, high temperature limit, and rollout functions
  • Appliance operation and safety requirements controlled via microprocessor
  • Flame rectification circuit to monitor flame presence
  • Main burner ignition using a 120V hot surface igniter
  • Twinning capability

Specifications

AMP:
5
Brand Model Compatibility:
Nordyne 624557 Furnace
Control Board Type:
Furnace
Height:
4-13/100 in
Length:
6-13/100 in
Origin:
Global
Volts:
120V
Width:
1-1/2 in
