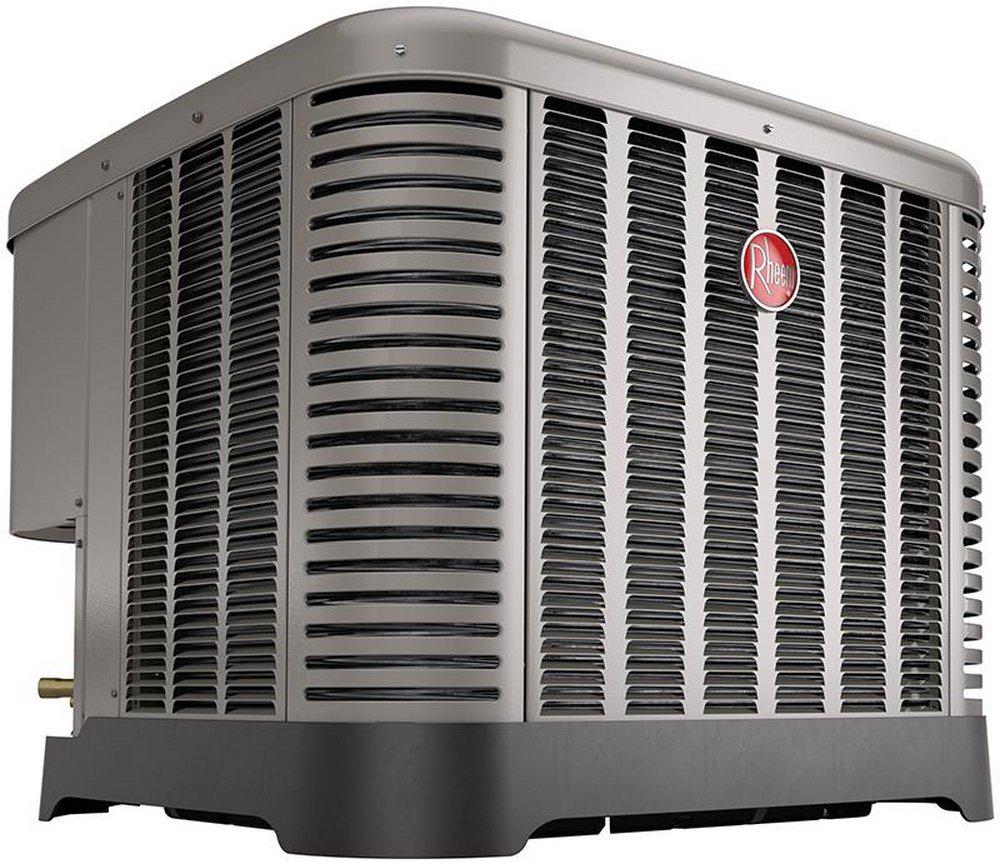

2 Ton up to 14 SEER2 - Air Conditioner - R-454
Rheem
2 Ton up to 14 SEER2 - Air Conditioner - R-454
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Rheem
2 Ton up to 14 SEER2 - Air Conditioner - R-454
RA14AY24BJ1NA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- 7mm Condenser Copper Coil: Requires less refrigerant
- Swept Wing Fan Technology1: Features quieter operation
- PlusOne® Triple Service Access: 15 in. wide, industry
- Designing for Sustainability with Low GWP: For 2025,
- PlusOne® Refrigerant Detection System™3: An integrated
-
Green
-
A2L Compatible
Documents
Specifications
- A2L Compatible:
- Yes
- BTU:
- 24000
- BTU Cooling Rating:
- 22800 Btu/h
- CEC Compliant:
- Not for Sale in CA
- Coil Type:
- Plate Fin
- Communicating:
- Non-Communicating
- Compressor Stages:
- Single Stage
- Compressor Type:
- Scroll
- Decibel Rating (dB):
- 71 dB
- Depth:
- 33-3/4 in
- EER:
- 11.7
- Energy Star Compliant:
- Yes
- Height:
- 25 in
- Horsepower:
- 1/6 hp
- Liquid Line (OD):
- 3/8 in
- Lock Rotor Amps (LRA):
- 67
- Maximum Overcurrent Protection (MOP):
- 25
- Number of Condenser Fan Motors:
- 1
- Phase:
- Single Phase
- Power Source:
- Electric
- Rated Load Amps (RLA):
- 12.7
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- SEER2:
- 15.2
- Suction Line (OD):
- 3/4 in
- Tonnage:
- 2 Ton
- Tonnage:
- 2 Ton
- UL Listed:
- Yes
- UPC:
- 662021758898
- Volts:
- 208/230V
- Weight:
- 163 lb
- Width:
- 33-3/4 in
