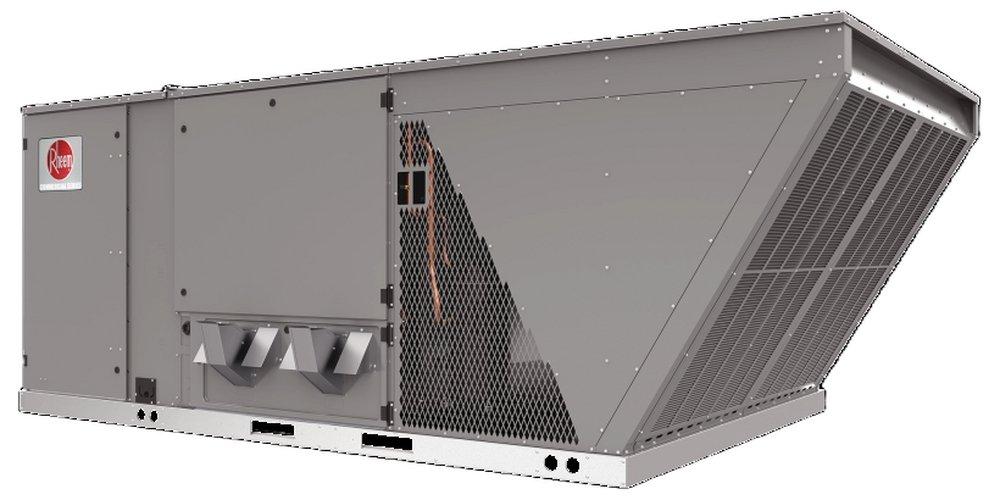

30 Ton Cooling - Commercial Packaged Gas/Electric - 454B - 460/3
RGEHYB360ADG40BCACA0A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Factory charged with R-454B refrigerant
- Wired and run tested at the factory
- Powder Paint Finish meets ASTM B117 test requirements. G90 galvanized steel coated on each side for maximum protection.
- Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers in the air stream
- Scroll compressors with internal line break overload and high-pressure protection
- One single-stage and one two-stage compressor for 5 total stages of cooling
- MicroChannel condenser coil and Tube and Fin evaporator coil
- Permanently lubricated gas heat inducer, evaporator and condenser motors
-
A2L Compatible
Documents
Specifications
- A2L Compatible:
- Yes
- Application:
- Commercial
- BTU:
- 360000
- BTU Cooling Rating:
- 330000 Btu/h
- Blower Type:
- Direct Drive
- CEC Compliant:
- Not for Sale in CA
- Coil Type:
- Micro-channel
- Compressor Stages:
- Variable Speed
- Compressor Type:
- Scroll
- Configuration:
- Convertible
- Decibel Rating (dB):
- 91 dB
- Depth:
- 152-1/16
- EER2:
- 9.8
- EER2 Range:
- 0 - 10.5
- Gas Valve Stages:
- Two-Stage
- Heat Exchanger Type:
- Stainless Steel
- Height:
- 57
- Horsepower:
- 3/4 hp
- Ignition System:
- Direct Spark Ignition
- Number of Compressors:
- 2
- Number of Condenser Fan Motors:
- 6
- Phase:
- Three Phase
- Power Source:
- Electric
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- Tonnage:
- 30 Ton
- Type:
- RGEHYB360ADG40BCAC
- UL Listed:
- Yes
- UPC:
- 662021769115
- Volts:
- 460V
- Weight:
- 2541
- Width:
- 85-29/32
