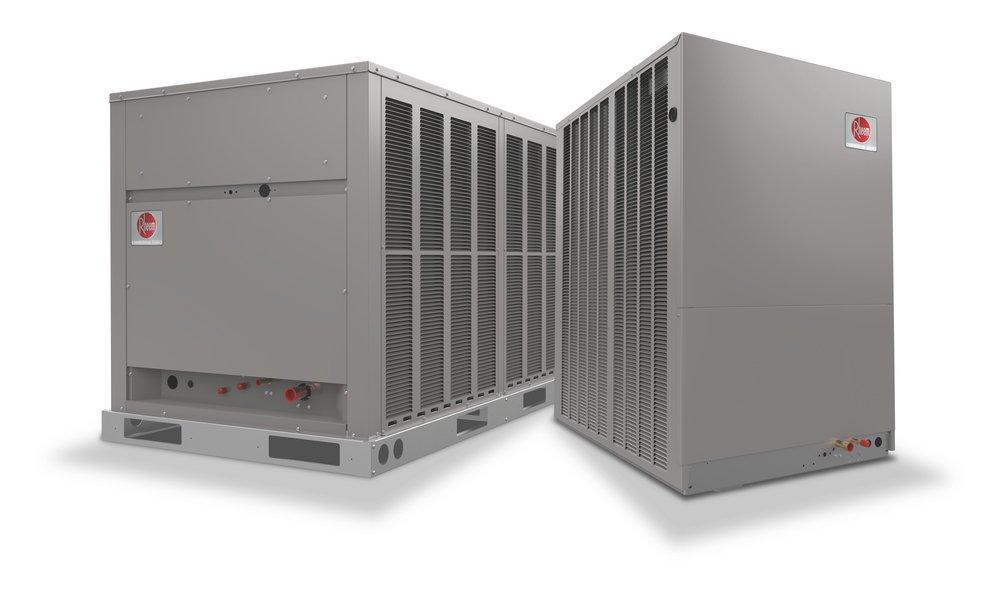

7.5 Ton - Two Stage Commercial Heat Pump - R-454B - 208/230/3
Rheem
7.5 Ton - Two Stage Commercial Heat Pump - R-454B - 208/230/3
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Rheem
7.5 Ton - Two Stage Commercial Heat Pump - R-454B - 208/230/3
RPCY2090CAZ
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Factory charged with nitrogen for shipping
- Ready to be charged with R-454B refrigerant in the field after installation
- Wired and run tested
- Scroll compressors with internal line break overload and high pressure protection
- High and Low Pressure switches provide additional system protection
- Forkable base rails on 10 Ton for easy handling and lifting
- Tube and Fin condenser and evaporator coils
- Single-piece control door
-
A2L Compatible
Documents
Specifications
- A2L Compatible:
- Yes
- BTU:
- 90000
- BTU Cooling Rating:
- 85500 Btu/h
- BTU Heat Rating:
- 85500 Btu/h
- CEC Compliant:
- For Sale in CA
- Coefficient of Performance (COP):
- 3.4
- Coil Type:
- Plate Fin
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Convertible
- Depth:
- 42-7/10 in
- EER:
- 11.0
- Height:
- 48-4/5 in
- Horsepower:
- 1/2 hp
- Liquid Line (OD):
- 5/8 in
- Lock Rotor Amps (LRA):
- 178.5
- Maximum Overcurrent Protection (MOP):
- 60
- Number of Condenser Fan Motors:
- 1
- Phase:
- Three Phase
- Power Source:
- Electric
- Rated Load Amps (RLA):
- 26.3
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- Suction Line (OD):
- 1-5/8 in
- Tonnage:
- 7.5 Ton
- Tonnage:
- 7.5 Ton
- UL Listed:
- Yes
- UPC:
- 662021686832
- Vent Ducted or Ductless:
- Ducted
- Volts:
- 230V
- Weight:
- 428 lb
- Width:
- 31-1/10 in
