80% - Constant Torque - 125K BTU - Multi-Position - Standard NOx Furnace - 24.5"
Rheem

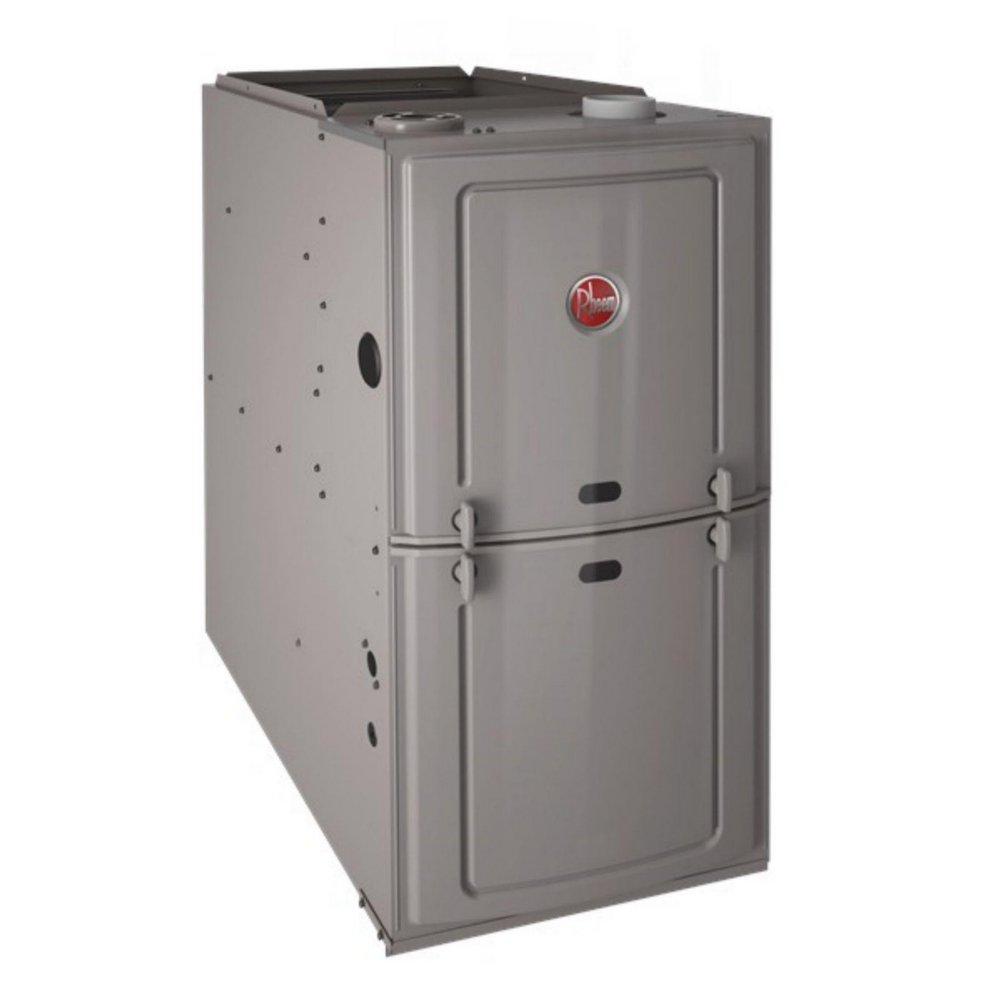

Classic Plus® Series 80% - Constant Torque - 125K BTU - Multi-Position - Standard NOx Furnace - 24.5"
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Rheem
Classic Plus® Series
80% - Constant Torque - 125K BTU - Multi-Position - Standard NOx Furnace - 24.5"
R801TA125524MSA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Heat exchanger is removable for improved serviceability
- Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability
- Solid doors provide quiet operation
- Low profile "34 inch" cabinet ideal for space constrained installations
- Blower shelf design - serviceable in all furnace orientations
- QR codes for quick access to product information from your smart phone or tablet
- Conditional parts warranty for 10 years
- Heat exchanger warranty for 20 years
- Solid bottom
Specifications
- AFUE:
- 80.00 %
- AMP:
- 11, 15
- ANSI:
- ANSI Z223.1
- BTU:
- 125000
- BTU Heat Rating:
- 100000 Btu/h
- Blower Type:
- Direct Drive Multispeed
- CEC Compliant:
- For Sale in CA
- CFM:
- 1934 ft3/min
- Collection:
- Classic Plus® Series
- Condensing:
- No
- Configuration:
- Horizontal, Upflow
- Depth:
- 29-14/25 in
- Energy Star Compliant:
- No
- Fan Speeds:
- 5
- Flue Size:
- 4
- Fuel Type:
- Natural Gas
- Gas Valve Stages:
- Single-Stage
- Heat Exchanger Type:
- Aluminized Steel
- Height:
- 34 in
- Horsepower:
- 3/4 hp
- Ignition System:
- Direct Spark Ignition
- MBH:
- 125
- Max Fuse Size:
- 15
- Phase:
- Single Phase
- Power Source:
- Electric, Gas
- Temperature Range:
- 35 to 65 Deg F
- Tonnage:
- 3.5 - 5 Ton
- Tonnage:
- 3.5 - 5 Ton
- UL Listed:
- No
- UPC:
- 662021373992
- Vent Type:
- B-Vent
- Volts:
- 115V
- Width:
- 24 in
