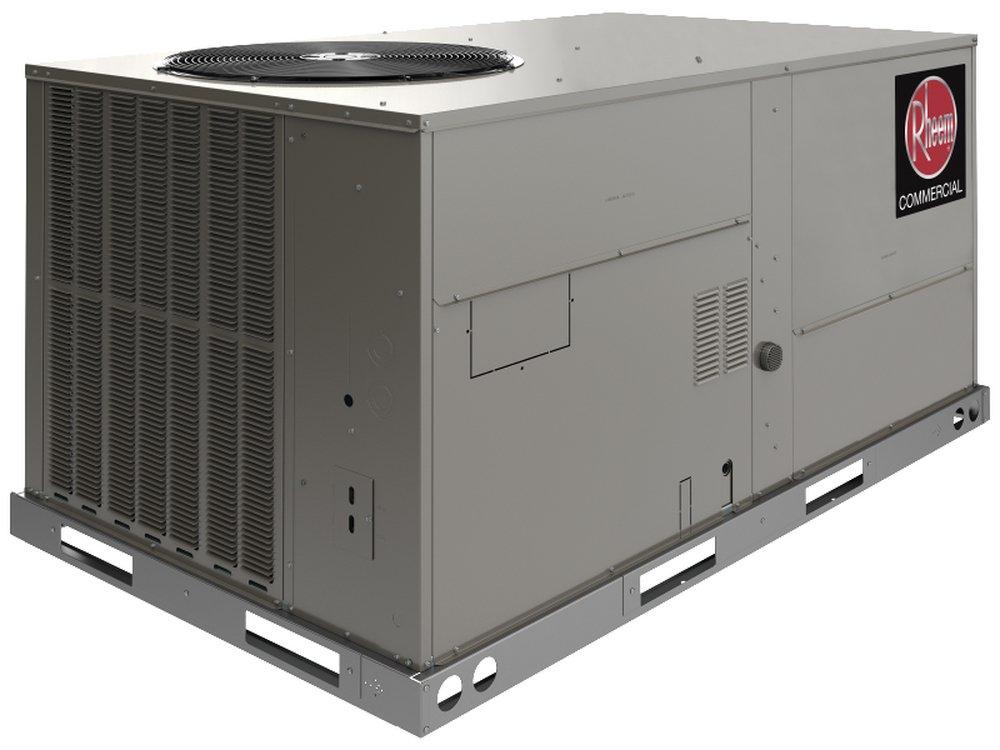

3 Ton 36 MBH 460V Three Phase Commercial Packaged Gas/Electric Unit
Rheem
Classic® Series 3 Ton 36 MBH 460V Three Phase Commercial Packaged Gas/Electric Unit
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Rheem
Classic® Series
3 Ton 36 MBH 460V Three Phase Commercial Packaged Gas/Electric Unit
RGECZR036ADT10BAAAA0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Factory charged with R410A HFC refrigerant
- Wired and run tested
- Scroll compressors with internal line break overload and high pressure protection
- Model RGEDZR has a single-stage compressor
- Convertible airflow - vertical down flow or horizontal side flow
- Single-point electrical connections
- Forkable base rails for easy handling and lifting
- Cooling operation up to 125°F ambient
- Two-stage gas heat input with direct spark ignition system, solid state furnace controls, and optimized induced draft combustion
Specifications
- A2L Compatible:
- No
- AFUE:
- 81.00 %
- AMP:
- 0.8, 1.4, 11, 3.2, 38, 6.3
- Application:
- Commercial
- BTU:
- 36000
- BTU Cooling Rating:
- 35400 Btu/h
- BTU Heat Rating:
- 100000 Btu/h
- Blower Type:
- Direct Drive
- CEC Compliant:
- For Sale in CA
- Coil Type:
- Louvered
- Collection:
- Classic® Series
- Compressor Type:
- Scroll
- Configuration:
- Convertible
- Decibel Rating (dB):
- 78.6 dB
- Depth:
- 46-3/4 in
- EER:
- 11.2
- ETL Listed:
- No
- Energy Star Compliant:
- No
- Fuel Type:
- Natural Gas, Propane
- Height:
- 41-3/8 in
- Horsepower:
- 2-1/2 hp
- Ignition System:
- Direct Spark Ignition
- MBH:
- 36
- Max CFM:
- 4600 cfm
- Phase:
- Three Phase
- Power Source:
- Electric, Gas
- RPM:
- 3450
- Refrigerant:
- R-410A
- SEER2:
- 14.0
- Stages:
- Single
- Tonnage:
- 3 Ton
- UL Listed:
- Yes
- UPC:
- 662021526886
- Volts:
- 460V
- Watts:
- 3.16 kW
- Weight:
- 557 lb
- Width:
- 79-1/4 in
