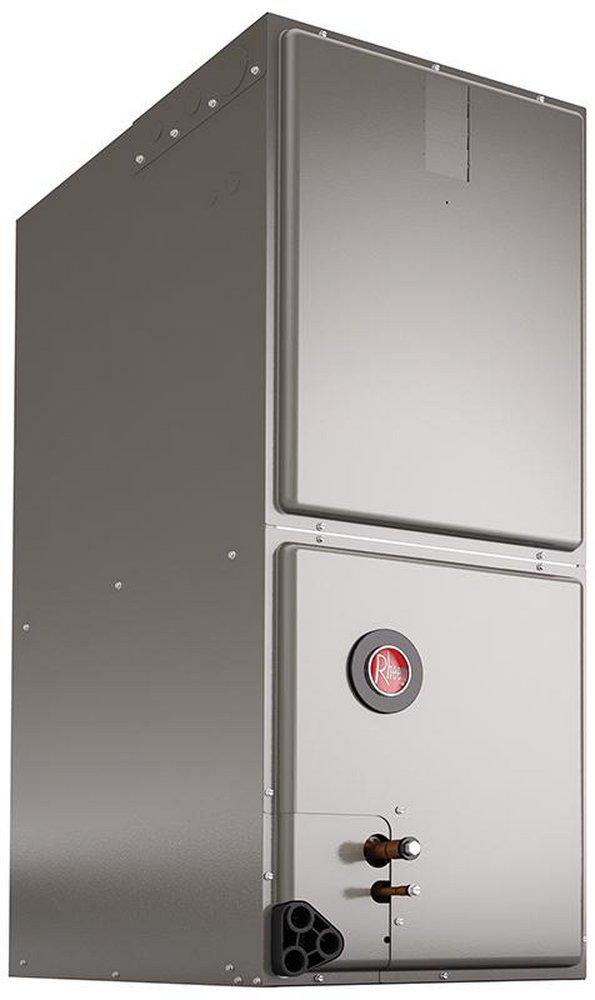

4 Ton - Multi-Position - Commercial Air Handler - 460/3 - R-454B

Rheem

Endeavor® Line 4 Ton - Multi-Position - Commercial Air Handler - 460/3 - R-454B

  • Fast #
  • Part #RH2TY4824STANND
  • Item #11635397
  • Manufacturer Part #RH2TY4824STANND
5 out of 5 Customer Rating
Brand image
4T A/H 460/3 W/CONS TORQ MTR R454B
4T A/H 460/3 W/CONS TORQ MTR R454B
4T A/H 460/3 W/CONS TORQ MTR R454B
4T A/H 460/3 W/CONS TORQ MTR R454B
Rheem

Endeavor® Line 4 Ton - Multi-Position - Commercial Air Handler - 460/3 - R-454B

  • Fast #
  • Part #RH2TY4824STANND
  • Item #11635397
  • Manufacturer Part #RH2TY4824STANND
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Quiet Operation: Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics
  • Aluminum Indoor Coil Design: Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
  • Versatile 4-Way Convertible Compact Design: Allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces
  • Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility
  • Field Installed Auxiliary Heater Kits: Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
  • Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193
  • Requires Certification

  • A2L Compatible

Documents

SPECIFICATION

Specifications

A2L Compatible:
Yes
BTU:
48000
BTU Cooling Rating:
48000 Btu/h
CEC Compliant:
Not for Sale in CA
Coil Type:
Plate Fin
Collection:
Endeavor® Line
Configuration:
Multi-Position
Depth:
21-11/16 in
Factory Installed Heat Strip:
No
Height:
55-1/2 in
Liquid Line (OD):
3/8 in
Maximum Overcurrent Protection (MOP):
15
Phase:
Three Phase
Power Source:
Electric
Refrigerant:
R-454B
Suction Line (OD):
7/8 in
Tonnage:
4 Ton
UL Listed:
Yes
UPC:
662021699221
Volts:
480V
Weight:
128 lb
Width:
24-1/2 in
