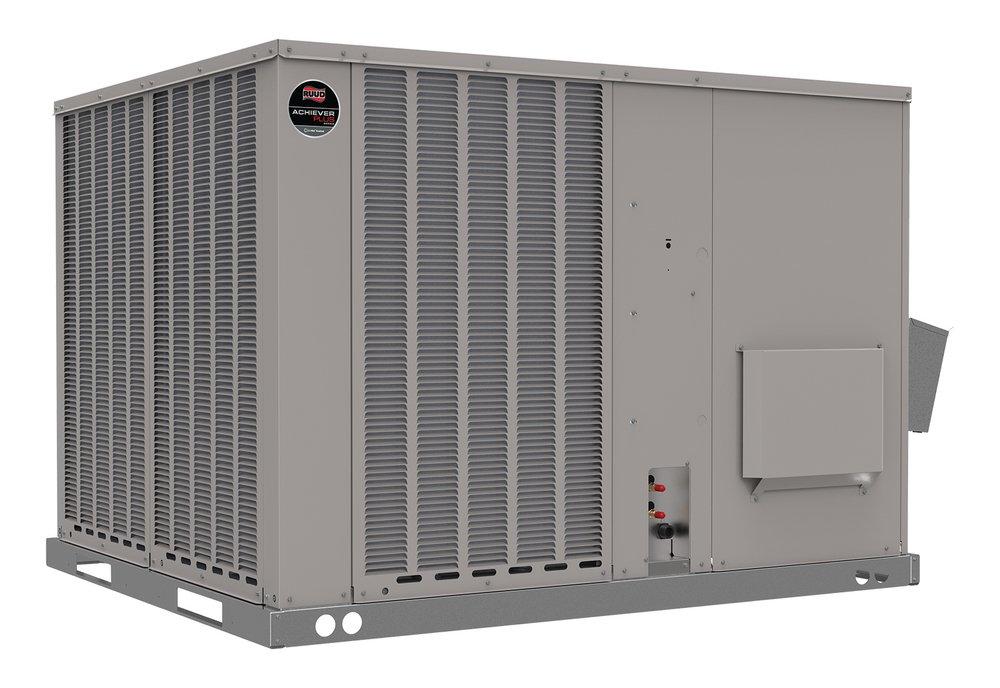

2 Ton - 15.2 SEER2 - Two-Stage Packaged Gas/Electric - 60k Btu/h Heat - R-454B - 208-230/1
Rheem
Endeavor® Line Classic Plus® Series 2 Ton - 15.2 SEER2 - Two-Stage Packaged Gas/Electric - 60k Btu/h Heat - R-454B - 208-230/1
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Rheem
Endeavor® Line Classic Plus® Series
2 Ton - 15.2 SEER2 - Two-Stage Packaged Gas/Electric - 60k Btu/h Heat - R-454B - 208-230/1
RGEAYC024AJV062CAAJA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Two-Stage Scroll Compressors: 67% and 100% capacity for better control and efficiency.
- PlusOne® Diagnostics: Bluetooth-enabled diagnostics via Rheem Contractor App.
- Bluetooth Commissioning: No DIP switch configuration needed.
- On-demand Dehumidification: Via EcoNet® thermostat.
- MicroChannel Coils: Lightweight, corrosion-resistant, and efficient.
- Constant Volume Motor: Variable speed for better humidity control and energy savings.
- Dedicated Heating Speeds: Maintains consistent performance.
- Thermal Expansion Valves: Standard on all models.
-
A2L Compatible
Specifications
- A2L Compatible:
- Yes
- AFUE:
- 81.00 %
- Application:
- Residential
- BTU:
- 24000
- BTU Cooling Rating:
- 22800 Btu/h
- BTU Heat Rating:
- 60000 Btu/h
- Blower Type:
- Direct Drive
- CEC Compliant:
- Not for Sale in CA
- Coil Type:
- Micro-channel
- Collection:
- Endeavor® Line Classic Plus® Series
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Convertible
- Decibel Rating (dB):
- 74 dB
- EER2:
- 11.5
- Factory Std. Refrigerant Charge:
- 47 oz
- Gas Connection Size:
- 1/2 in
- Gas Valve Stages:
- Two-Stage
- Heat Exchanger Type:
- Aluminized Steel
- Height:
- 35-15/16 in
- Horsepower:
- 1/6 hp;1 hp
- Ignition System:
- Direct Spark Ignition
- Length:
- 52-1/2 in
- Lock Rotor Amps (LRA):
- 65
- Maximum Overcurrent Protection (MOP):
- 35
- Minimum Circuit Ampacity (MCA):
- 24
- Number of Burners:
- 3
- Number of Compressors:
- 1
- Number of Condenser Fan Motors:
- 1
- Phase:
- Single Phase
- Power Source:
- Gas, Electric
- Rated Load Amps (RLA):
- 11.9
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- SEER2:
- 15.2
- Tonnage:
- 2 Ton
- UL Listed:
- Yes
- UPC:
- 662021755941
- Volts:
- 208/230V
- Weight:
- 408 lb
- Width:
- 47-1/2 in
