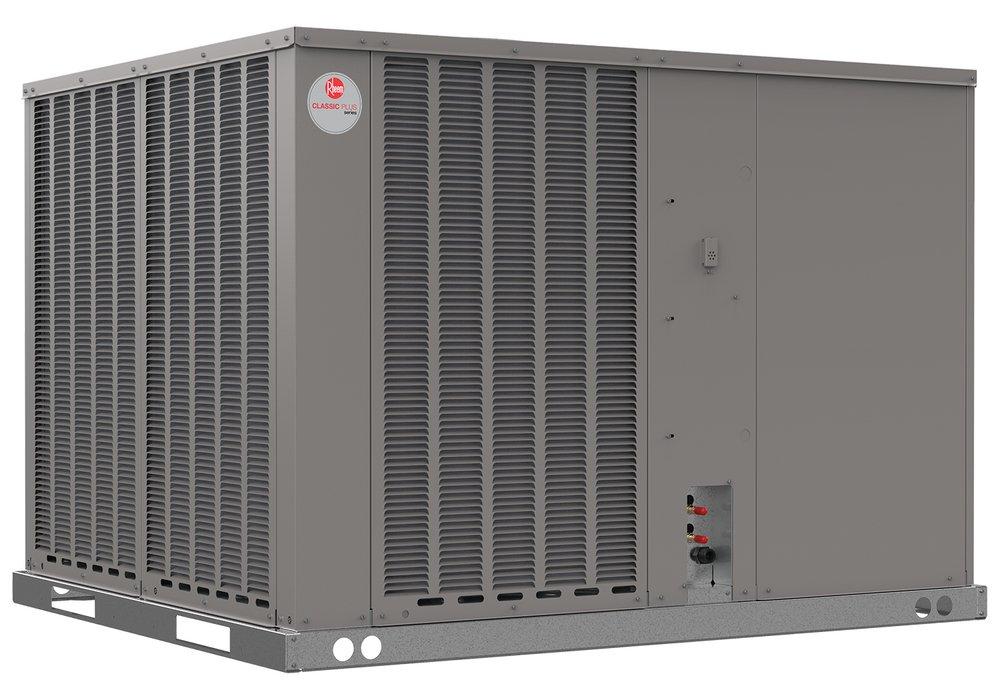

2 Ton - 15.5 SEER2/7.2 HSPF2 - Convertible Constant Torque Packaged Heat Pump - No Electric Heat - R-454B - 208-230/1
Rheem
Endeavor® Line Classic Plus® Series 2 Ton - 15.5 SEER2/7.2 HSPF2 - Convertible Constant Torque Packaged Heat Pump - No Electric Heat - R-454B - 208-230/1
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Rheem
Endeavor® Line Classic Plus® Series
2 Ton - 15.5 SEER2/7.2 HSPF2 - Convertible Constant Torque Packaged Heat Pump - No Electric Heat - R-454B - 208-230/1
RHPXYC024AJT000NA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Two-Stage Scroll Compressors: Quiet and efficient operation.
- “Two Stage Northern” Configuration (2-ton only): 40% higher heating capacity.
- MicroChannel Coils: Robust, lightweight, and corrosion-resistant.
- Two Thermal Expansion Valves: Standard for precise control.
- High and Low Pressure Control: Standard for protection and reliability.
- Filter Drier: Standard on all models.
- 100% Factory Run Tested.
- PlusOne® Refrigerant Detection System™: Integrated A2L sensor and mitigation board.
-
Green
-
A2L Compatible
Documents
Specifications
- A2L Compatible:
- Yes
- Application:
- Residential
- BTU:
- 24000
- BTU Cooling Rating:
- 22800 Btu/h
- BTU Heat Rating:
- 32000 Btu/h
- Blower Type:
- Direct Drive
- CEC Compliant:
- For Sale in CA
- Coil Type:
- Micro-channel
- Collection:
- Endeavor® Line Classic Plus® Series
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Convertible
- Decibel Rating (dB):
- 78 dB
- EER2:
- 11.5
- Energy Star Compliant:
- Yes
- Factory Std. Refrigerant Charge:
- 80.00 oz
- HSPF2:
- 7.2
- Height:
- 41 in
- Horsepower:
- 1/3 hp;1/2 hp
- Length:
- 57-1/2 in
- Lock Rotor Amps (LRA):
- 76
- Maximum Overcurrent Protection (MOP):
- 35
- Minimum Circuit Ampacity (MCA):
- 24
- Number of Condenser Fan Motors:
- 1
- Phase:
- Single Phase
- Power Source:
- Electric
- Rated Load Amps (RLA):
- 14.6
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- SEER2:
- 15.2
- Tonnage:
- 2 Ton
- UL Listed:
- Yes
- UPC:
- 662021746062
- Volts:
- 208/230V
- Weight:
- 439 lb
- Width:
- 47-1/2 in
