This product requires certification to purchase.

3 Ton - 15.2 SEER2/7.2 HSPF2 - Convertible Packaged Heat Pump - No Factory Heat - R-454B - 208-230/1

Rheem

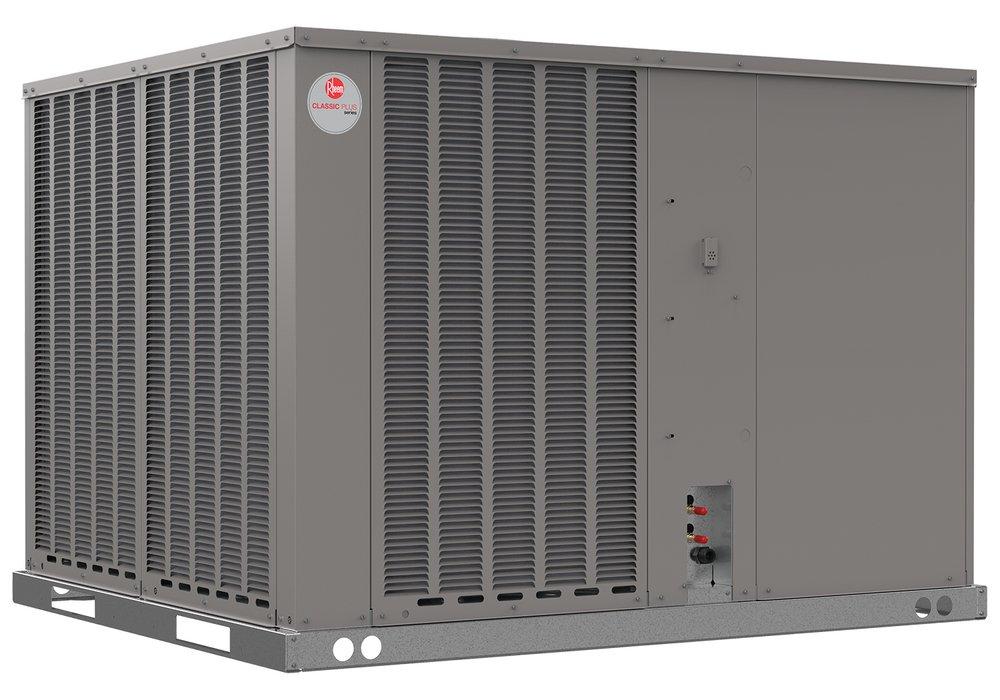

Endeavor® Line Classic Plus® Series 3 Ton - 15.2 SEER2/7.2 HSPF2 - Convertible Packaged Heat Pump - No Factory Heat - R-454B - 208-230/1

  • Fast #
  • Part #RHPXYC036AJT000NA
  • Item #11635352
  • Manufacturer Part #RHPXYC036AJT000NA
5 out of 5 Customer Rating
Brand image
3T PKG H/P M/T 208/230/1 R454B
3T PKG H/P M/T 208/230/1 R454B
3T PKG H/P M/T 208/230/1 R454B
3T PKG H/P M/T 208/230/1 R454B
Rheem

Endeavor® Line Classic Plus® Series 3 Ton - 15.2 SEER2/7.2 HSPF2 - Convertible Packaged Heat Pump - No Factory Heat - R-454B - 208-230/1

  • Fast #
  • Part #RHPXYC036AJT000NA
  • Item #11635352
  • Manufacturer Part #RHPXYC036AJT000NA
5 out of 5 Customer Rating
X Points

Call for Pricing
Call for Pricing

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • MicroChannel Evaporator and Condenser Coil: Delivers superior performance with a robust surface, a decreased refrigerant requirement and is lighter than conventional copper tube/aluminum fin coils. All-aluminum construction offers superior protection against formicary corrosion and aluminum tube rubbing damage. The design allows for easier and faster cleaning
  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Two-Stage Scroll Compressors on all models: Provides maximum efficiency and quiet operation
  • Two Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions
  • High and Low Pressure Control: Standard on all models for refrigerant component protection and reliability
  • Rugged Base Rail: Contributes to improved installation and handling
  • Easily Accessible Control Box and Slide-Out Blower Section: Allows for faster installability and serviceability
  • Side and Down Discharge Options Available: All models are shipped ready for horizontal applications
  • Double Sloped Evaporator Coil Drain Pan: Allows for complete water removal from the unit - contributing to improved indoor air quality
  • Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes;Supply and Return Air Openings: Feature a one-inch-tall flange to prevent water migration into the ductwork
  • Requires Certification

  • Green

  • A2L Compatible

Documents

SPECIFICATION

Specifications

A2L Compatible:
Yes
Application:
Residential
BTU:
36000
BTU Cooling Rating:
34200 Btu/h
BTU Heat Rating:
34200 Btu/h
Blower Type:
Direct Drive
CEC Compliant:
For Sale in CA
Coil Type:
Micro-channel
Collection:
Endeavor® Line Classic Plus® Series
Compressor Stages:
Two Stage
Compressor Type:
Scroll
Configuration:
Multi-Position
Decibel Rating (dB):
78 dB
EER2:
11.5
Factory Std. Refrigerant Charge:
80 oz
HSPF2:
7.2
Height:
41 in
Horsepower:
1/2 hp
Length:
57-1/2 in
Lock Rotor Amps (LRA):
76
Maximum Overcurrent Protection (MOP):
35
Minimum Circuit Ampacity (MCA):
24
Number of Condenser Fan Motors:
1
Phase:
Single Phase
Power Source:
Electric
Rated Load Amps (RLA):
14.6
Refrigerant:
R-454B
Refrigeration Control Type:
TXV
SEER2:
15.2
Tonnage:
3 Ton
UL Listed:
Yes
UPC:
662021745195
Volts:
208/230V
Weight:
439 lb
Width:
47-1/2 in
