4 Ton - 13.4 SEER2 - Two-Stage Low NOx Packaged Gas/Electric System - 80k Btu/h Gas Heat - R-454B - 208-230/1

Rheem

Endeavor® Line Classic® Series 4 Ton - 13.4 SEER2 - Two-Stage Low NOx Packaged Gas/Electric System - 80k Btu/h Gas Heat - R-454B - 208-230/1

  • Fast #
  • Part #RGEAYB048AJT08XNA
  • Item #11639710
  • Manufacturer Part #RGEAYB048AJT08XNA
4.3 out of 5 Customer Rating
Brand image

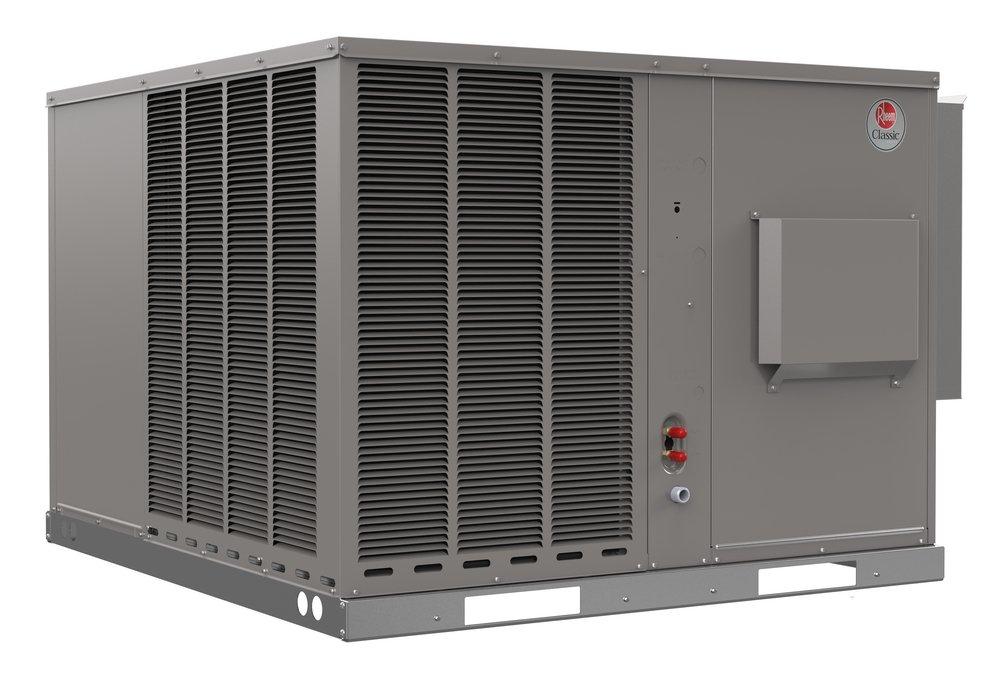

CCY 4T PKG G/E 208/1 80K NX R454B
CCY 4T PKG G/E 208/1 80K NX R454B
CCY 4T PKG G/E 208/1 80K NX R454B
CCY 4T PKG G/E 208/1 80K NX R454B
Rheem

Endeavor® Line Classic® Series 4 Ton - 13.4 SEER2 - Two-Stage Low NOx Packaged Gas/Electric System - 80k Btu/h Gas Heat - R-454B - 208-230/1

  • Fast #
  • Part #RGEAYB048AJT08XNA
  • Item #11639710
  • Manufacturer Part #RGEAYB048AJT08XNA
4.3 out of 5 Customer Rating
X Points

Call for Pricing
Call for Pricing

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Scroll Compressors on all models: Provides maximum efficiency and quiet operation.
  • Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions.
  • High Pressure Control: Standard on all models for refrigerant component protection and reliability.
  • Stainless Steel Heat Exchanger Option: Available factory installed for better corrosion resistance. This is standard on all ULN models.
  • PlusOne® Ignition System: Proven Direct Spark Ignition System (DSI) for reliability and longevity.
  • Rugged Base Rail: For improved installation and handling.
  • Easily Accessible Control Box, Furnace Compartment and Slide-Out Blower Section: Allows for installability and serviceability.
  • Side and Down Discharge Options Available: All models are shipped ready for horizontal applications.
  • Double Sloped Evaporator Coil Drain Pan: Allows for complete water removal from the unit - contributing to improved indoor air quality.;Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes.
  • Requires Certification

  • A2L Compatible

Documents

SPECIFICATION

Specifications

A2L Compatible:
Yes
AFUE:
81.00 %
Application:
Residential
BTU:
48000
BTU Cooling Rating:
45500 Btu/h
Blower Type:
Direct Drive
CEC Compliant:
For Sale in CA
Coil Type:
Micro-channel
Collection:
Endeavor® Line Classic® Series
Compressor Stages:
Two Stage
Compressor Type:
Scroll
Configuration:
Multi-Position
Decibel Rating (dB):
76 dB
EER2:
10.6
Energy Star Compliant:
No
Factory Std. Refrigerant Charge:
78.4 oz
Fuel Type:
Natural Gas
Height:
41 in
Horsepower:
1 hp
Length:
52-7/16 in
Lock Rotor Amps (LRA):
141
Maximum Overcurrent Protection (MOP):
50
Minimum Circuit Ampacity (MCA):
37
Number of Condenser Fan Motors:
1
Phase:
Single Phase
Power Source:
Electric, Gas
Rated Load Amps (RLA):
20.1
Refrigerant:
R-454B
Refrigeration Control Type:
TXV
SEER2:
13.4
Tonnage:
4 Ton
UL Listed:
Yes
UPC:
662021738326
Volts:
208/230V
Weight:
487 lb
Width:
47-1/2 in
