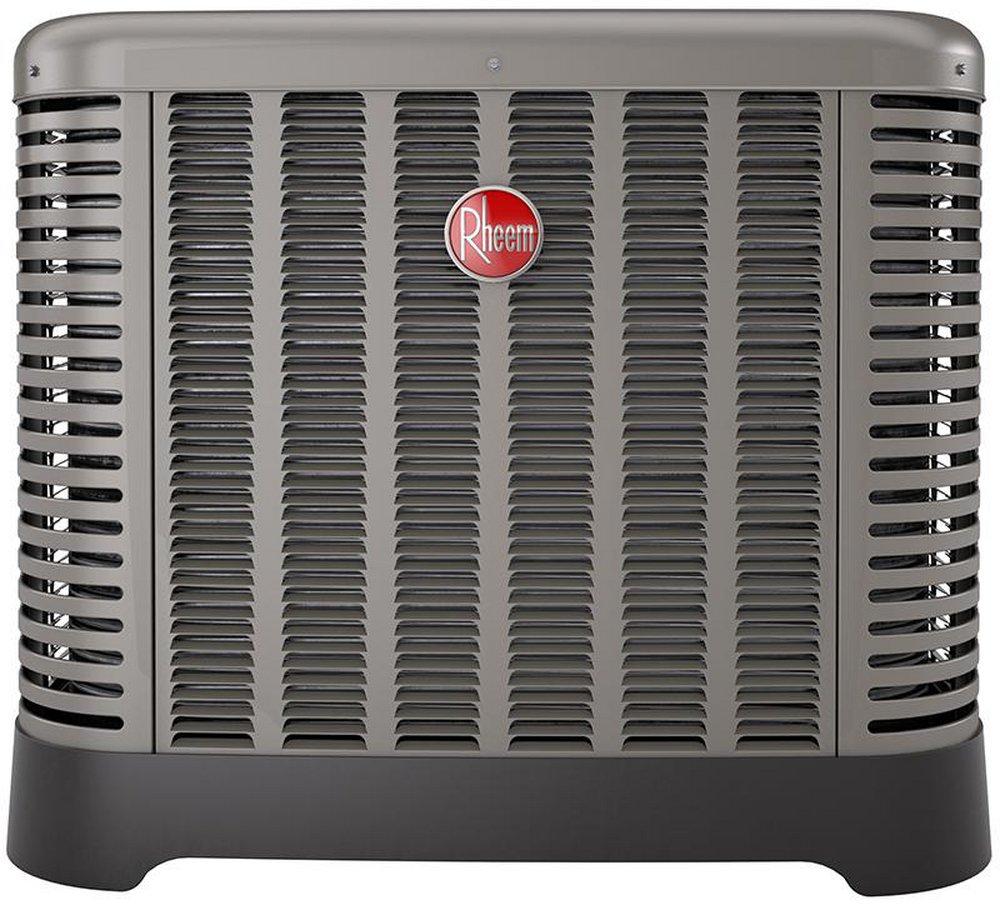

4 Ton - 14.3 SEER2 - Two-Stage iM Heat Pump - R-454B - 208/230/3
Rheem
Endeavor® Line Classic® Series 4 Ton - 14.3 SEER2 - Two-Stage iM Heat Pump - R-454B - 208/230/3
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Rheem
Endeavor® Line Classic® Series
4 Ton - 14.3 SEER2 - Two-Stage iM Heat Pump - R-454B - 208/230/3
RP14AY48AC2NA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
- Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
- PlusOne® Expanded Valve Space: 3 in. – 4 in. – 5 in. service valve space-provides a minimum working area of 27-square inches for easier access
- PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels-makes repairs easier and faster
-
A2L Compatible
Documents
Specifications
- A2L Compatible:
- Yes
- Application:
- Residential
- BTU:
- 48000
- BTU Cooling Rating:
- 45500 Btu/h
- BTU Heat Rating:
- 44000 Btu/h
- CEC Compliant:
- For Sale in CA
- CFM:
- 4096 ft3/min
- Coefficient of Performance (COP):
- 3.4
- Coil Type:
- Plate Fin
- Collection:
- Endeavor® Line Classic® Series
- Communicating:
- Non-Communicating
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Decibel Rating (dB):
- 74 dB
- Depth:
- 33-3/4 in
- EER2:
- 9.0
- Factory Std. Refrigerant Charge:
- 115 oz
- HSPF2:
- 7.5
- Height:
- 35 in
- Horsepower:
- 1/5 hp
- Liquid Line (OD):
- 3/8 in
- Lock Rotor Amps (LRA):
- 123
- Maximum Overcurrent Protection (MOP):
- 25
- Minimum Circuit Ampacity (MCA):
- 17
- Number of Condenser Fan Motors:
- 1
- Phase:
- Three Phase
- Power Source:
- Electric
- Rated Load Amps (RLA):
- 10.8
- Refrigerant:
- R-454B
- Refrigeration Control Type:
- TXV
- SEER2:
- 14.3
- Sound Blanket:
- No
- Suction Line (OD):
- 7/8 in
- Tonnage:
- 4 Ton
- UL Listed:
- Yes
- UPC:
- 662021694820
- Volts:
- 208/230V
- Weight:
- 236 lb
- Width:
- 33-3/4 in
