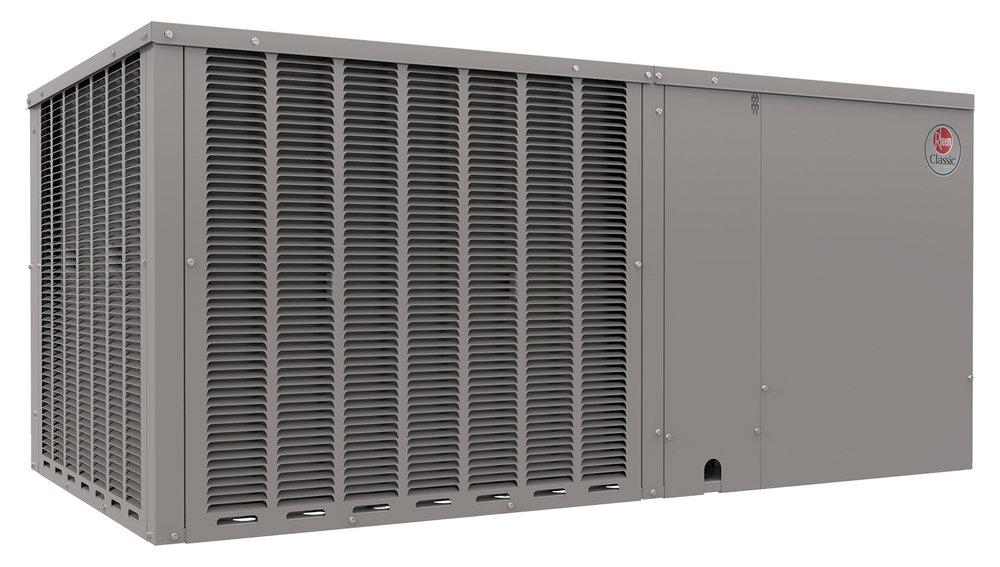

5 Ton - 13.4 SEER2 - Dedicated Horizontal - Packaged Heat Pump - No Electric Heat - R-454B - 208-230/1

Rheem

Endeavor® Line Classic® Series 5 Ton - 13.4 SEER2 - Dedicated Horizontal - Packaged Heat Pump - No Electric Heat - R-454B - 208-230/1

  • Fast #
  • Part #RHPBYB060AJT000NAU
  • Item #11639910
  • Manufacturer Part #RHPBYB060AJT000NAAUA
3.5 out of 5 Customer Rating
Brand image
CCN 5T HORZ PKG H/P 14 R454B TIN
CCN 5T HORZ PKG H/P 14 R454B TIN
CCN 5T HORZ PKG H/P 14 R454B TIN
CCN 5T HORZ PKG H/P 14 R454B TIN
Rheem

Endeavor® Line Classic® Series 5 Ton - 13.4 SEER2 - Dedicated Horizontal - Packaged Heat Pump - No Electric Heat - R-454B - 208-230/1

  • Fast #
  • Part #RHPBYB060AJT000NAU
  • Item #11639910
  • Manufacturer Part #RHPBYB060AJT000NAAUA
3.5 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Two Thermal Expansion Valves: One for cooling, one for heating and are standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions
  • High and Low Pressure Controls: Standard on all models for refrigerant component protection and reliability
  • Tinned Indoor Coil: Available as factory-installed option for better formicary corrosion resistance
  • Two Round 14" Duct Collars: Included with each unit. The collar is crimped around the leading edge, making it easier to install duct onto the collar. A metal bead around the circumference prevents the attached ducting form sliding off after installation
  • Easy High and Low Refrigerant Pressure Measurement: Two gauge ports located inside the control box allow for ease and accuracy
  • Closed-Cell Insulation: Used on the base of the unit, to prevent moisture from being absorbed and helps reduce mold content
  • Removable Sloped Drain Pan: Accessible through a small side panel. Helps to ensure indoor air quality (IAQ) throughout the life of the unit
  • Requires Certification

  • A2L Compatible

Documents

SPECIFICATION

Specifications

A2L Compatible:
Yes
Application:
Residential
BTU:
60000
BTU Cooling Rating:
57000 Btu/h
BTU Heat Rating:
56500 Btu/h
Blower Type:
Direct Drive
CEC Compliant:
Not for Sale in CA
Coil Type:
Micro-channel
Collection:
Endeavor® Line Classic® Series
Compressor Stages:
Single Stage
Compressor Type:
Scroll
Configuration:
Horizontal
Decibel Rating (dB):
79 dB
EER2:
10.6
EER2 Range:
10.6 - 11.1
Factory Std. Refrigerant Charge:
206.2
HSPF2:
6.7
HSPF2 Range:
6.7 - 7.4
Height:
37-1/8
Horsepower:
1 hp
Length:
33
Lock Rotor Amps (LRA):
148
Maximum Overcurrent Protection (MOP):
60
Minimum Circuit Ampacity (MCA):
40
Number of Condenser Fan Motors:
1
Phase:
Single Phase
Power Source:
Electric
Rated Load Amps (RLA):
22.6
Refrigerant:
R-454B
Refrigeration Control Type:
TXV
SEER2:
13.4
SEER2 Range:
13.4 - 13.7
Tonnage:
5 Ton
Type:
RHPBYB060AJT000NAU
UL Listed:
Yes
UPC:
662021731808
Volts:
208/230V
Weight:
429
Width:
59
