This product requires certification to purchase.

3 Ton - 19.0 SEER2 - EcoNet® Enabled - Inverter Driven Variable Speed iM Air Conditioner - R-454B - 208/230/1

Rheem

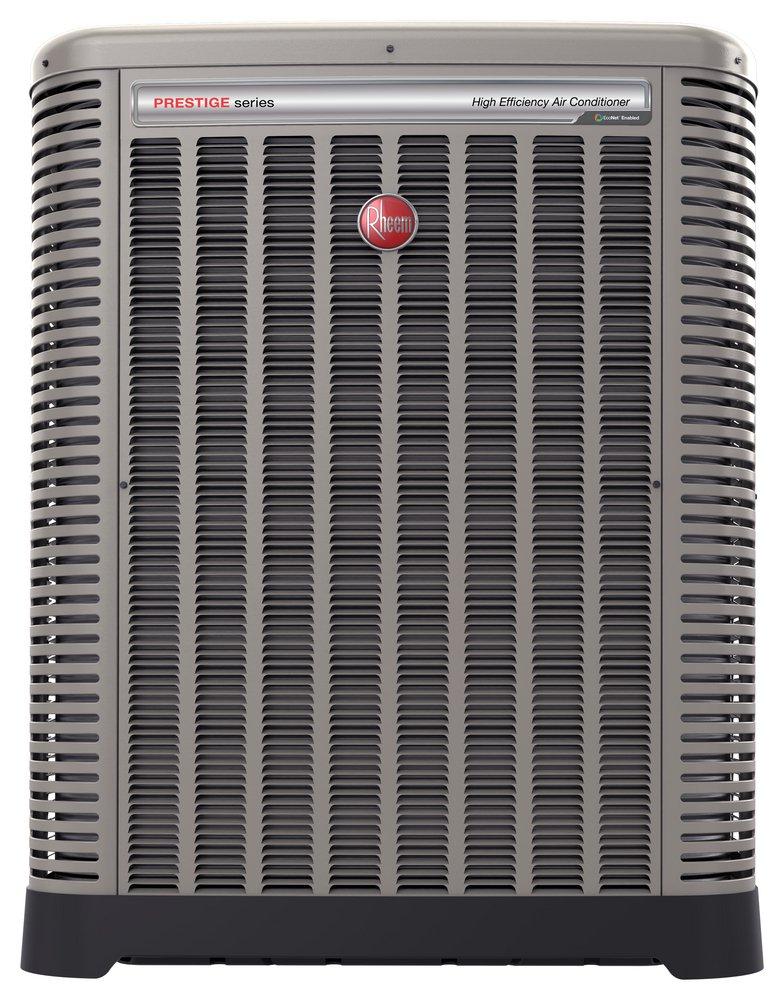

Endeavor® Line Prestige® Series 3 Ton - 19.0 SEER2 - EcoNet® Enabled - Inverter Driven Variable Speed iM Air Conditioner - R-454B - 208/230/1

  • Fast #
  • Part #RA19AY36AJVCA
  • Item #11613010
  • Manufacturer Part #RA19AY36AJVCA
4.8 out of 5 Customer Rating
Brand image
3T 19 SEER2 A/C VS COMM R454B
3T 19 SEER2 A/C VS COMM R454B
3T 19 SEER2 A/C VS COMM R454B
3T 19 SEER2 A/C VS COMM R454B
Rheem

Endeavor® Line Prestige® Series 3 Ton - 19.0 SEER2 - EcoNet® Enabled - Inverter Driven Variable Speed iM Air Conditioner - R-454B - 208/230/1

  • Fast #
  • Part #RA19AY36AJVCA
  • Item #11613010
  • Manufacturer Part #RA19AY36AJVCA
4.8 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.

Product Details

Product Details

  • A2L Compatible
  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Factory charged with R-454B refrigerant
  • Wired factory-installed refrigerant leak detection system
  • Scroll compressors with internal line break overload and high pressure protection
  • All models have two compressor stages
  • Field convertible airflow – vertical downflow or horizontal sideflow
  • Forkable base rails for easy handling and lifting
  • Two-stage gas heat input with direct spark ignition system, solid state furnace controls, and optimized induced draft combustion
  • Patented PlusOne® SmartShield™ Interlaced MicroChannel Coil Design
  • Requires Certification

  • Green

  • A2L Compatible

Documents

SPECIFICATION

Specifications

A2L Compatible:
Yes
BTU:
36000
BTU Cooling Rating:
34200 Btu/h
CEC Compliant:
For Sale in CA
Coil Type:
Plate Fin
Collection:
Endeavor® Line Prestige® Series
Communicating:
Communicating
Compressor Stages:
Variable Speed
Compressor Type:
Scroll
Decibel Rating (dB):
72 dB
EER2:
12.0
Energy Star Compliant:
Yes
Factory Std. Refrigerant Charge:
200 oz
Height:
51-17/100 in
Horsepower:
1/2 hp
Length:
36-13/100 in
Line Set Connection Type:
Soldered
Liquid Line (OD):
3/8 in
Lock Rotor Amps (LRA):
50
Maximum Overcurrent Protection (MOP):
35
Minimum Circuit Ampacity (MCA):
20
Number of Condenser Fan Motors:
1
Phase:
Single Phase
Power Source:
Electric
Rated Load Amps (RLA):
16
Refrigerant:
R-454B
SEER2:
19.0
Suction Line (OD):
3/4 in
Tonnage:
3 Ton
UL Listed:
Yes
UPC:
662021724831
Volts:
208/230V
Weight:
250 lb
Width:
36-13/100 in
