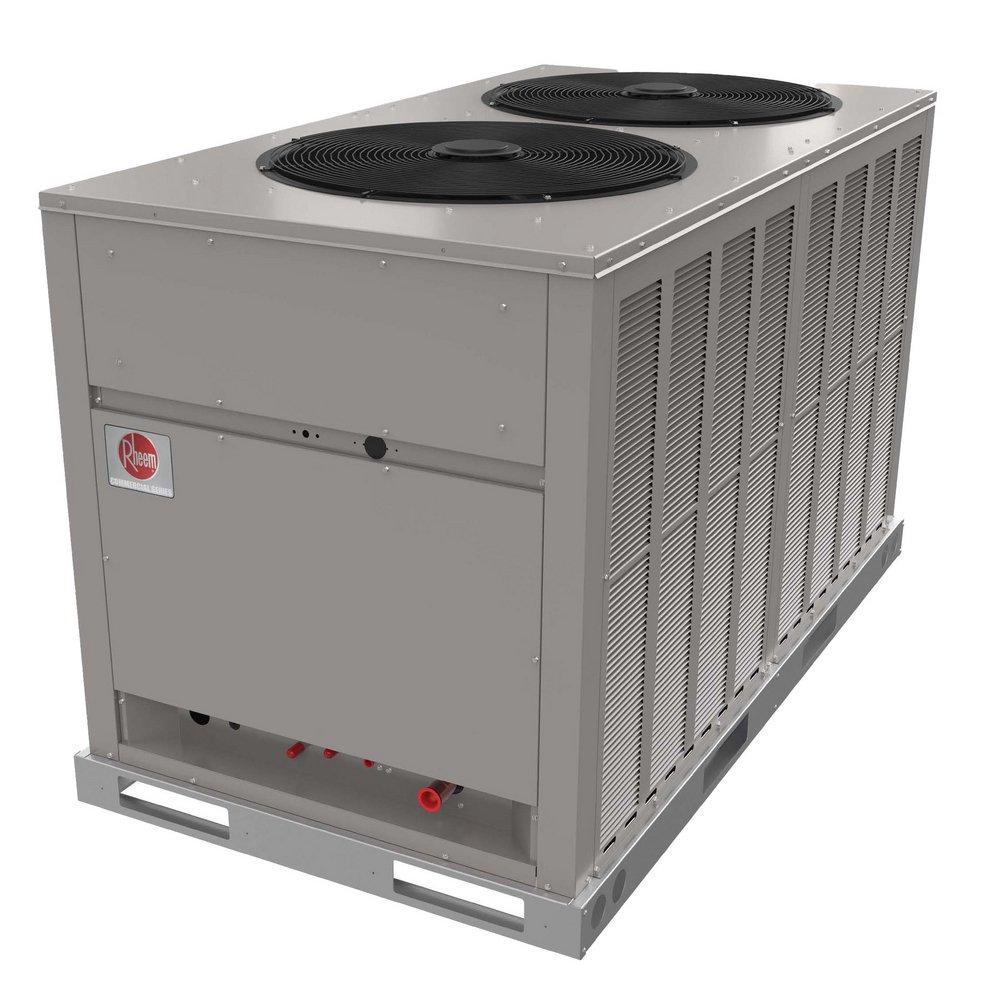

10 Ton - Commercial Split Air Conditioner - 208/230/3 - R-454B
Rheem
RACY Classic 10 Ton - Commercial Split Air Conditioner - 208/230/3 - R-454B
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Rheem
RACY Classic
10 Ton - Commercial Split Air Conditioner - 208/230/3 - R-454B
RACY2120CAZ
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- The RACY Series commercial split models are engineered for reliable operation and consistent cooling performance
- Designed for easy maintenance and serviceability, all access panels can be opened or removed without affecting the structural strength of the unit, facilitating routine maintenance tasks such as coil cleaning or component inspection
- Stamped louvered panels offer 100% protection for the condenser coil, adding to unit performance and reliability
-
A2L Compatible
Documents
Specifications
- A2L Compatible:
- Yes
- BTU Cooling Rating:
- 120000 Btu/h
- Coil Type:
- Louvered
- Collection:
- RACY Classic
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Depth:
- 38-3/8 in
- EER:
- 11.2
- Height:
- 44-3/4 in
- IEER:
- 14.8
- Liquid Line (OD):
- 5/8 in
- Lock Rotor Amps (LRA):
- 255
- Max CFM:
- 11400 cfm
- Max Fuse Size:
- 70
- Minimum Circuit Ampacity (MCA):
- 44
- Phase:
- Three Phase
- Rated Load Amps (RLA):
- 26.5
- Refrigerant:
- R-454B
- Tonnage:
- 10 Ton
- UL Listed:
- Yes
- UPC:
- 662021686337
- Volts:
- 208/230V
- Watts:
- 35.2 kW
- Weight:
- 256 kg
- Width:
- 73-7/8 in
