4 Ton - 13 SEER - Air Conditioner - 208/230V - Single Phase - R-410A

Rheem

RANL Series 4 Ton - 13 SEER - Air Conditioner - 208/230V - Single Phase - R-410A

  • Fast #
  • Part #RANL049JAZ
  • Item #3710667
  • Manufacturer Part #RANL-049JAZ
3.7 out of 5 Customer Rating
Brand image

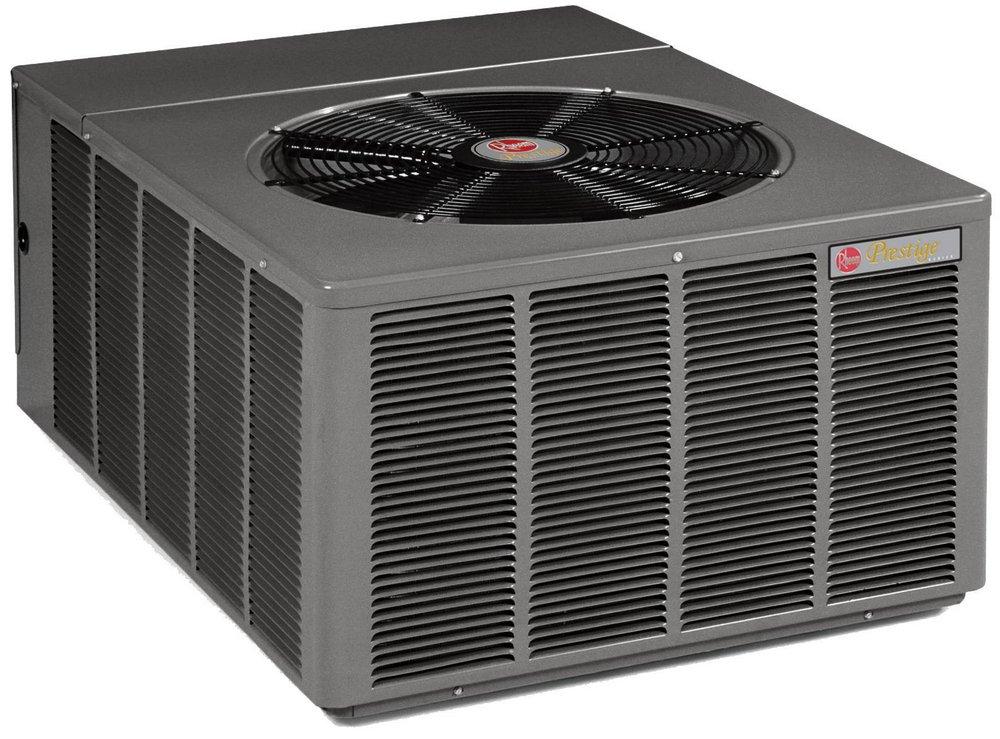

Rheem 13 SEER R-410A Single Stage Air Conditioner Condenser
Rheem 13 SEER R-410A Single Stage Air Conditioner Condenser
Rheem

RANL Series 4 Ton - 13 SEER - Air Conditioner - 208/230V - Single Phase - R-410A

  • Fast #
  • Part #RANL049JAZ
  • Item #3710667
  • Manufacturer Part #RANL-049JAZ
3.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Attractive, louvered wrap-around jacket protects the coil from yard hazards and weather extremes
  • Top grille is steel reinforced for extra strength
  • Cabinet is powder painted for all-weather protection
  • Air is discharged upward away from bushes and shrubs
  • The discharge pattern of the top grille provides minimum air restriction
  • Combination grille and motor mount secures the motor to the underside of the discharge grille
  • All controls are accessible by removing 1 service panel
  • Single speed 8-pole fan motor designed for low speed, quiet, energy-saving operation
  • Conditional parts warranty for 10 years
  • Requires Certification

Specifications

A2L Compatible:
No
AMP:
1.2, 21.8, 23, 117
BTU:
49000
BTU Cooling Rating:
49000 Btu/h
CEC Compliant:
For Sale in CA
Collection:
RANL Series
Communicating:
Non-Communicating
Compressor Type:
Scroll
Decibel Rating (dB):
76 dB
Depth:
44-3/8 in
EER:
11.0
ETL Listed:
No
Height:
29 in
Liquid Line (OD):
3/8 in
MBH:
49
Max CFM:
3500 cfm
Max Fuse Size:
50
Phase:
Single Phase
Power Source:
Electric
Refrigerant:
R-410A
SEER:
13.0
Sound Blanket:
No
Suction Line (OD):
7/8 in
Tonnage:
4 Ton
UL Listed:
Yes
UPC:
662021266560
Volts:
208/230V
Weight:
214 lb
Width:
31-1/2 in
