2 Ton - Front Return Air Handler - PSC - w/ Breaker - 10 kW Factory Heat - Float Switch

Rheem

RF1P Series 2 Ton - Front Return Air Handler - PSC - w/ Breaker - 10 kW Factory Heat - Float Switch

  • Fast #
  • Part #RF1P2421SPNJB10417
  • Item #7184620
  • Manufacturer Part #F1P2421SPANJAB10417
4.5 out of 5 Customer Rating
Brand image

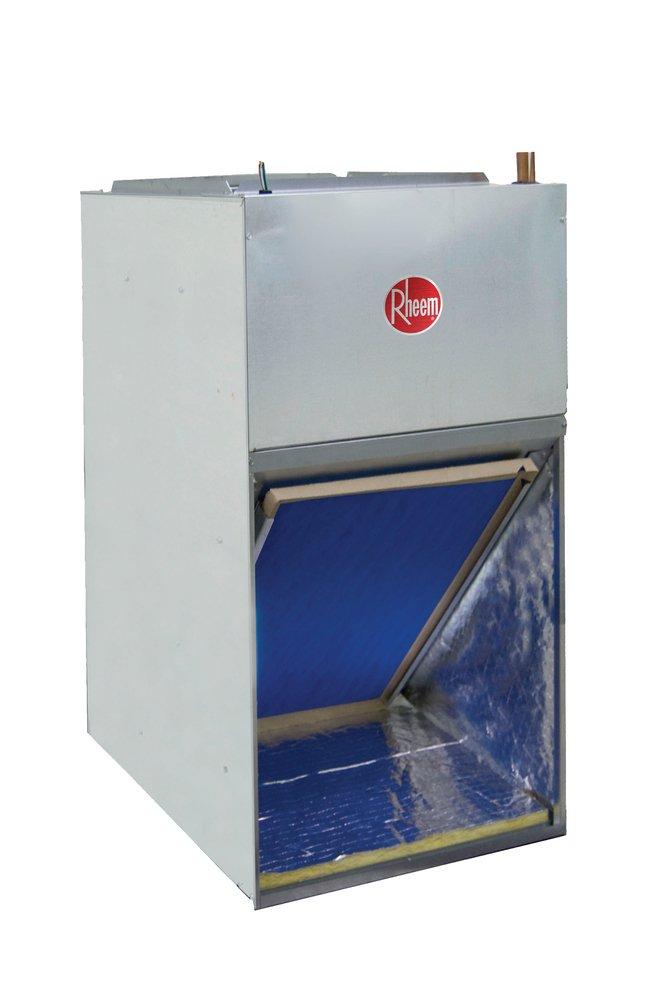

Rheem Single-Stage Upflow and Vertical 1/5 hp Air Handler
Rheem Single-Stage Upflow and Vertical 1/5 hp Air Handler
Rheem

RF1P Series 2 Ton - Front Return Air Handler - PSC - w/ Breaker - 10 kW Factory Heat - Float Switch

  • Fast #
  • Part #RF1P2421SPNJB10417
  • Item #7184620
  • Manufacturer Part #F1P2421SPANJAB10417
4.5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Flow check piston for cooling or heat pump operation
  • Wall-hanging brackets
  • Built-in filter rack
  • Molex plug connections for field installed heater kits
  • Dual voltage direct drive blower with multi-speed motor
  • Thermoplastic drain pan with bottom primary and secondary connections
  • Optional decorative grill for front return applications
  • Optional factory installed condensate float switch which shuts off the outdoor unit in event the condensate pan becomes clogged
  • Cabinet air leakage less than 2% at 1 inch H2O when tested in accordance with ASHRAE standard 193
  • Requires Certification

Specifications

A2L Compatible:
No
AMP:
1.5
BTU:
24000
Blower Type:
Direct Drive
CFM:
800 ft3/min
Coil Type:
Aluminum Fin
Collection:
RF1P Series
Communicating:
Non-Communicating
Configuration:
Upflow, Vertical
Depth:
17 in
Energy Star Compliant:
No
Fan Speeds:
2
Height:
36 in
Horsepower:
1/5 hp
MBH:
24
Material:
Steel
Max CFM:
900 cfm
Phase:
Single Phase
Power Source:
Electric
Refrigerant:
R-410A
Refrigeration Control Type:
Piston
SEER:
13.0
Stages:
Single
Tonnage:
2 Ton
UL Listed:
Yes
UPC:
662021379734
Volts:
208/240V
Watts:
10 kW
Weight:
80 lb
Width:
21-1/2 in
