2 Ton - Front Return Air Handler - Constant Torque - w/ Breaker - 3 kW Factory Heat - Float Switch

Rheem

RF1T Series 2 Ton - Front Return Air Handler - Constant Torque - w/ Breaker - 3 kW Factory Heat - Float Switch

  • Fast #
  • Part #RF1T2421MTNJB03417
  • Item #7184642
  • Manufacturer Part #RF1T2421MTANJAB03417
5 out of 5 Customer Rating
Brand image

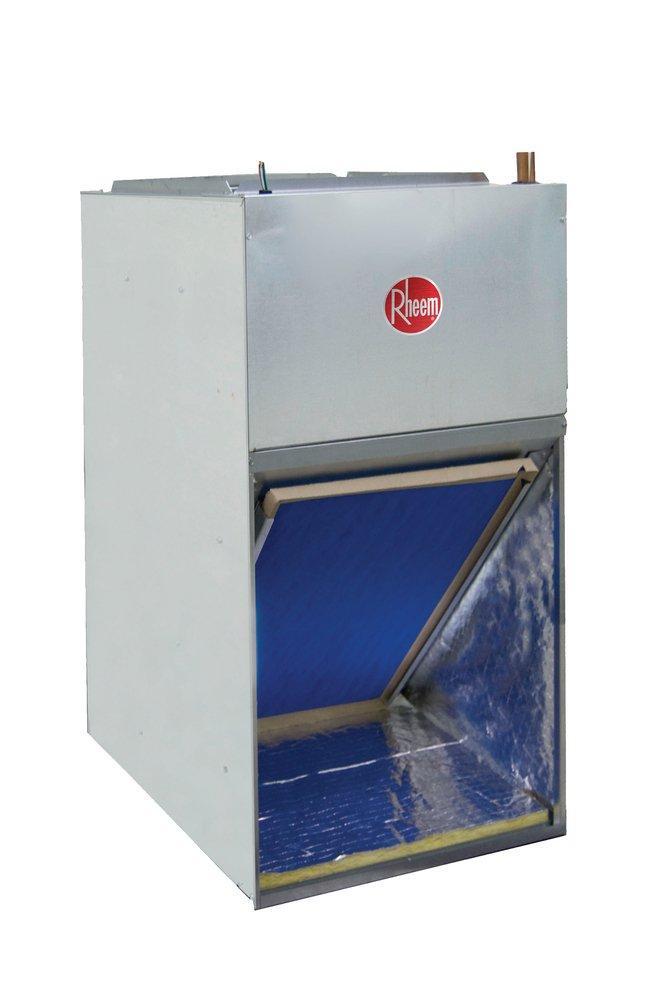

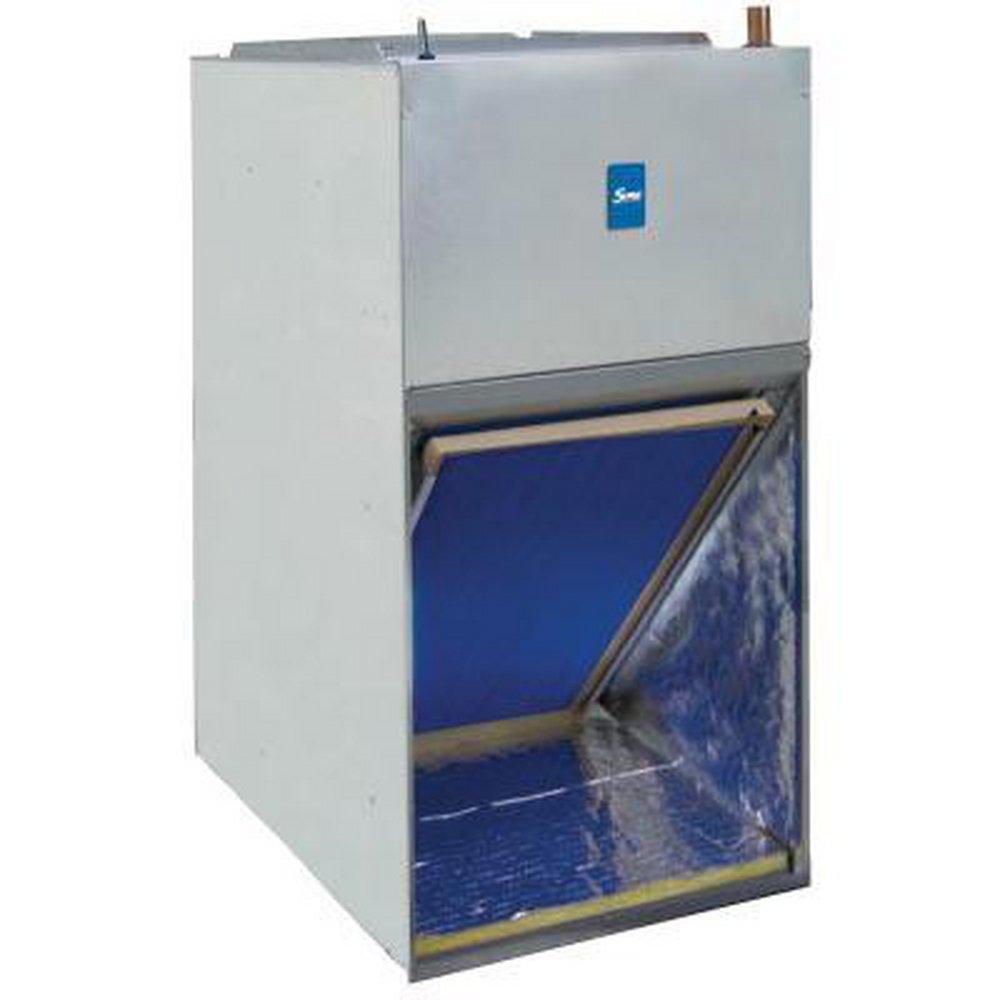

Rheem Single-Stage Upflow and Vertical 1/5 hp Air Handler
Rheem Single-Stage Upflow and Vertical 1/5 hp Air Handler
Rheem Single-Stage Upflow and Vertical 1/5 hp Air Handler
Rheem Single-Stage Upflow and Vertical 1/5 hp Air Handler
Rheem

RF1T Series 2 Ton - Front Return Air Handler - Constant Torque - w/ Breaker - 3 kW Factory Heat - Float Switch

  • Fast #
  • Part #RF1T2421MTNJB03417
  • Item #7184642
  • Manufacturer Part #RF1T2421MTANJAB03417
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Abilene, TX
    0 nearby
    Pick Up  Not Available
    Not available in TX
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in TX

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Front or bottom return with aluminum tube and fin coil
  • Flow check piston for cooling or heat pump operation
  • Wall-hanging brackets
  • Built-in filter rack
  • AHRI certified
  • Molex plug connections for field installed heater kits
  • Dual voltage direct drive blower with multi-speed motor
  • Thermoplastic drain pan with bottom primary and secondary connections
  • Cabinet air leakage less than 2% at 1 in-WG when tested in accordance with ASHRAE standard 193
  • Requires Certification

Specifications

A2L Compatible:
No
AMP:
1.6
BTU:
24000
Blower Type:
Direct Drive
CFM:
800
Coil Type:
Aluminum Fin
Collection:
RF1T Series
Communicating:
Non-Communicating
Configuration:
Upflow, Vertical
Depth:
17
Energy Star Compliant:
No
Fan Speeds:
4
Height:
36
Horsepower:
1/3 hp
MBH:
24
Material:
Aluminum, Steel
Max CFM:
800
Phase:
Single Phase
Power Source:
Electric
Refrigerant:
R-410A
Refrigeration Control Type:
TEV
SEER:
14.5
Stages:
Single
Tonnage:
2 Ton
UL Listed:
Yes
UPC:
662021379802
Volts:
208/240V
Watts:
3
Weight:
95
Width:
21-1/2
