3 Ton - Multi-Position/Convertible - Variable Speed - Air Handler

Rheem

RH1V Series 3 Ton - Multi-Position/Convertible - Variable Speed - Air Handler

  • Fast #
  • Part #RH1V3621MTANJA
  • Item #5048833
  • Manufacturer Part #RH1V3621MTANJA
4.8 out of 5 Customer Rating
Brand image

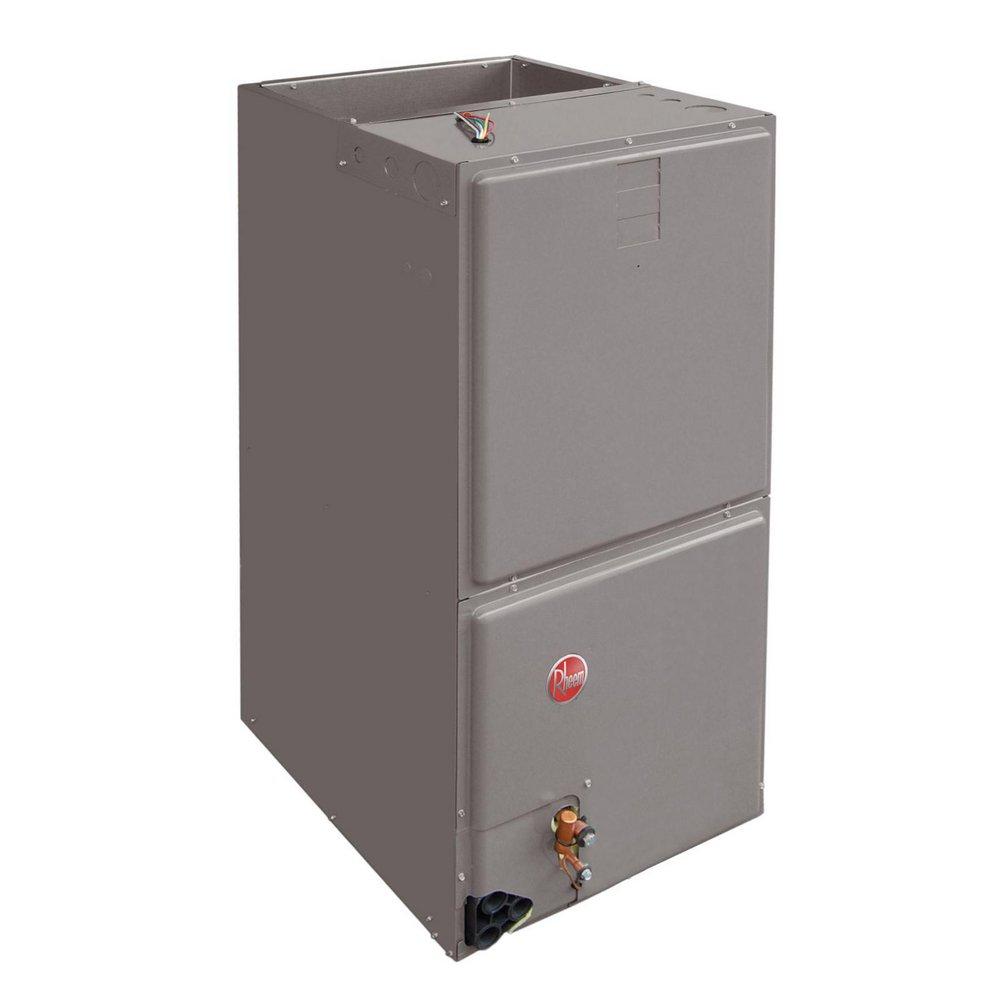

Rheem Single-Stage Downflow, Horizontal Left, Horizontal Right and Upflow 3/4 hp Air Handler
Rheem Single-Stage Downflow, Horizontal Left, Horizontal Right and Upflow 3/4 hp Air Handler
Rheem

RH1V Series 3 Ton - Multi-Position/Convertible - Variable Speed - Air Handler

  • Fast #
  • Part #RH1V3621MTANJA
  • Item #5048833
  • Manufacturer Part #RH1V3621MTANJA
4.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
Looking for compatible parts?

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Includes an energy efficient ECM® motor, which in most applications, enhances the SEER rating of the outdoor unit, it also slowly ramps its speed up for quiet operation and enhanced customer satisfaction
  • Versatile 4-way convertible design for up flow, down flow, horizontal left and horizontal right applications
  • Nominal airflow up to 1 in external static pressure
  • Factory installed indoor coil
  • Sturdy cabinet construction with 1 in (25.4 mm) of foil faced insulation for excellent sound and insulating characteristics
  • Field installed auxiliary electric heater kits provide exact heat for indoor comfort, kits include circuit breakers which meet UL and cUL requirements for service disconnect
  • Dip switch settings for selectable, customized cooling airflow over a wide variety of applications
  • On demand dehumidification terminal that adjusts airflow to help control humidity for unsurpassed comfort in cooling mode
  • External filter required
  • Requires Certification

Specifications

A2L Compatible:
No
AMP:
15, 9
BTU:
36000
BTU Cooling Rating:
36000 Btu/h
Blower Type:
ECM
CFM:
1200
Coil Type:
Aluminum Fin
Collection:
RH1V Series
Communicating:
Non-Communicating
Configuration:
Downflow, Horizontal Left, Horizontal Right, Upflow
Depth:
21-11/16
ETL Listed:
No
Fan Speeds:
2
Height:
50-1/2
Horsepower:
3/4 hp
Liquid Line (OD):
3/8
MBH:
36
Material:
Aluminum
Max CFM:
1200
Phase:
Single Phase
Power Source:
Electric
Refrigerant:
R-410A
Refrigeration Control Type:
TEV
SEER:
16.0
Stages:
Single
Suction Line (OD):
7/8
Tonnage:
3 Ton
UL Listed:
No
UPC:
662021359620
Volts:
208/240V
Weight:
126
Width:
21
