10 Ton Two Stage Commercial Packaged Heat Pump
Ruud

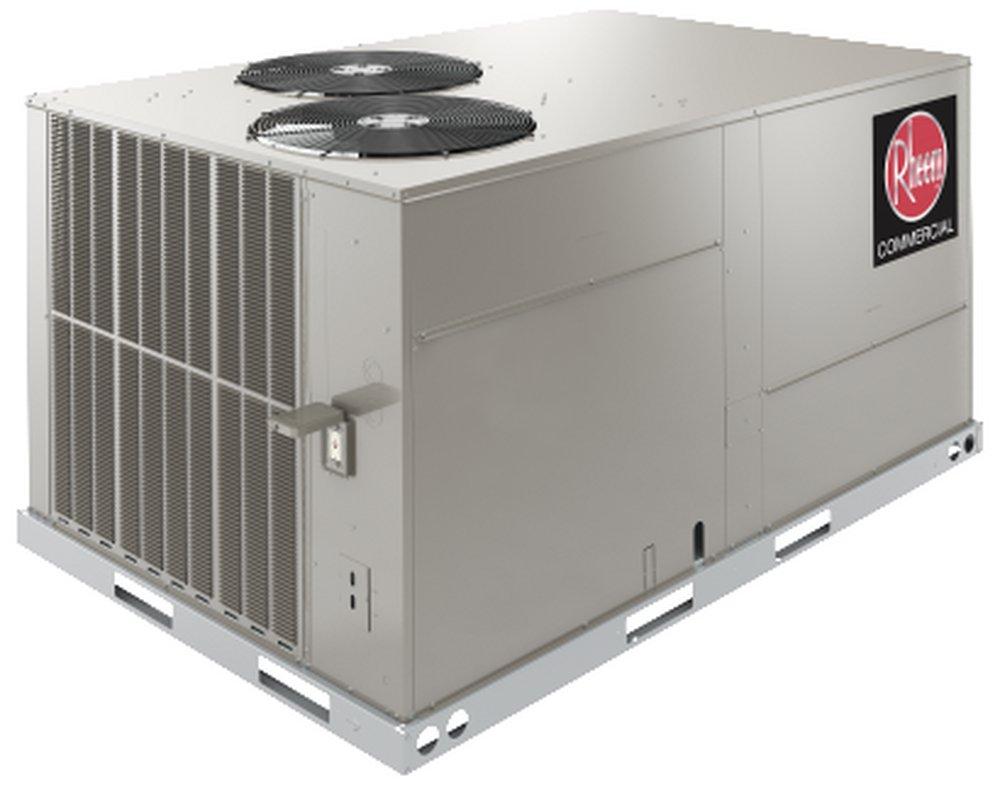

Renaissance™ 10 Ton Two Stage Commercial Packaged Heat Pump
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Ruud
Renaissance™
10 Ton Two Stage Commercial Packaged Heat Pump
RHPDZT120ADG000ABAA0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Factory charged with R-410A HFC refrigerant
- Wired and run tested
- Scroll compressors with internal line break overload and high pressure protection
- Models RHPDZS and RHPDZT have two-stage compressor
- Convertible airflow – Vertical down flow or horizontal side flow
- Fork able base rails for easy handling and lifting
- Cooling operation up to 125°F ambient
- Microchannel evaporator and condenser coil
- Overflow condensate sensor
Documents
Specifications
- A2L Compatible:
- No
- AMP:
- 27
- Application:
- Commercial
- BTU:
- 120000
- BTU Cooling Rating:
- 119000 Btu/h
- Blower Type:
- Variable Speed
- CFM:
- 4000 ft3/min
- Coil Type:
- Louvered
- Collection:
- Renaissance™
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Horizontal, Vertical
- Decibel Rating (dB):
- 88 dB
- Depth:
- 59-1/2 in
- EER:
- 11.0
- Height:
- 50 in
- Horsepower:
- 1/2 hp
- MBH:
- 120
- Phase:
- Three Phase
- Power Source:
- Electric
- RPM:
- 1075
- Refrigerant:
- R-410A
- Tonnage:
- 10 Ton
- UL Listed:
- Yes
- UPC:
- 662021512964
- Volts:
- 460V
- Watts:
- 10.13 kW
- Weight:
- 873 lb
- Width:
- 90-1/8 in
