3 Ton - Outdoor - Multi-Position - Air Handler
Samsung

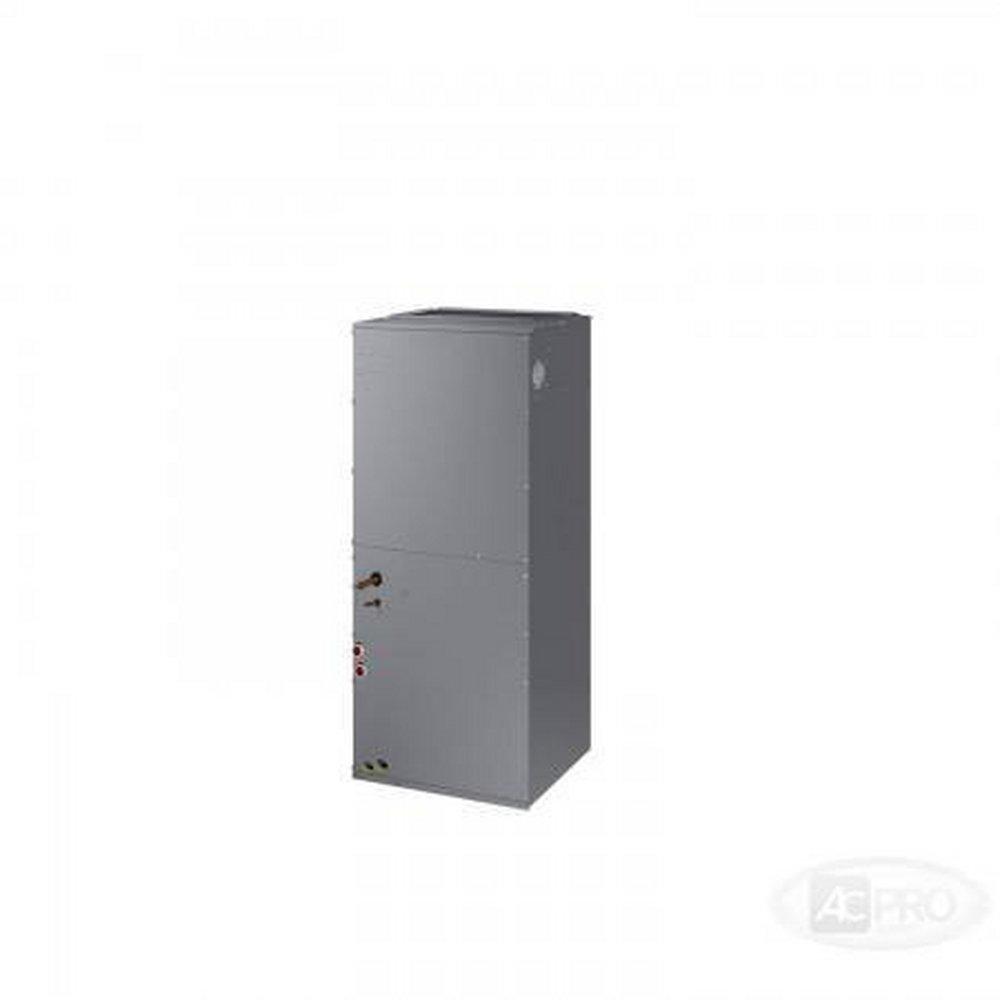

3 Ton - Outdoor - Multi-Position - Air Handler
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Samsung
3 Ton - Outdoor - Multi-Position - Air Handler
AC036KNZDCH/AA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Auto-restart after power loss
- The indoor unit shall be capable of being field convertible to downflow configuration with optional downflow conversion kit
- The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit
- The indoor and outdoor units shall have a removable EEPROM that stores system programming information, unit name and other data
- The outdoor unit shall have a night time quiet mode option to reduce operating sound during the night
- The pipe connections at the outdoor unit shall be internal allowing pipes to inter the chassis through the front, right side, bottom or back
- Air handler has an air leakage of no more than 2% of the design airflow rate when tested in accordance with ASHRAE 193
- The outdoor unit shall be galvanized steel with a baked-on powder-coated finish for durability
- The indoor unit shall be constructed of insulated, powder coated, galvanized steel
Specifications
- A2L Compatible:
- No
- AMP:
- 26.4
- BTU:
- 36000
- BTU Cooling Rating:
- 36000 Btu/h
- BTU Heat Rating:
- 40000 Btu/h
- CFM:
- 1165 ft3/min
- Configuration:
- Multi-Position
- Depth:
- 21 in
- ETL Listed:
- Yes
- Energy Star Compliant:
- No
- Fan Speeds:
- 5
- Height:
- 48 in
- Horsepower:
- 1/2 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 36
- Material:
- Steel
- Max CFM:
- 1165 cfm
- Phase:
- Single Phase
- Power Source:
- Electric
- Proposition 65:
- WARNING: Cancer and Reproductive harm - www.P65Warnings.ca.gov
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- EEV
- SEER:
- 19.0
- Suction Line (OD):
- 5/8 in
- Tonnage:
- 3 Ton
- UL Listed:
- Yes
- UPC:
- 887276160429
- Volts:
- 208/230V
- Weight:
- 123.5 lb
- Width:
- 21 in
