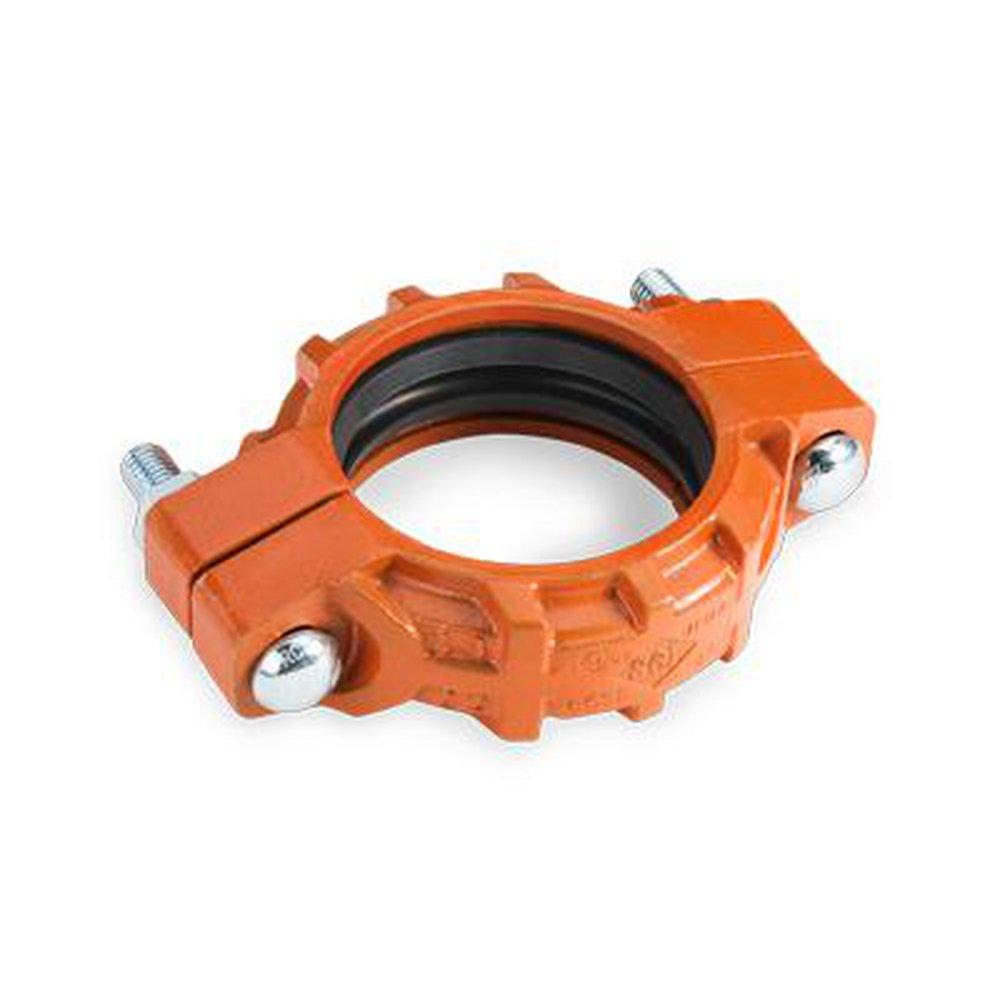

10 in. Grooved Straight Flexible Coupling with Orange Painted Housing EPDM C-Gasket
SCI
Fig 65LF 10 in. Grooved Straight Flexible Coupling with Orange Painted Housing EPDM C-Gasket
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
SCI
Fig 65LF
10 in. Grooved Straight Flexible Coupling with Orange Painted Housing EPDM C-Gasket
4327001020
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Maximum working pressure depending on coupling size and schedule of pipe: 1" to 6" - 1000 psi (68.9 bar), 8" to 12" - 800 psi (55.1 bar), 14" to 20" - 300 psi (20.6 bar), 24" - 250 psi (17.2 bar)
- UL Listed & FM Approved – 1" thru 12"
- All housings, gaskets and bolts identified by SCI logo
Documents
Specifications
- ASTM:
- ASTM A-153, ASTM A-536
- AWWA:
- AWWA C-606
- CSA Certified:
- No
- Collection:
- Fig 65LF
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- FM Approved:
- Yes
- Fitting Size 1:
- 10 in
- Fitting Size 2:
- 10 in
- Fitting Sizes:
- 10 in
- Fitting Type:
- Coupling, Straight
- Height:
- 12-87/100 in
- Length:
- 2-16/25 in
- Material:
- Ductile Iron, Rubber
- Material Type:
- EPDM
- Maximum Temperature:
- 230
- Minimum Temperature:
- -30
- NSF Certified:
- No
- Origin:
- Global
- Pressure - Maximum:
- 800 psi
- Temperature Range:
- -30 to +230 Deg F
- UL Listed:
- Yes
- UPC:
- 092201436146
- Width:
- 16-61/100 in
