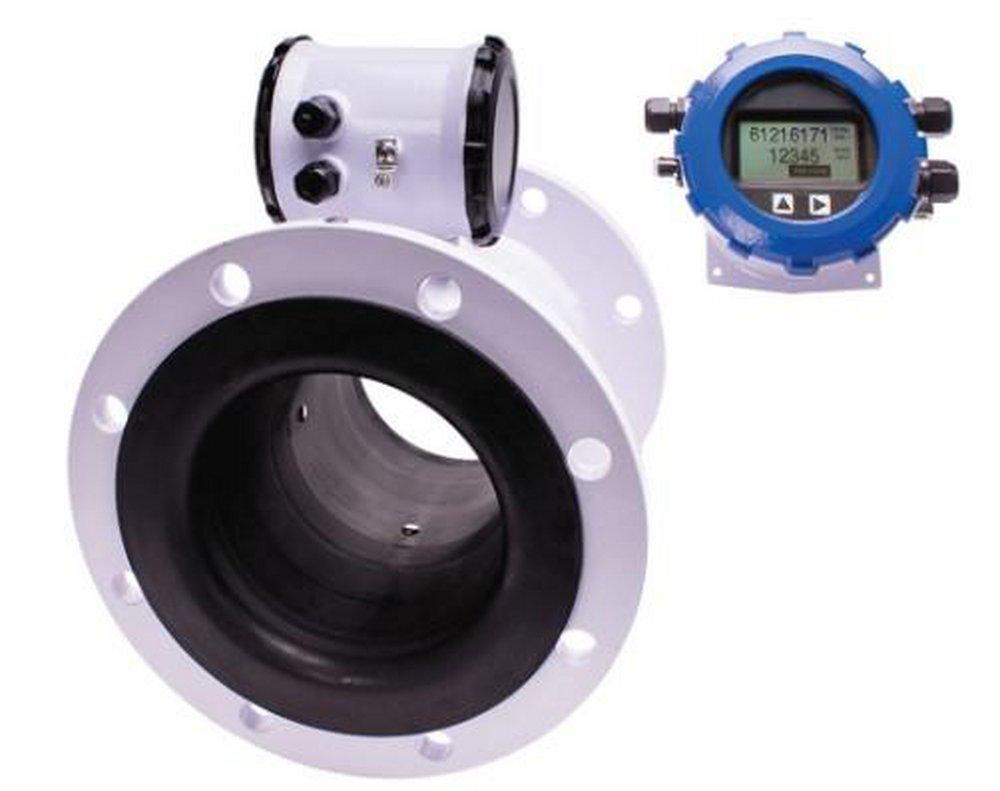

Mag Meter 2 in. DC Powered with Pulse Output and Remote Display 20ft

Seametrics

iMAG4700R Mag Meter 2 in. DC Powered with Pulse Output and Remote Display 20ft

Brand image
Seametrics

iMAG4700R Mag Meter 2 in. DC Powered with Pulse Output and Remote Display 20ft

  • Fast #
  • Part #SIMAG4700R200
  • Item #9836389
  • Manufacturer Part #IMAG4700R-0200-F1-P-D1-X-01-006S-006
4.3 out of 5 Customer Rating

X Points

Call for Pricing
Call for Pricing

Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market.
  • With electrodes designed to discourage fouling, it is available in 2” to 12” pipe in municipal or industrial water/wastewater and reclaimed water applications

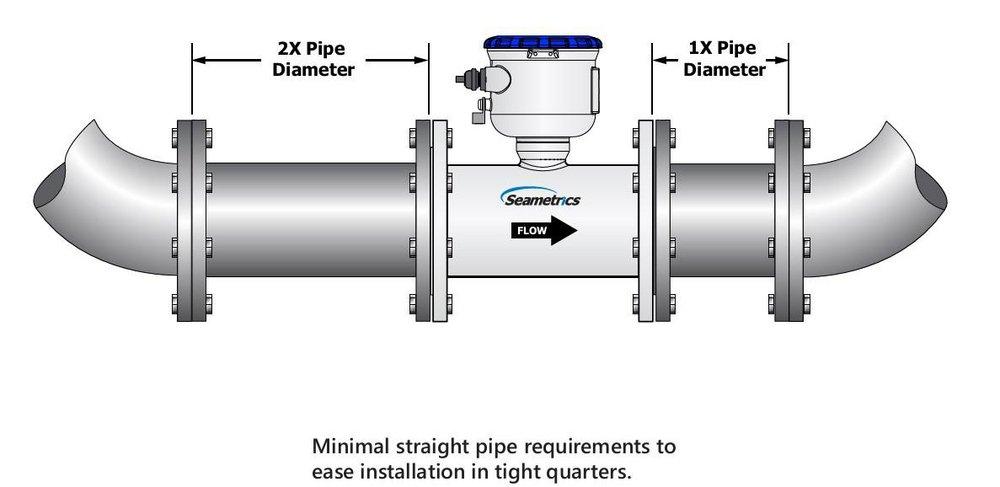

  • Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow
  • IMAG-Series meters are CE certified, certified to NSF/ANSI standard 61 and are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet continuously
  • DC Powered - 9-36 VDC @ 250mA max (AC power options available) w/battery backup

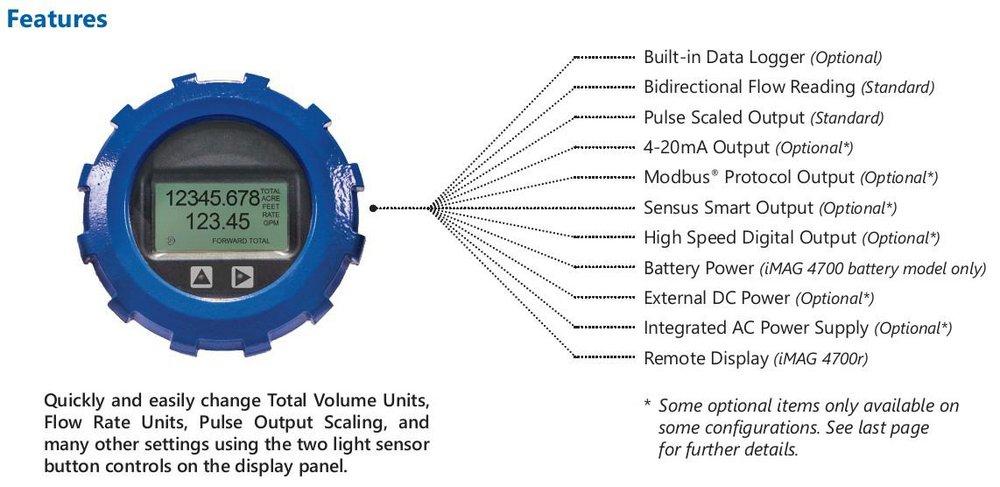

  • Configured with Datalogger
  • Standard with one pulse output with 20 ft. DC power/output cable
  • NSF gaskets included
  • Remote display with 20 ft. cable
  • MFG Part Code Configuration: IMAG4700R-0200-F1-P-D1-X-01-006S-006
  • Requires Certification

Specifications

ANSI:
ANSI 61
Battery Size:
7.2V D, 9V
Coating:
Epoxy
Collection:
iMAG4700R
Color Finish Name:
White
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged

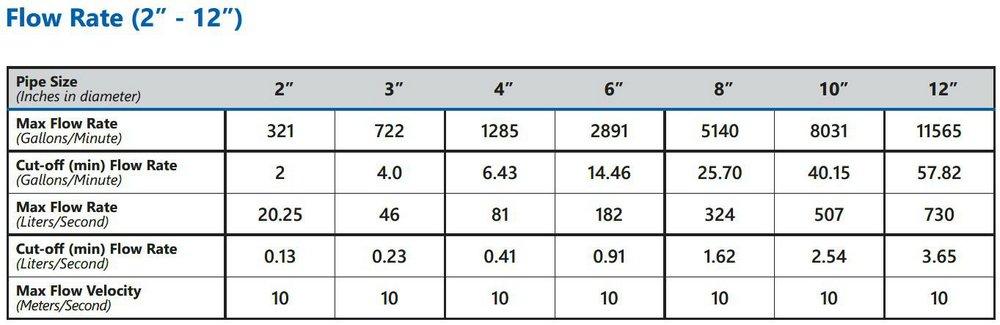

Flow Rate:
321 gpm
Length:
7-9/10 in
Material:
Welded Steel, Plastic, Rubber, Die Cast Aluminum, Stainless Steel
Material Type:
Polyurethane, Santoprene
NSF:
NSF 61
NSF Certified:
Yes
Weight:
22 lb
