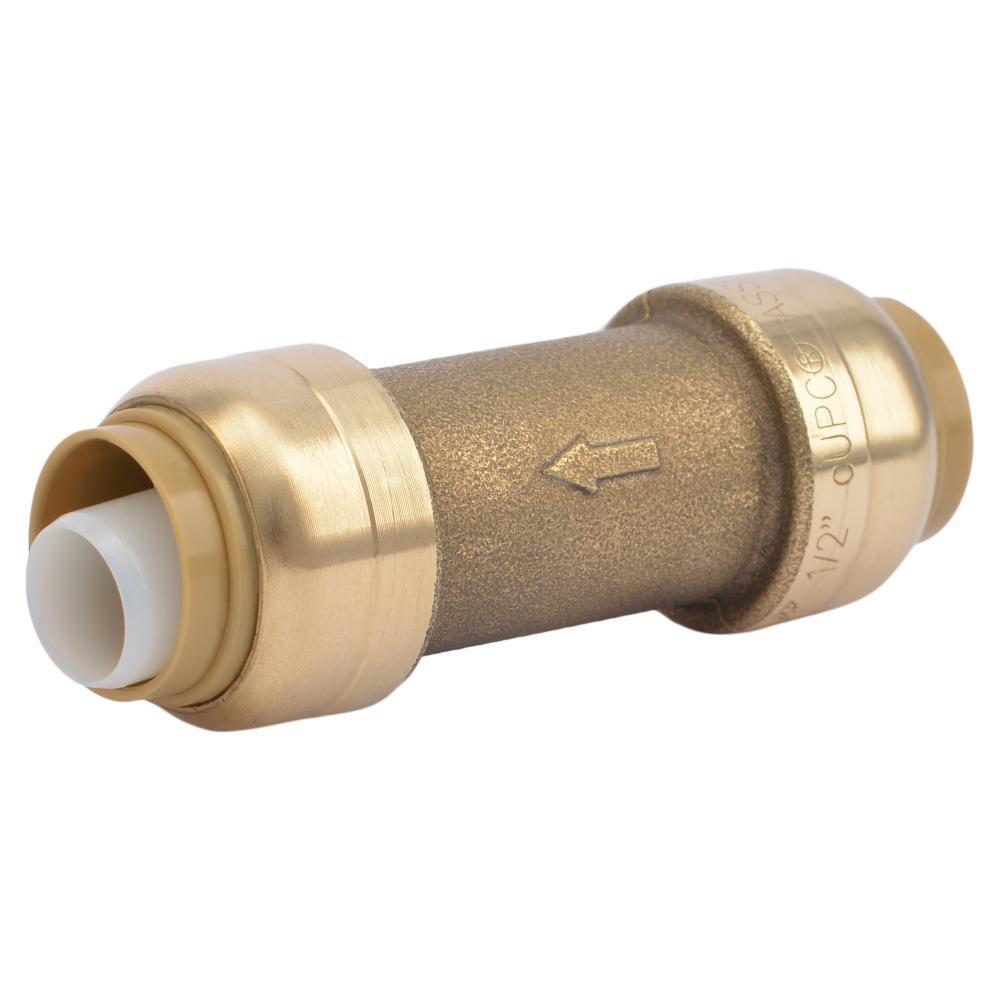

1/2 in. DZR Brass Push-to-Connect Check Valve
SharkBite®
1/2 in. DZR Brass Push-to-Connect Check Valve
Purchase history
SharkBite®
1/2 in. DZR Brass Push-to-Connect Check Valve
U2008-0000LF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Compatible with PEX, copper, CPVC and PE-RT pipe
- No special tools, crimping, glue or solder required
- Can be installed horizontally or vertically
- Remove if needed using Disconnect Clip or Disconnect Tongs (both sold separately)
- Rated for 200 psi and 150°F (65°C)
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Push
End Connection 2
Push
End Connections
Push
Length
2-33/50 in
Pressure Class
150#
Pressure - Maximum
200 psi
Valve Size
1/2 in
Characteristics & Features
Color Finish Name
Natural Brass
Material
Brass
Material Type
DZR
Valve Body Material
Brass
Valve Body Style
Check
Valve Seat Material
EPDM
Valve Type
Check Valve
Electrical & Operational Information
Maximum Temperature
200
Warranty & Product Information
ASSE Standards
ASSE 1061
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Free Not Certified, Approved for Non-Potable Water Applications
Lead Law Compliant
Yes
NSF
NSF 14, NSF 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
No
UPC
697285002579
