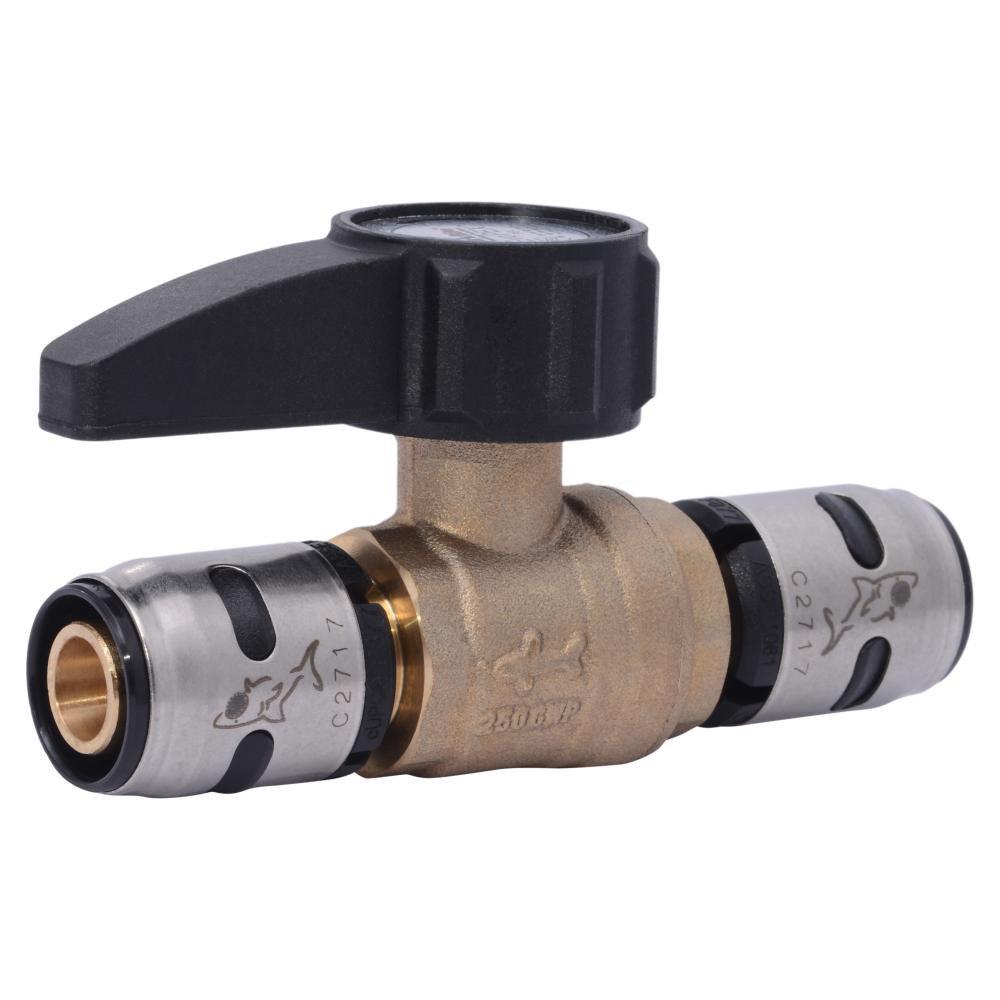

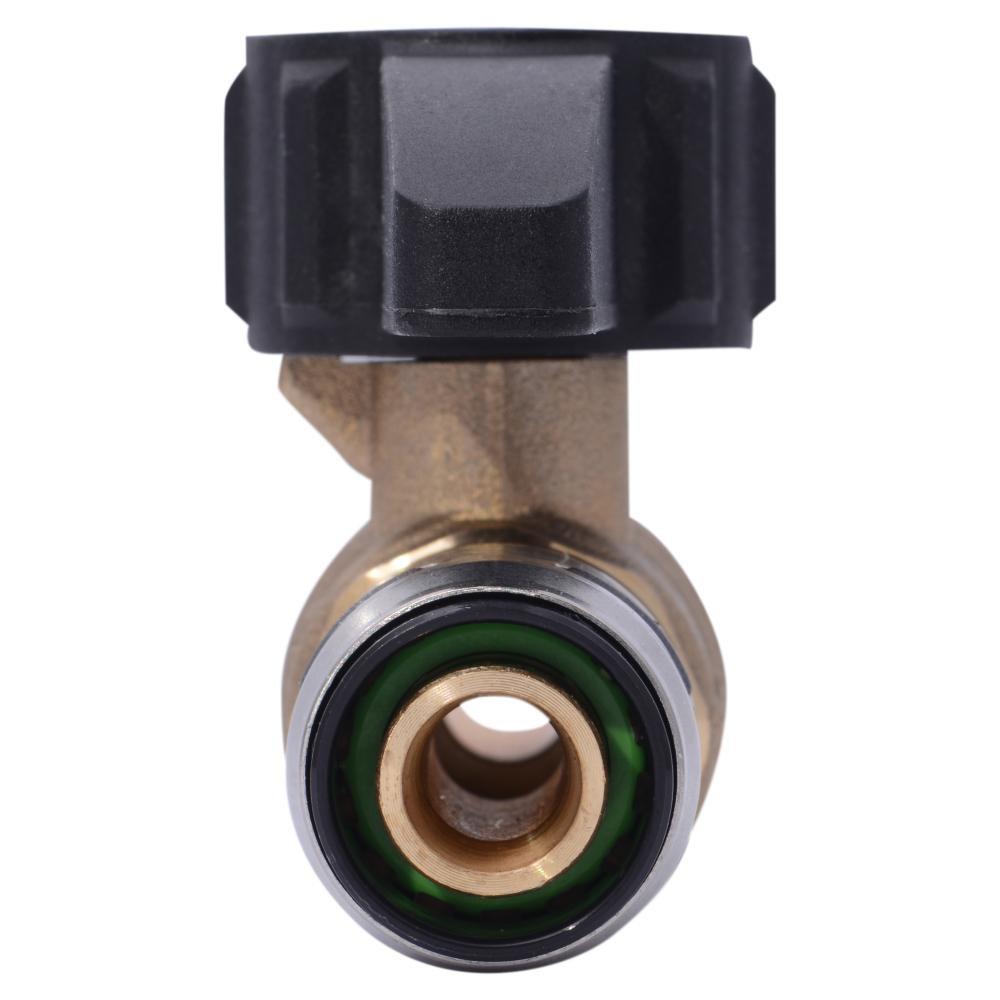

1/2 in. Brass Full Port Push-to-Connect 200# Ball Valve
SharkBite®
EvoPEX™ 1/2 in. Brass Full Port Push-to-Connect 200# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 12
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
SharkBite®
EvoPEX™
1/2 in. Brass Full Port Push-to-Connect 200# Ball Valve
K22222
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Compatible with PEX, copper, CPVC and PE-RT pipe
- Can be installed in wet lines
- No special tools, crimping, glue or solder required
- Ideal for working in tight spaces
- Remove if needed using Disconnect Clip or Disconnect Tongs (both sold separately)
- Rated for 200 psi and 200°F (93°C)
Product Information
-
Lead Law Compliant
Documents
Dimensions & Measurements
End Connection 1
Push
End Connection 2
Push
End Connections
Push x Push
Pressure Class
200#
Pressure - Maximum
160 psi
Valve Size
1/2 in
Weight
0.356 lb
Characteristics & Features
Collection
EvoPEX™
Handle Material
Metal
Material
Brass
Material Type
DZR
Valve Body Material
Brass
Valve Body Style
Ball
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
200
Minimum Temperature
73.4
Temperature Range
73.4 Up to 200 Deg F
Warranty & Product Information
ANSI
ANSI 359, ANSI 61
ASTM
ASTM F-876
CSA Certified
CSA B137.5
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 372, NSF 61, NSF 359
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UPC
697285044203
