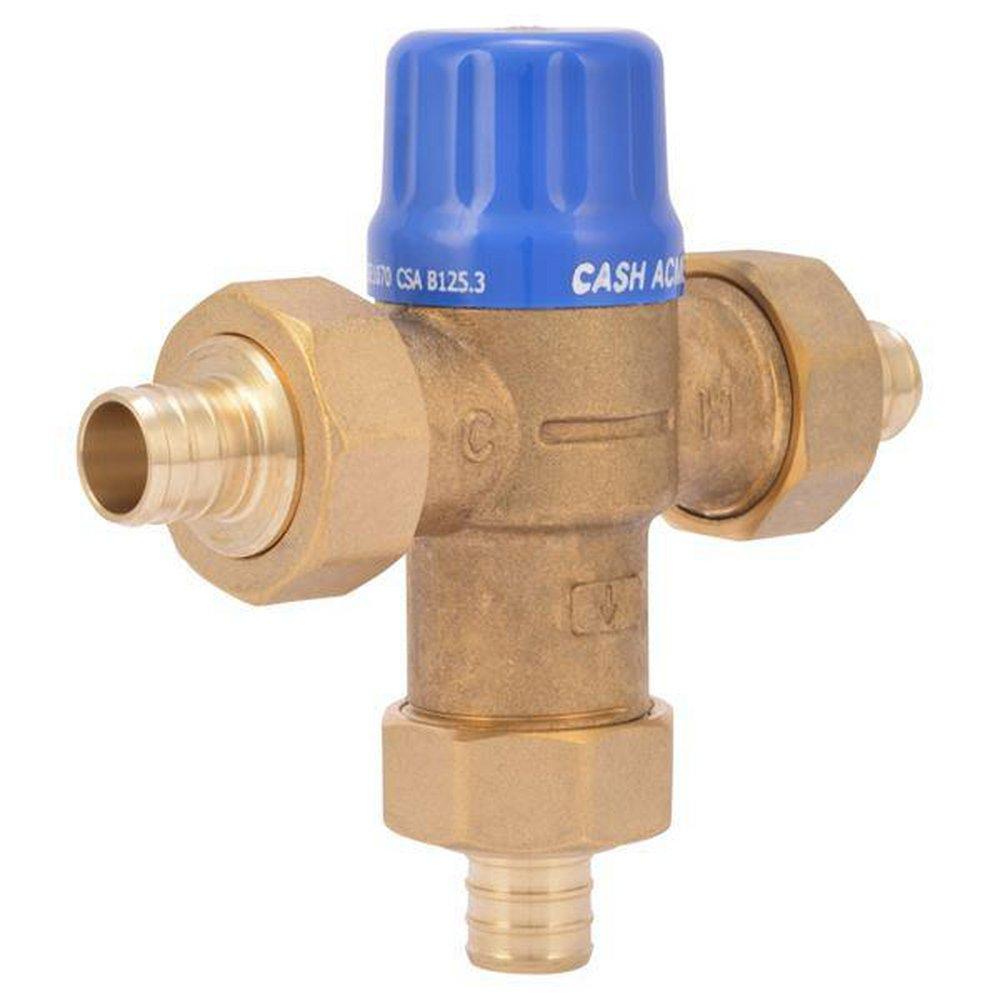

3/4 in. PEX Barbed Thermostat Mixing Valve
SharkBite®
Heatguard® 110-D Series 3/4 in. PEX Barbed Thermostat Mixing Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
SharkBite®
Heatguard® 110-D Series
3/4 in. PEX Barbed Thermostat Mixing Valve
24507
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Use in conjunction with PEX tubing and copper crimp rings, not included
- Quality engineered and manufactured
- Mixes hot water with cold to deliver tempered water
- Designed to assist in the prevention of scalding
- Check valves included
- Outlet temperature factory set at a safe 120° F but may be adjusted between 90-130° F
- Allows the water heater to be set at 140° or higher, yielding greater effective hot water volume and reducing the chance of Legionella bacteria growth
- Triple listed to ASSE 1017, ASSE 1069 and ASSE 1070
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61
- ASSE Standards:
- ASSE 1017, ASSE 1069, ASSE 1070
- CSA Certified:
- CSA B125.3
- Collection:
- Heatguard® 110-D Series
- End Connection 1:
- Barbed
- End Connection 2:
- Barbed
- End Connection 3:
- Barbed
- End Connections:
- Barbed
- Flow Rate:
- 20 gpm
- Height:
- 4-1/5 in
- IAPMO Listed:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 3-3/5 in
- Material:
- Brass
- Material Type:
- DZR
- Maximum Temperature:
- 130
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 230 psi
- Recommended Valve Application:
- Water
- UPC:
- 697285245075
- Valve Size:
- 3/4 in
- Valve Type:
- Thermostat Mixing Valve
