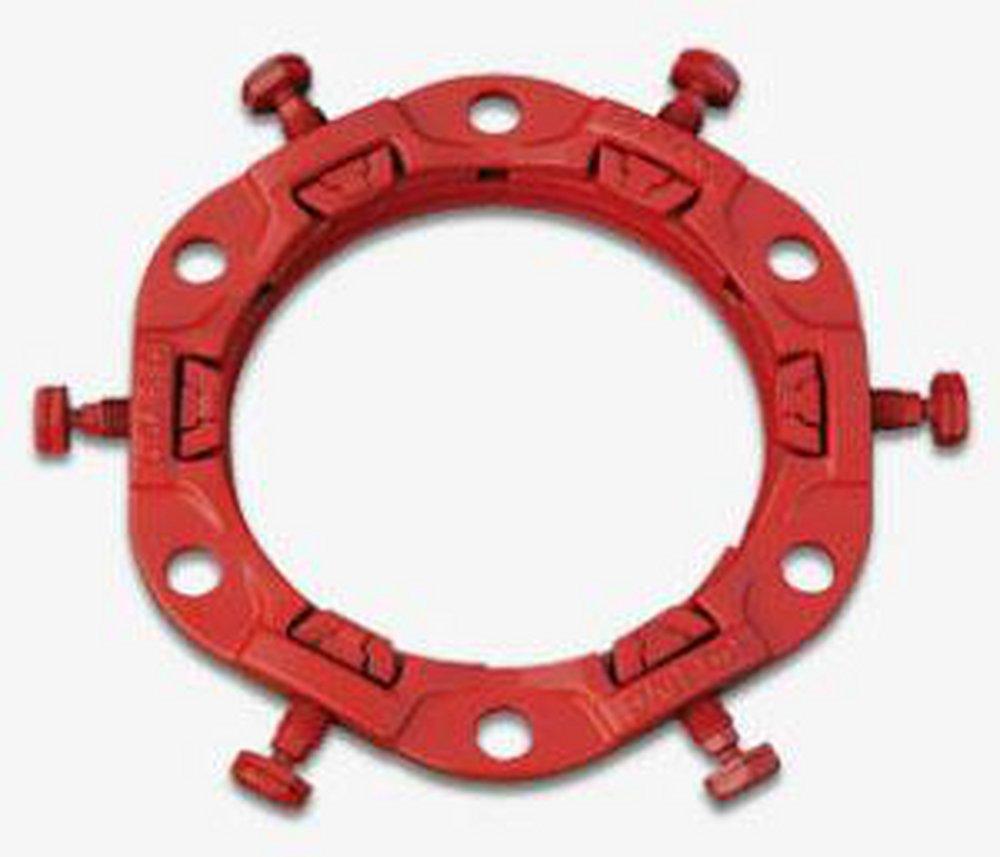

DOM 4 PVC Wedge Restraint Gland *ONELOK
SIGMA
DOM 4 PVC Wedge Restraint Gland *ONELOK
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 5
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
SIGMA
DOM 4 PVC Wedge Restraint Gland *ONELOK
D-SLCE4
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Domestic
- D-SLCE is a domestically manufactured mechanical joint restraining gland that implements a series of individually activated wedges into the mechanical joint follower gland
- Precision contoured wedges provide proper contact and support of the PVC pipe wall, each wedge is manufactured with an elongated contour that evenly matches the outside circumference of each nominal diameter of PVC pipe
- Wedge actuating bolt provides the installer with two visual torque indicators, the breakaway top and secondary shoulder stop ensure proper engagement of the wedge segment at the time of installation
- The breakaway top is sized to match the same dimensions of the bolts and nuts used to assemble the mechanical joint fitting and follower gland, eliminating the need for special installation tools, once engaged, the actuating bolt leaves a residual hex-head shank, allowing post-installation disassembly of the restrained joint, if necessary
- Unique wedge segment and actuating bolt design allows the two components to interface using a cam action principle, allowing the wedge segments to rock and increase their grip on the pipe wall as thrust on the assembled joint increases
- This also allows improved resistance to subsidence, seismic forces, and other movement within the maximum deflection limitations of the mechanical joint under applicable AWWA standard
Documents
Specifications
- ANSI:
- ANSI A21.10, ANSI A21.11, ANSI A21.53
- ASTM:
- ASTM A-536, ASTM D-2241
- AWWA:
- AWWA C-110, AWWA C-111, AWWA C-153, AWWA C-900, AWWA C-905
- Application:
- PVC Pipe
- Coating:
- Red Alkyd Paint
- End Connection 1:
- Mechanical Joint
- End Connections:
- Mechanical Joint
- FM Approved:
- Yes
- Fits Pipe Size:
- 4 in
- Material:
- Ductile Iron
- Pressure Class:
- 305#
- Product Type:
- Wedge Restraint
- Type:
- SDSLCE4
- UPC:
- 829805220310
