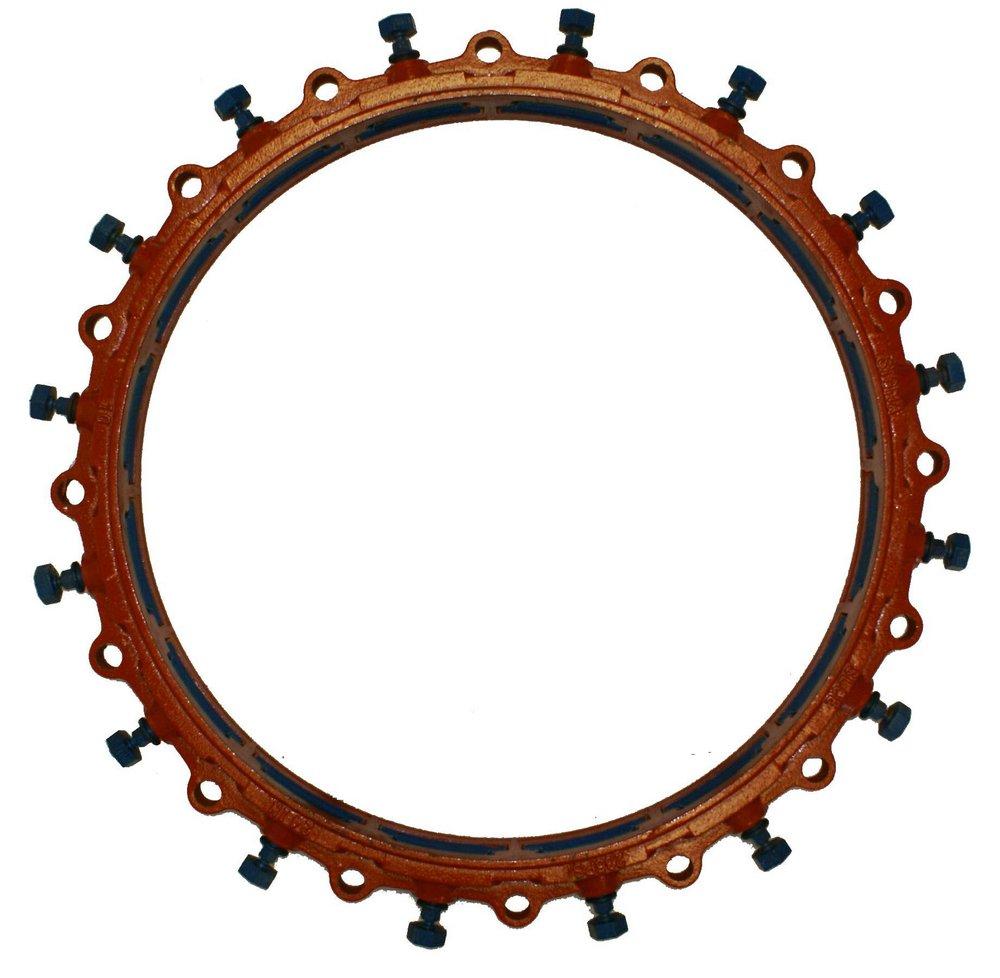

12 in. Mechanical Joint Wedge Restraint For PVC Pipe
SIGMA
One-Lok™ 12 in. Mechanical Joint Wedge Restraint For PVC Pipe
$1.00
Package Quantity Info:
EA: 1 IP: 1 CA: 5 PT: 60
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
-
Pick Up: Not available
-
Shipping: Available for immediate shipment
Product Details
- Adapter body length provides improved future service, maintenance, or replacement
- Compression O-ring eliminates the need for other flange gaskets
- Eliminates precise field-cuts of pipe for ease of installation
- Mechanical Joint restraining gland that implements a series of individually activated wedges into the mechanical joint follower gland
- Wedge actuating bolt provides the installer with a visual torque indicator when the breakaway top disengages at the time of installation
- Drop-in slotted bolt areas for mechanical joint and flanged ends
- Allows the use of wedge-style and serration-lock devices
Specifications
- ANSI:
- ANSI C111, ANSI A21.11, ANSI 21.53
- ASTM:
- ASTM A-536, ASTM D-2241, ASTM F-1674
- AWWA:
- AWWA C900, AWWA C905
- Application:
- PVC Pipe
- Coating:
- Red Alkyd Paint
- End Connection 1:
- Mechanical Joint
- End Connections:
- Mechanical Joint
- FM Approved:
- Yes
- Fits Pipe Size:
- 12 in
- Material:
- Plastic
- Material Type:
- PVC
- Pressure Class:
- 235 psi
- Product Type:
- Wedge Restraint
- Style Name:
- One-Lok™
- UL Listed:
- Yes
