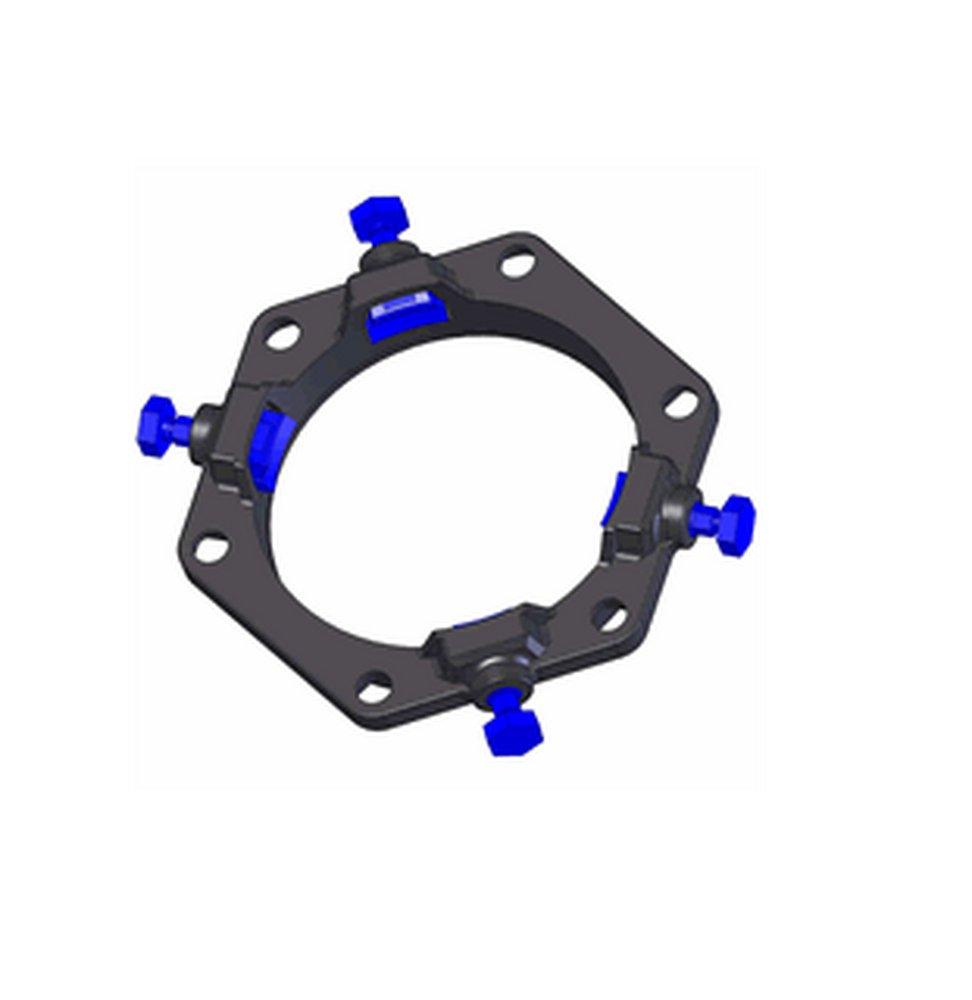

3 in. Mechanical Joint Ductile Iron Retainer Gland for PVC Pipe
SIGMA
ONE-LOK™ Series SLCS 3 in. Mechanical Joint Ductile Iron Retainer Gland for PVC Pipe
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
SIGMA
ONE-LOK™ Series SLCS
3 in. Mechanical Joint Ductile Iron Retainer Gland for PVC Pipe
SLCE-X3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Eliminates precise field-cuts of pipe for ease of installation
- Adapter body length provides improved future service, maintenance, or replacement
- Compression O-ring eliminates the need for other flange gaskets
- Allows the use of wedge-style and serration-lock devices
- Drop-in slotted bolt areas for mechanical joint and flanged ends
- Unlike other actuating bolts, the ONE-LOK™ SLCE is manufactured with a proprietary quality control system that ensures the breakaway tops will activate at the correct torque
- ONE-LOK™ SLCE’s wedge actuating bolt provides the installer with two visual torque indicators
- The breakaway top and secondary shoulder stop ensure proper engagement of the wedge segment at the time of installation
- The breakaway top is sized to match the same dimensions of the bolts and nuts used to assemble the mechanical joint fitting and follower gland, eliminating the need for special installation tools
Specifications
- ANSI:
- ANSI A21.11, ANSI A21.53, ANSI C111, ANSI C153
- ASTM:
- ASTM A-536 Grade 65-45-12, ASTM D-2241
- AWWA:
- AWWA A-21.11, AWWA A-21.53, AWWA C-111, AWWA C-153, AWWA C-909
- Application:
- Mechanical Joint, PVC Pipe
- Coating:
- Corrsafe
- Collection:
- ONE-LOK™ Series SLCS
- FM Approved:
- Yes
- Fits Pipe Size:
- 3 in
- Material:
- Ductile Iron, Low Alloy Steel
- NSF Certified:
- No
- Pressure Class:
- 235#
- Product Type:
- Wedge Restraint
- UL Listed:
- Yes
- UPC:
- 829805217419
- Weight:
- 6.21 lb
