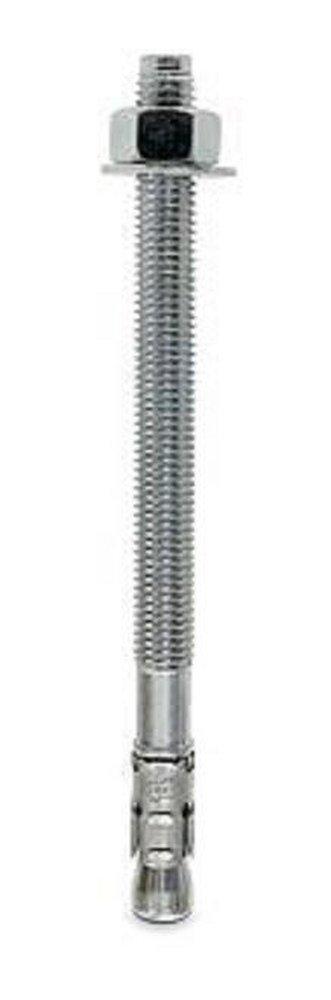

4-1/2 x 5/8 in. Wedge Anchor Zinc Plated Carbon Steel
Simpson Strong-Tie
Strong-Bolt® 4-1/2 x 5/8 in. Wedge Anchor Zinc Plated Carbon Steel
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Simpson Strong-Tie
Strong-Bolt®
4-1/2 x 5/8 in. Wedge Anchor Zinc Plated Carbon Steel
STB2-62412
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)

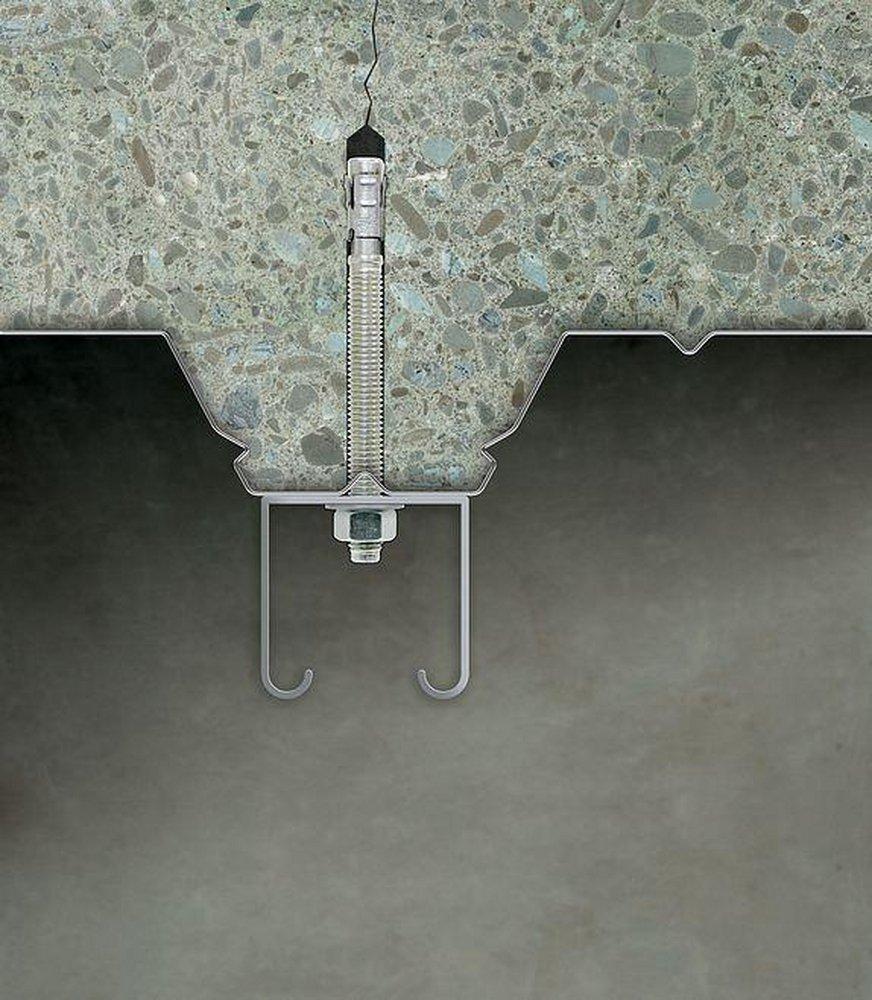

- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3-1/4 in, and lightweight concrete-over-steel deck thickness of 2 1/2 in and 3 1/4 in
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Documents
Specifications
- ASTM:
- ASTM A-563 Grade A, ASTM A-568, ASTM F-844
- Application:
- Horizontal, Overhead Support, Vertical
- Coating:
- Zinc Plated
- Collection:
- Strong-Bolt®
- Diameter:
- 5/8 in
- FM Approved:
- Yes
- Length:
- 4-1/2 in
- Material:
- Carbon Steel
- Product Type:
- Wedge Anchor
- Rod Size (in):
- 5/8 in
- Thread Length:
- 2.4375
- UL Listed:
- UL File E 3605
