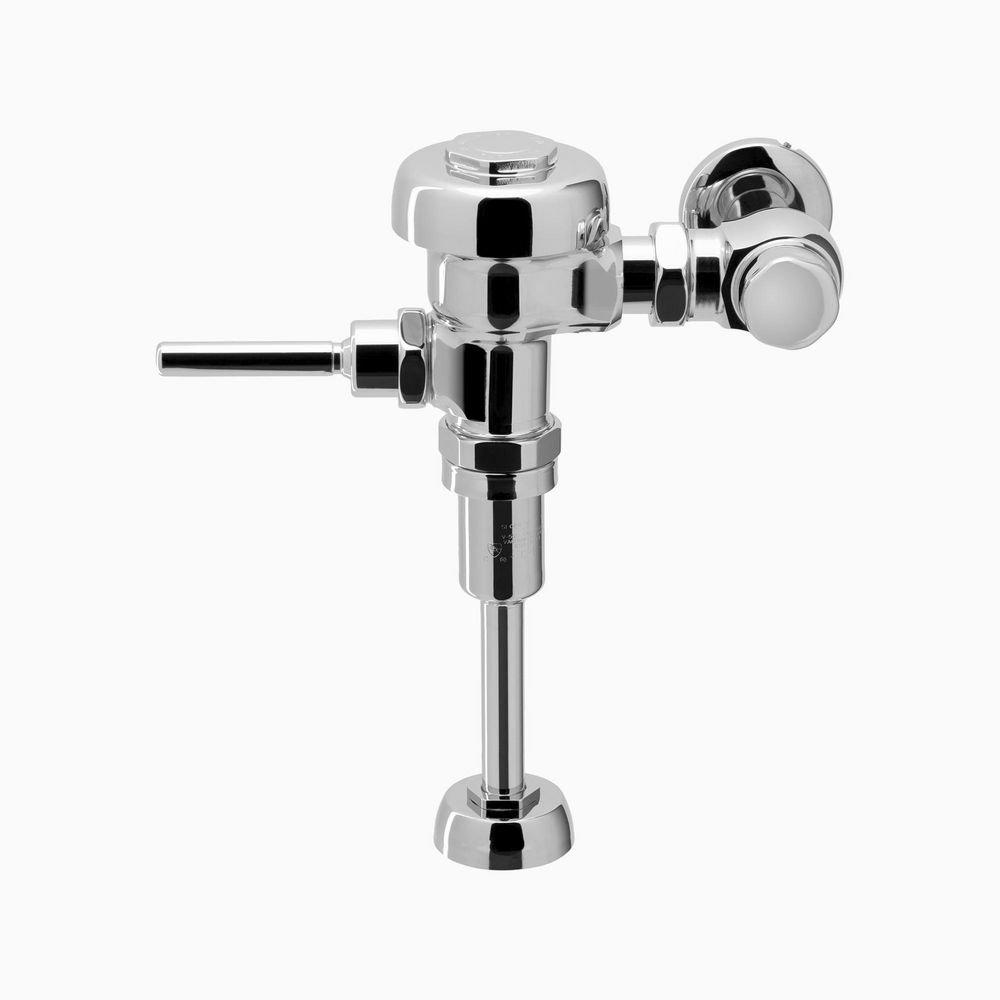

0.5 gpf Exposed Manual Urinal Flushometer
Sloan
0.5 gpf Exposed Manual Urinal Flushometer
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 6
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Sloan
0.5 gpf Exposed Manual Urinal Flushometer
3782655
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Flush volumes start as low as 1.0 gpf/3.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Manual Exposed Flushometer for Wall Hung Urinals, 11.5" Rough in
Product Information
-
ADA Compliant
-
Green
Dimensions & Measurements
Fitting Size 1
3/4 in
Fitting Sizes
3/4 in
Flow Rate
0.5 gpf
Flow Rate Range
.25 gpf - 1.0 gpf
Height
4-1/4 in
Length
10-5/8 in
Spud Size
3/4 in
Width
9-1/4 in
Characteristics & Features
Color Finish Category
Chromes
Color Finish Name
Polished Chrome
Dual Flush
No
Flush Type
Manual
Material
Brass
PipeTubing Size
3/4 in
Proposition 65
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Spud Location
Top
Valve Body Material
Brass
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A112.19.2
ASME
ASME A112.19.2
CSA Certified
No
EPDs
Yes
Flush Valve Application
Urinal
IAPMO Listed
Yes
WaterSense Labeled
Yes
UPC
671254317833
