0.5 gpf Exposed Sensor Urinal Flushometer

Sloan

Crown® 0.5 gpf Exposed Sensor Urinal Flushometer

  • Fast #
  • Part #S3122630
  • Item #3790459
  • Manufacturer Part #3122630
4.4 out of 5 Customer Rating
Brand image

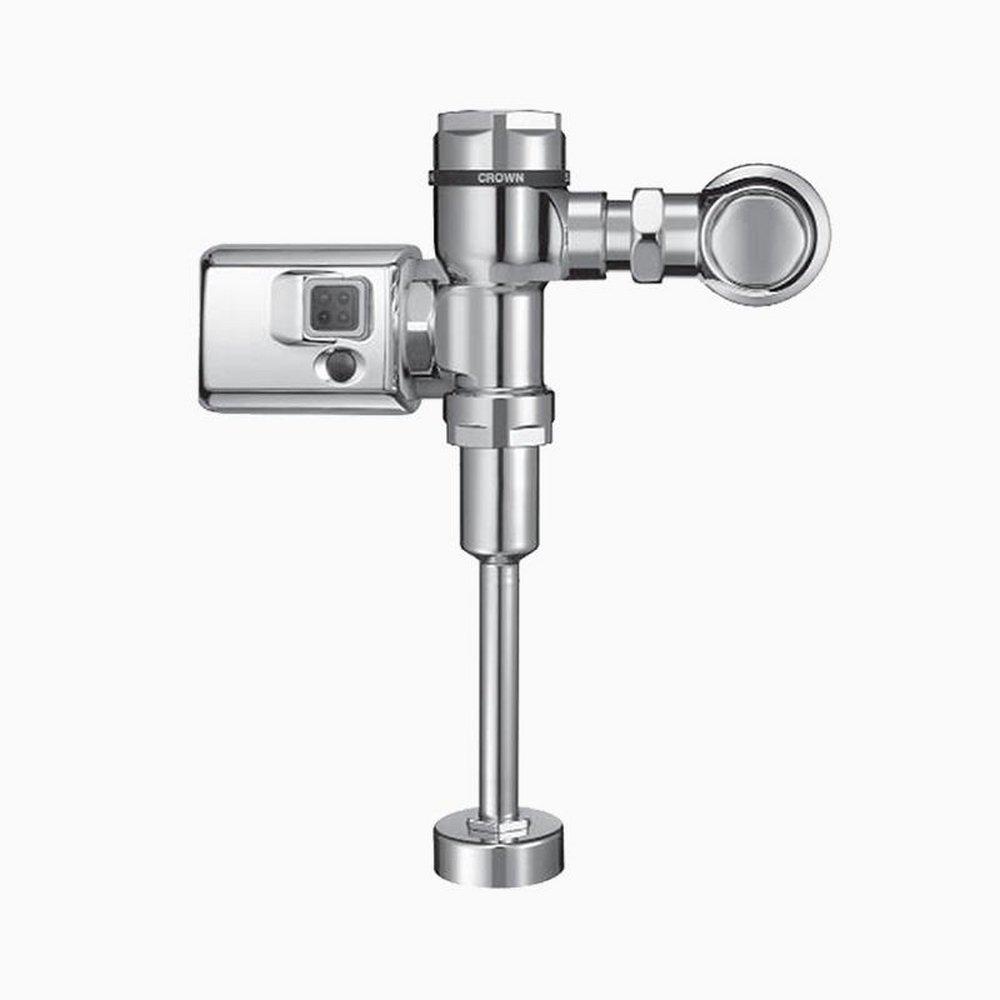

Sloan Valve Polished Chrome 186 SMO 0.5 gpf Flushometer
Sloan Valve Polished Chrome 186 SMO 0.5 gpf Flushometer
Sloan

Crown® 0.5 gpf Exposed Sensor Urinal Flushometer

  • Fast #
  • Part #S3122630
  • Item #3790459
  • Manufacturer Part #3122630
4.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Fixed volume piston with filtered O-ring bypass
  • User in view flashing LED
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Fixed metering bypass and no external volume adjustment to ensure water conservation
  • Stop seat and vacuum breaker molded from Permex® rubber compound for chloramine-resistance
  • Manual override flush button
  • Low battery flashing LED with optional audio tone
  • Optional 24 hr sentinel flush
  • EBV-157 handle adapter kit
  • 3/4 in IPS screwdriver Bak-Chek® angle stop with locking vandal-resistant stop cap
  • Requires Certification

  • ADA Compliant

  • Green

Specifications

ADA Compliant:
Yes
ANSI:
ANSI 112.19.2
ASME:
ASME A112.19.2
ASTM:
Yes
BAA Compliant:
Yes
Battery Size:
C
CARB OTC LEED Compliant:
No
Collection:
Crown®
Color Finish Category:
Chromes
Color Finish Name:
Polished Chrome
Dual Flush:
No
End Connection 1:
Threaded
End Connections:
Threaded
Fitting Size 1:
3/4 in
Fitting Sizes:
3/4 in
Flow Rate:
0.5 gpf
Flow Rate Range:
.25 gpf - 1.0 gpf
Flush Type:
Sensor
Flush Valve Application:
Urinal
GSA Approved:
No
IAPMO Listed:
No
Material:
Brass
PipeTubing Size:
3/4 in
Power Source:
Battery
Pressure - Maximum:
80 psi
Pressure - Minimum:
15 psi
Proposition 65:
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Spud Location:
Top
Spud Size:
3/4 in
UPC:
671254356627
Valve Body Material:
Semi-red Brass
Valve Size:
3/4 in
WaterSense Labeled:
Yes
