1.0 gpf Exposed Sensor Urinal Flushometer

Sloan

Ecos® 1.0 gpf Exposed Sensor Urinal Flushometer

  • Fast #
  • Part #S3370443
  • Item #4325059
  • Manufacturer Part #3370443
4.5 out of 5 Customer Rating
Brand image

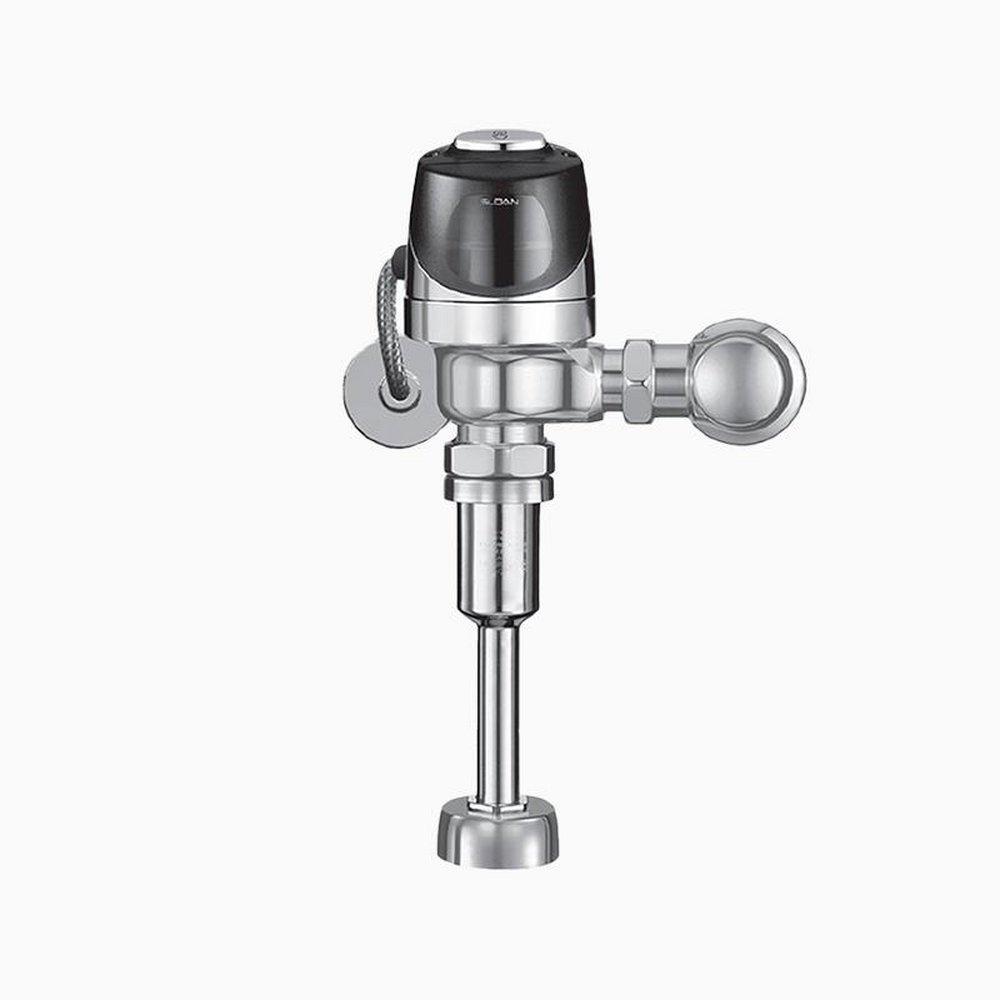

Sloan Valve Polished Chrome 1 gpf Flush Valve
Sloan Valve Polished Chrome 1 gpf Flush Valve
Sloan

Ecos® 1.0 gpf Exposed Sensor Urinal Flushometer

  • Fast #
  • Part #S3370443
  • Item #4325059
  • Manufacturer Part #3370443
4.5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Automatically initiates a 1.1 gpf or 1.6 gpf flush based on how long the user remains in sensor range
  • Buttons on top of the flush valve enable manual flushing with a full or reduced flush in case of power outage or at restroom visitor's discretion
  • Employs an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
  • User-friendly, three-second flush delay
  • High copper, low zinc brass castings for dezincification resistance
  • Fixed metering bypass and no external volume adjustment to ensure water conservation
  • Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037
  • Requires Certification

  • ADA Compliant

Documents

PARTS
INSTALLATION

Specifications

ADA Compliant:
Yes
ANSI:
ANSI A112.19.2
ASME:
ASME A112.19.2
BAA Compliant:
Yes
CARB OTC LEED Compliant:
No
Collection:
Ecos®
Color Finish Category:
Chromes
Color Finish Name:
Polished Chrome
Flow Rate:
1.0 gpf
Flow Rate Range:
.25 gpf - 1.0 gpf
Flush Type:
Sensor
Flush Valve Application:
Urinal
GSA Approved:
No
Height:
16-1/2 in
IAPMO Listed:
Yes
NSF Certified:
No
PipeTubing Size:
3/4 in
Power Source:
Hardwired
Pressure - Maximum:
80 psi
Proposition 65:
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Spud Location:
Top
Spud Size:
3/4 in
UPC:
671254396807
Valve Body Material:
Semi-red Brass
WaterSense Labeled:
No
