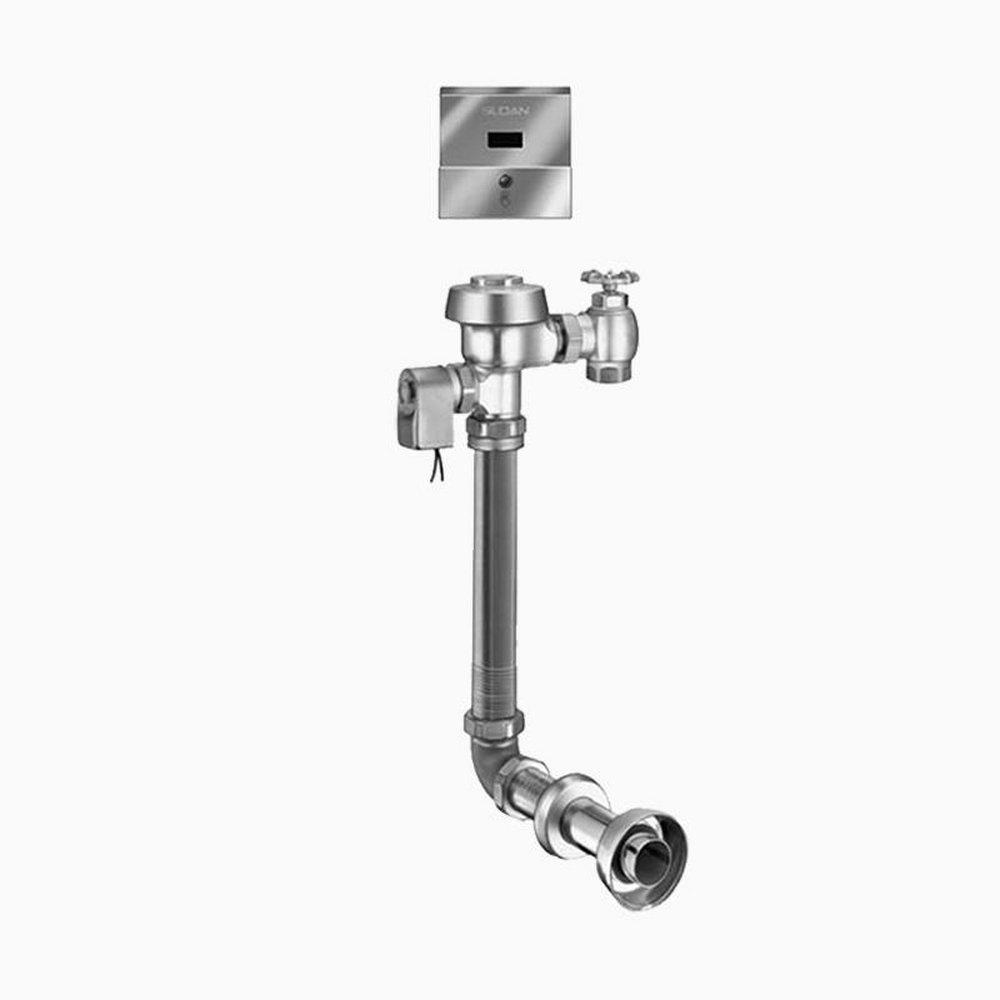

1.28 gpf Sensor Flush Valve
Royal® 1.28 gpf Sensor Flush Valve
-
Pick Up: Not available
-
Shipping: Not available
Product Details
- Handle packing, main seat, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- User friendly three (3) second flush delay
- PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
- Courtesy Flush® Non-Hold-Open true mechanical override
- Die Cast Sensor Plate with no visible fasteners (for 2-gang Electrical Box)
- Non-Hold-Open integral solenoid operator, fixed metering bypass and no external volume adjustment to ensure water conservation
- 13 1?2 in. x 13 1?2 in. Wall Box with stainless steel access panel and vandal resistant screws
- OPTIMA® EL-1500 self-adaptive infrared sensor with indicator light
- Wall Box with stainless steel access panel and vandal resistant screws
- High back pressure vacuum breaker flush connection, spud coupling and flanges for 11?2 in. exposed back spud
-
ADA Compliant
Documents
Specifications
- ADA Compliant:
- Yes
- ANSI:
- ANSI A112.19.2
- ASME:
- ASME A112.19.2
- ASSE Standards:
- ASSE 1037
- Application:
- Commercial
- BAA Compliant:
- Yes
- CARB OTC LEED Compliant:
- Yes
- Collection:
- Royal®
- Color Finish Category:
- Brass Tones
- Color Finish Name:
- Rough Brass
- Flow Rate:
- 1.28 gpf
- Flow Rate Range:
- 1.0 gpf - 1.5 gpf
- Flush Type:
- Sensor
- Flush Valve Application:
- Commercial Toilet
- GSA Approved:
- No
- Green Product:
- Yes, WaterSense
- Height:
- 4-1/4 in
- IAPMO Listed -:
- Yes
- Installation Type:
- Floor Mount
- Length:
- 14-1/8 in
- Material:
- Brass
- NSF Certified:
- No
- Power Source:
- Hardwired
- Pressure - High:
- 80
- Product Type:
- Flushometer
- Spud Location:
- Rear
- Spud Size:
- 1-1/2 in
- Toilet Rough-In:
- 14-1/2 in
- UL Listed:
- Yes
- Valve Body Material:
- Semi-red Brass
- Valve Size:
- 1 in
- WaterSense Labeled:
- Yes
- Width:
- 11-7/8 in
