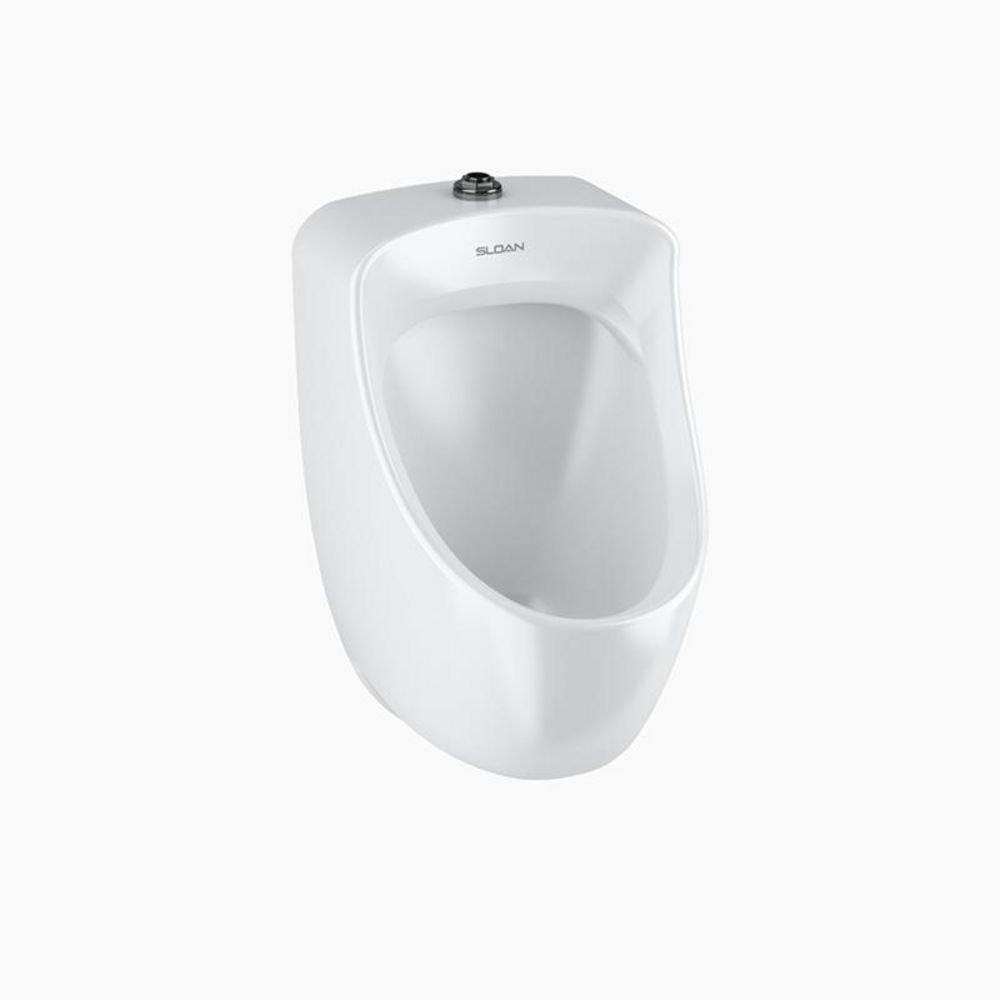

Small Washdown Urinal
Sloan
Small Washdown Urinal
Points
Package Quantity Info:
Each: 1 Pallet: 12
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Sloan
Small Washdown Urinal
1177009
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Designed to maximize and complement Sloan flushometers
- Small size and clean lines fits a large variety of applications and restroom looks
- Thorough washdown flushing action
- Vandal-resistant stainless steel strainer included
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Water sense listed by EPA that qualifies for most rebate programs
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Product Information
-
ADA Compliant
-
Green
Dimensions & Measurements
End Connection 1
NPT
End Connections
NPT
Flow Rate
0.125 gpf/1.0 gpf
Flow Rate Range
0.125 gpf - 1.0 gpf
Height
23-1/2 in
Inlet Spud Size
3/4 in
Length
14-3/16 in
Outlet Spud Size
2 in
Width
14-3/4 in
Characteristics & Features
Color Finish Category
Whites
Color Finish Name
White
Dual Flush
Yes
Flush Type
Washdown
Inlet Spud Location
Top
Material
Vitreous China
Outlet Spud Location
Top
Proposition 65
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Urinal Installation
Wall Mount
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A117.1
ASME
ASME A112.19.2
BAA Compliant
Yes
CSA Certified
No
EPDs
Yes
IAPMO Listed
Yes
Type
S1177009
WaterSense Labeled
Yes
UPC
671254445048
