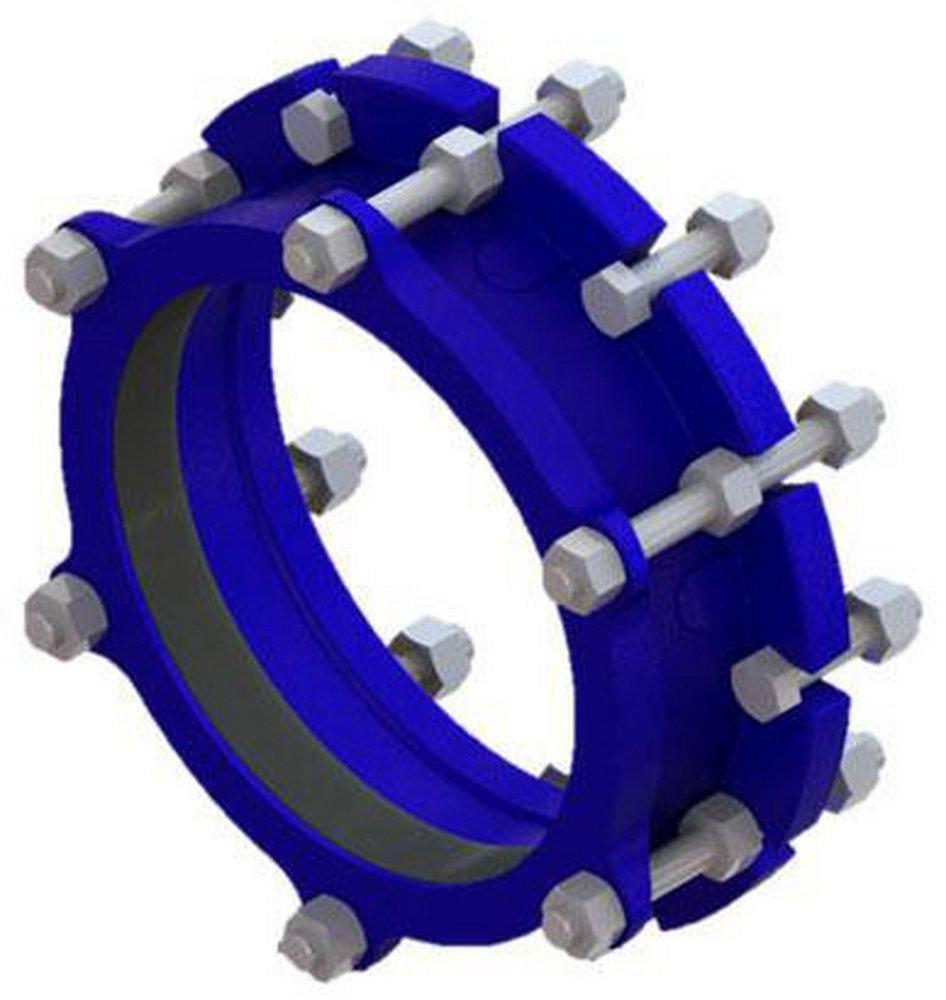

8 in. Flanged Ductile Iron Adapter
Smith Blair Inc
8 in. Flanged Ductile Iron Adapter
Package Quantity Info:
Each: 1 Inner Pack: 1All Sizes
Purchase history
Smith Blair Inc
8 in. Flanged Ductile Iron Adapter
912-91091108-000
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Heavy cast ductile iron parts for long life
- Shipped complete, including flange bolts
- Provides a quick means of removing and reinstalling a flanged fitting already in line
- Compatible with Omni coupling system gaskets to give your inventory more flexibility
- Most applications are stab fit making installation easy
- No disassembly required for other application types
- Coupling end helps relieve stress, absorbs vibration and accepts deflection in the piping system
- No need for field fabrications
Specifications
- ANSI:
- ANSI 61, ANSI 372
- ASTM:
- ASTM A-536
- Application:
- Steel Pipe, Ductile Iron Pipe, Asbestos Cement Pipe, Cast Iron Pipe, PVC Pipe
- Coating:
- Flexi-Coat Fusion Bonded Epoxy
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Fitting Size 1:
- 8 in
- Fitting Size 2:
- 8 in
- Fitting Sizes:
- 8 in
- Fitting Type:
- Straight
- Length:
- 9-13/32 in
- Material:
- Ductile Iron
- Maximum Temperature:
- 180
- NSF:
- NSF 61-G, NSF 372-G
- NSF Certified:
- Yes
- Pressure - Maximum:
- 250 psi
- Range (in):
- 8.54 in - 9.11 in
- UL Listed:
- Yes
