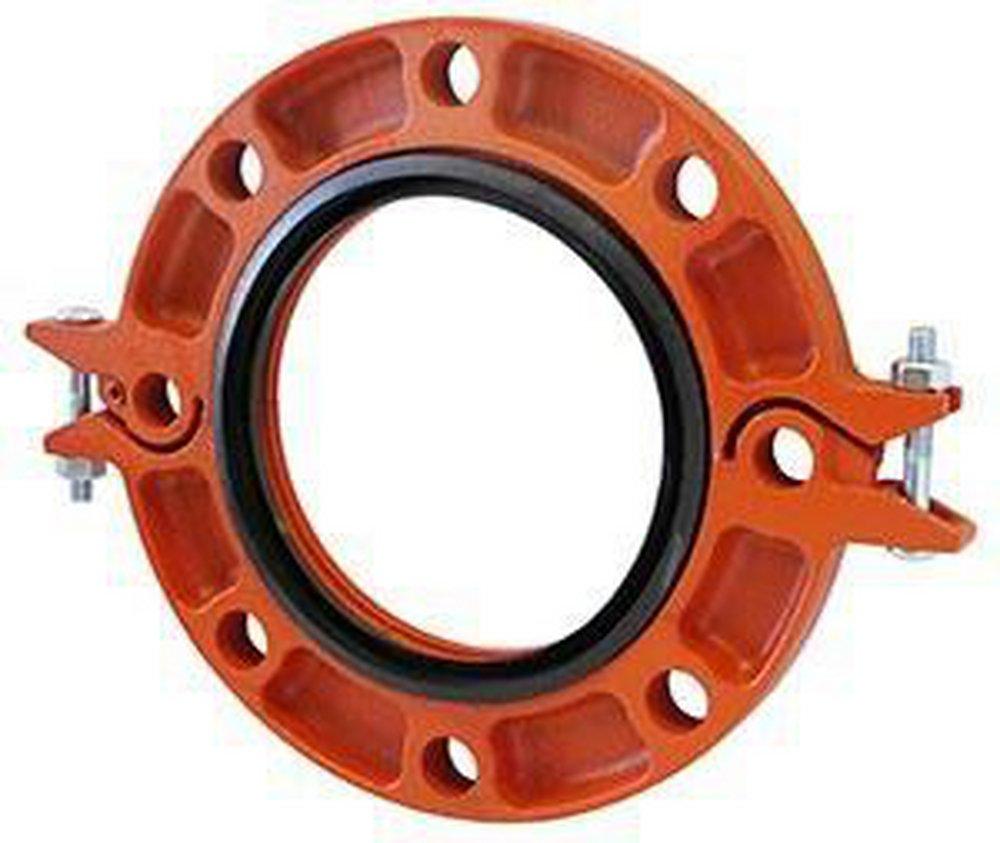

10 in. Rust Inhibiting Painted Grooved Ductile Iron Flange Adapter
SPF/Anvil
Fig F-3 10 in. Rust Inhibiting Painted Grooved Ductile Iron Flange Adapter
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 24
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
SPF/Anvil
Fig F-3
10 in. Rust Inhibiting Painted Grooved Ductile Iron Flange Adapter
0800170235
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- The SPF® F-3 flange allows direct connection of class 125 or class 150 flanged components to a grooved piping system
- The two interlocking halves of the SPF flange are hinged for ease of handling, and are drawn together by a latch bolt, which eases assembly on the pipe
- Precision machined bolt holes, key and mating surfaces assure concentricity and flatness to provide exact fit-up with flanged, lug, and wafer styles of pipe system equipment
- A specially designed gasket provides a leak-tight seal on both the pipe and the mating flange face
- All SPF F-3 flanges have designed-in anti-rotation tines which bite into and grip the sides of the pipe grooves to provide a secure, rigid connection
- The SPF F-3 flange requires the use of a steel adapter insert when used against rubber faced surfaces, wafer/lug design valves and serrated or irregular sealing surfaces
Documents
Specifications
- ASTM:
- ASTM A-536 Grade 65-45-12, ASTM D-2000
- Coating:
- Rust Inhibiting Painted
- Collection:
- Fig F-3
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- FM Approved:
- Yes
- Fitting Size 1:
- 10 in
- Fitting Size 2:
- 10 in
- Fitting Sizes:
- 10 in
- Fitting Type:
- Flange Adapter, Straight
- Length:
- 1 in
- Material:
- Ductile Iron, Rubber
- Material Type:
- EPDM
- Origin:
- Global
- Type:
- G0800170235
- UL Listed:
- Yes
- UPC:
- 690291610646
