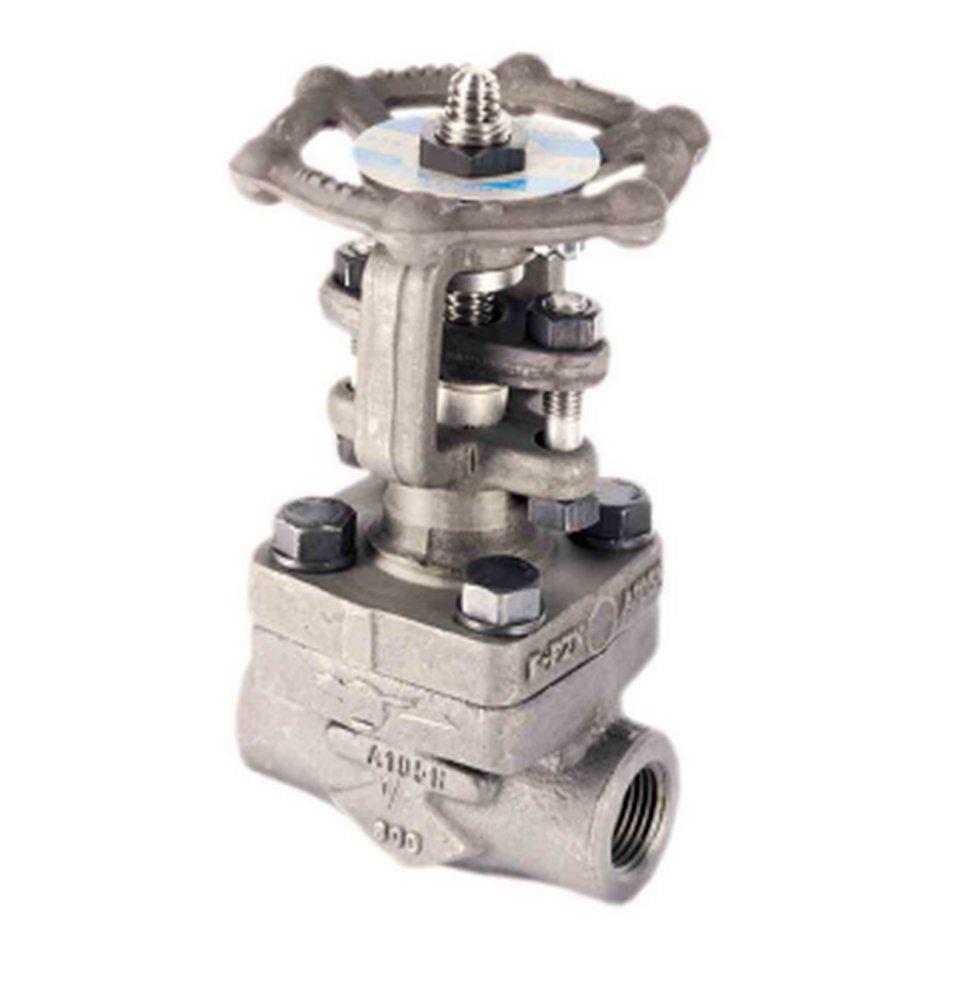

3/4" SW A3S Bellows Sealed Stop Valve, Forged Steel
Spirax Sarco
A3S 3/4" SW A3S Bellows Sealed Stop Valve, Forged Steel
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Spirax Sarco
A3S
3/4" SW A3S Bellows Sealed Stop Valve, Forged Steel
1326195
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- A screwed and socket weld bellows sealed, in-line stop valve for use on steam, gas, liquid, condensate and water systems.
- Disc to seat shut-off conforms to API 598 and DIN 3230 leakage rate B01.
Specifications
- ANSI:
- ANSI 800
- ASTM:
- ASTM A-105
- Collection:
- A3S
- End Connection 1:
- Socket Weld
- End Connection 2:
- Socket Weld
- End Connections:
- Socket Weld
- Handle Material:
- Carbon Steel
- Handle Type:
- Hand Wheel
- Material:
- Forged Steel
- Material Type:
- Stellite
- Maximum Temperature:
- 797
- Pressure - Maximum:
- 3074 psi
- Valve Body Material:
- Forged Steel
- Valve Bonnet Type:
- Sealed
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Handwheel
- Valve Seat Material:
- Stellite
- Valve Size:
- 3/4 in
- Valve Type:
- Straight Supply Stop Valve
- Weight:
- 5.07 lb
