20 gpm 1 hp Wire Submersible Pump
You last purchased this on
Sta-Rite Industries

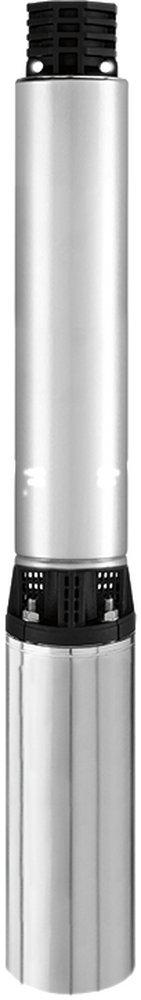

JP Series 20 gpm 1 hp Wire Submersible Pump
Purchase history
Sta-Rite Industries
JP Series
20 gpm 1 hp Wire Submersible Pump
S20P4JP10221-02
Order #
Order Date
Job Name
My PO#
Product Details
Product Details
- Floating stage design reduces premature wear and misalignment
- SignaSeal™ staging system incorporates a harder-than-sand ceramic wear surface and a floating impeller design
- Fully-enclosed shaft bearing creates a pressure zone that prevents sand and water from entering
- Wear ring forms a seal between impeller hub and suction cap for low friction and no unwanted recirculation of water
Documents
Specifications
- ANSI:
- ANSI 61
- CSA Certified:
- Yes
- Collection:
- JP Series
- Color Finish Name:
- Black/Silver
- Connection Type:
- FPT
- Diameter:
- 3-7/8 in
- Discharge:
- 1-1/4 in
- Fitting Size 1:
- 1-1/4 in
- Fitting Sizes:
- 1-1/4 in
- Flow Rate:
- 20 gpm
- Height:
- 4-63/1000 in
- Horsepower:
- 1 hp
- Impeller:
- Acetal
- Length:
- 36-469/500 in
- Maximum Feet of Head:
- 400
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Phase:
- Single Phase
- Pressure - Maximum:
- 80 psi
- Pump Application:
- Deep Well
- Pump Body Material:
- Stainless Steel
- Pump Motor Type:
- 2 Wire
- Pump Phase:
- 1
- Pump Stage:
- 7
- UL Listed:
- Yes
- Volts:
- 230V
- Width:
- 4-219/1000 in
