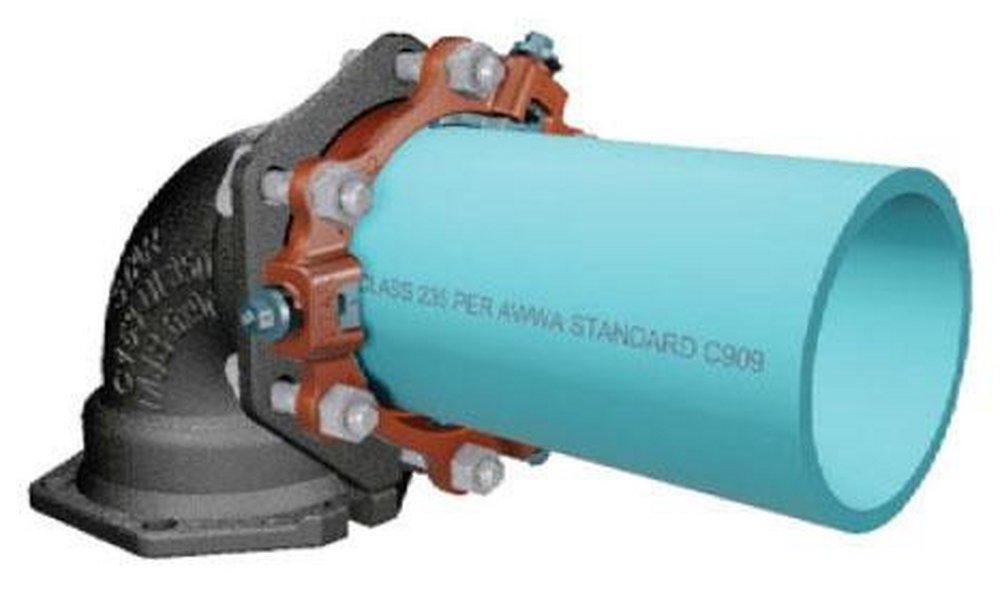

4 in. Mechanical Joint Wedge Restraint For Plastic Pipe, C900 Pipe, PVC Pipe and HDPE Pipe
Star Pipe Products
StarGrip® Series 4000 4 in. Mechanical Joint Wedge Restraint For Plastic Pipe, C900 Pipe, PVC Pipe and HDPE Pipe
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 132Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Star Pipe Products
StarGrip® Series 4000
4 in. Mechanical Joint Wedge Restraint For Plastic Pipe, C900 Pipe, PVC Pipe and HDPE Pipe
PVCPK4004G2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Fewer wedges and lower torque results in a quicker and easier installation
- Gen 2 design uses a spacer that is easily removed when restraint is used on IPS plastic pipe, wedge bolts no longer need to be removed and reinstalled to remove spacer
- Curved wedges reduce the amount of localized pipe deformation
- The gland’s larger inside diameter allows gen 2 to be installed on pipe with more ovality
- Improved design of the wedge bolts prevents over torquing which can damage PVC pipe
- Eliminates the need for tie rods and thrust blocks
- Wedges are mechanically attached to wedge bolts, which eliminates the possibility of falling out during shipping and handling
- 3/4 in x 3-1/2 in T-bolt
Documents
Dimensions & Measurements
Diameter - Inside 1
4-93/100 in
End Connection 1
Mechanical Joint
End Connections
Mechanical Joint
Fits Pipe Size
4 in
Pressure Class
305#
Weight
7 lb
Width
9 in
Characteristics & Features
Coating
Thermally Cured Fluoropolymer Epoxy, Alkyd Enamel
Collection
StarGrip® Series 4000
Material
Ductile Iron
Warranty & Product Information
ANSI
ANSI A21.11, ANSI C111
Application
Plastic Pipe, PVC Pipe, HDPE Pipe
ASTM
ASTM A-536, ASTM F-1674
AWWA
AWWA C-111, AWWA A-21.11
FM Approved
Yes
Origin
Global
Product Type
Wedge Restraint
UL Listed
Yes
UPC
829351516660
