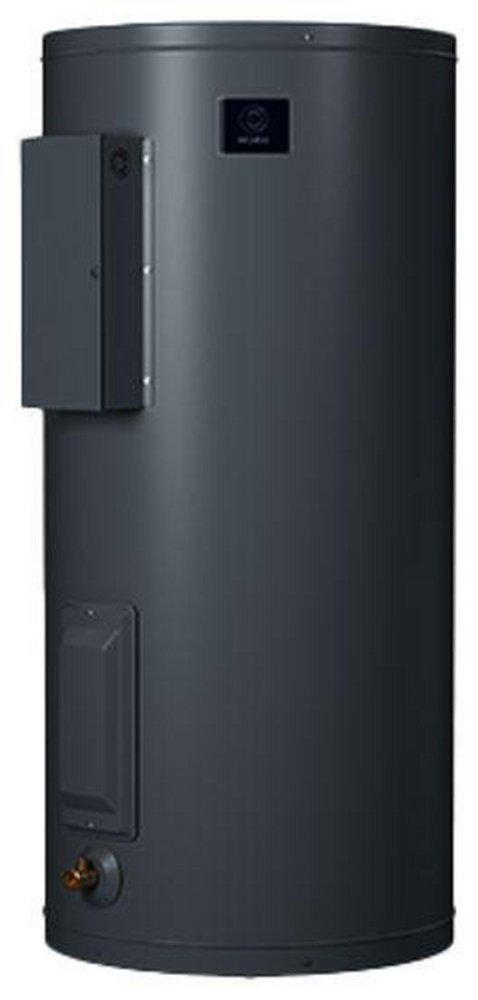

80 gal. Tall 12.2 kW Commercial Electric Water Heater
State
Patriot™ 80 gal. Tall 12.2 kW Commercial Electric Water Heater
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
State
Patriot™
80 gal. Tall 12.2 kW Commercial Electric Water Heater
100351907
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Designed for use as a recovery heater having its own storage tank
- Available in upright, standard, and lowboy models
- Thirteen sizes; 6 thru 119 gallon capacity. Tank interior is coated with glass specially designed by State Water Heaters for water heater use
- Zinc plated copper sheaths for longer life. Medium watt density means lower surface temperature to minimize scale build-up and more surface to heat water
- 120, 277 single phase and 208, 240 and 480V unbalanced three-phase delta; easily converted to single-phase at terminal block with limited exceptions
- Factory-installed. Just bring the service to heater and connect to block
- CSA certified and ASME rated T&P relief valve
- Simplified circuitry and color coded for ease of service
- Anode rod for maximum corrosion protection
- UL approved field conversion
Specifications
- Application:
- Commercial
- Capacity:
- 80 gal
- Collection:
- Patriot™
- Diameter:
- 24 in
- Energy Star Compliant:
- No
- Height:
- 59-3/8 in
- Lining of Tank:
- Glass
- Maximum Temperature:
- 181
- Number of Elements:
- 2
- Phase:
- Three Phase
- Power Source:
- Electric
- Pressure - High:
- 150
- Temperature Range:
- 120 to 181 Deg F
- UL Listed:
- Yes
- UPC:
- 091196587970
- Volts:
- 240V
- Water Connection Size:
- 3/4 in
- Water Connections:
- Top
- Water Heater Capacity Range:
- 51 - 100 gal
- Water Heater Type:
- Light Duty, Tall
- Watts:
- 12.2 kW
