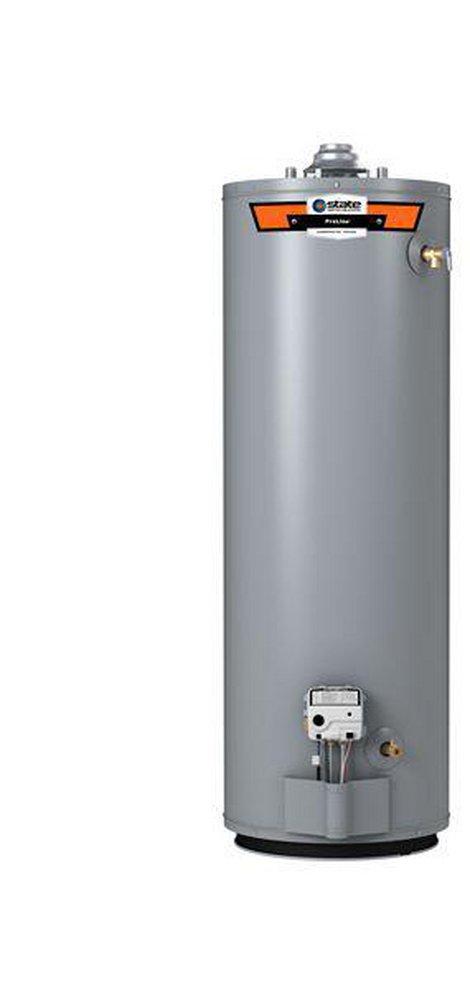

30 gal. Tall 35.5 MBH Low NOx Atmospheric Vent Natural Gas Water Heater
State
ProLine® 30 gal. Tall 35.5 MBH Low NOx Atmospheric Vent Natural Gas Water Heater
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 4Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Available for Pick Up Only.
Confirm that this item is available in your selected store before you checkout.
How to get it:
-
-
Shipping Available
Purchase history
State
ProLine®
30 gal. Tall 35.5 MBH Low NOx Atmospheric Vent Natural Gas Water Heater
100325899
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance
- Green Choice® gas burner featuring patented eco friendly burner design reduces NOx emissions by up to 33% and complies with low NOx emission requirements of less than 40 ng/J
- Self cleaning dip tube reduces lime and sediment buildup and maximizes hot water output and is made from long lasting PEX cross linked polymer
- Coregard™ anode rod have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods and proline master products have increased anode protection with either longer, or multiple anodes depending on model
- Push button piezo ignitor makes lighting the pilot fast and easy with one hand push button spark ignition
- Heat trap nipples factory installed for faster installation
- Blue Diamond® glass coating provides superior corrosion resistance compared to industry standard glass lining
- Enhanced-flow brass drain valve our residential water heaters have a solid brass, tamper resistant, enhanced-flow, ball type, drain valve
- Code compliance meets UBC, CEC and HUD national codes
- High energy factors - eco-friendly non-cfc foam insulation, external heat traps and specially designed combustion chamber combine to produce a high energy factor for maximum savings on operating costs
Dimensions & Measurements
Capacity
30 gal
Diameter
18 in
Height
61-1/2 in
Pressure - Maximum
300 psi
Recovery 90°F Rise GPH
37
Water Connections
Top
Water Connection Size
3/4 in
Water Heater Capacity Range
30 - 40 gal
Weight
132 lb
Characteristics & Features
Collection
ProLine®
Drain Valve Material
Brass
Lining of Tank
Blue Diamond® Glass
Vent Type
Atmospheric Vent
Water Heater Type
Tall
Electrical & Operational Information
BTU
35500
Emission
Low NOx
First Hour Rating
69
Fuel Type
Natural Gas
Maximum Temperature
155
MBH
35.5
Power Source
Gas
Temperature Range
Up to 155 Deg F
Warranty & Product Information
ANSI
ANSI Z21.10.1
Application
Residential
CSA Certified
CSA 4.1
Energy Star Compliant
No
ETL Listed
No
UL Listed
No
Uniform Energy Factor (UEF)
0.6
UPC
091196556020
