1 in. 316 Stainless Steel Tri-Clamp Check Valve
Steel & O’Brien
Compact 1 in. 316 Stainless Steel Tri-Clamp Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Steel & O’Brien
Compact
1 in. 316 Stainless Steel Tri-Clamp Check Valve
45MP-1-CD-316
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description

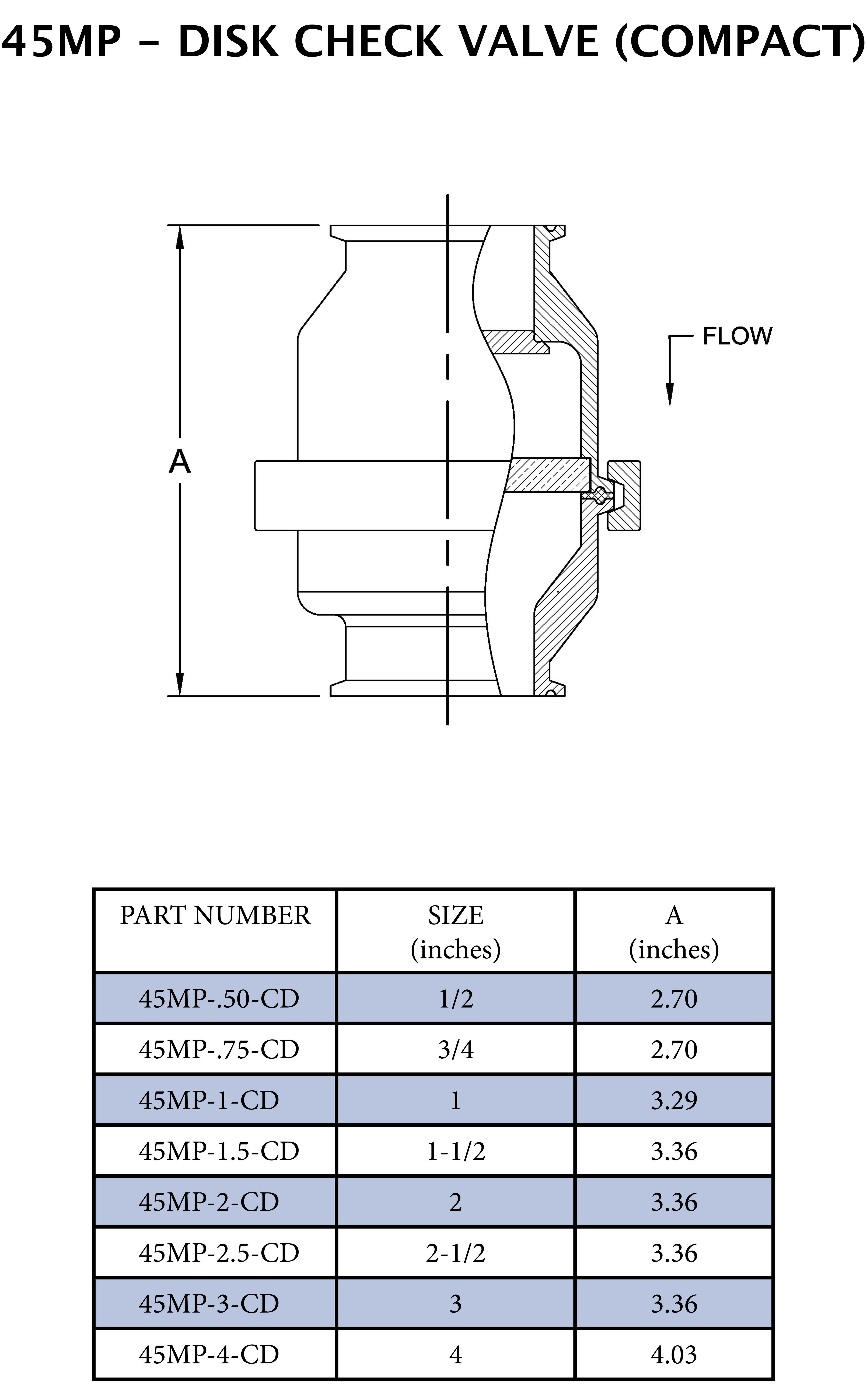

- 45MP-CD - CHECK VALVE W/ CLAMP ENDS - 1" x 3.29" OAL, These stainless steel sanitary Check Valves allow product to flow in one direction while preventing flow in the opposite direction by using a spring-loaded disc that is kept open by line pressure and closes once the pressure is reduced. , Material Test Reports Supplied, 3-A Certified
- DISC CHECK VALVE, COMPACT - CLAMP ENDS
- This product allows for both ease in assembly and breakdown of sanitary line process equipment. The grooved end provides a tight seal for rubber hose connection.
- Steel & O'Brien is an ISO 9001 Certified Company, an international standard for quality management systems
Dimensions & Measurements
End Connection 1
Clamp
End Connection 2
Clamp
End Connections
Clamp
Length
3-29/100 in
Pressure - Maximum
150 psi
Valve Size
1 in
Weight
2.32 lb
Characteristics & Features
Coating
32Ra Polished
Collection
Compact
Installation Type
Vertical Mount
Material
Stainless Steel
Material Type
316L
Valve Body Material
316L Stainless Steel
Valve Body Style
2 piece
Valve Disc Material
316 Stainless Steel
Valve Port Opening
Full Port
Valve Seat Material
EDPM
Valve Type
Check Valve
Electrical & Operational Information
Maximum Temperature
225
Minimum Temperature
15
Warranty & Product Information
FM Approved
No
IAPMO Listed
No
NSF Certified
No
Origin
Global
Recommended Valve Application
Water
