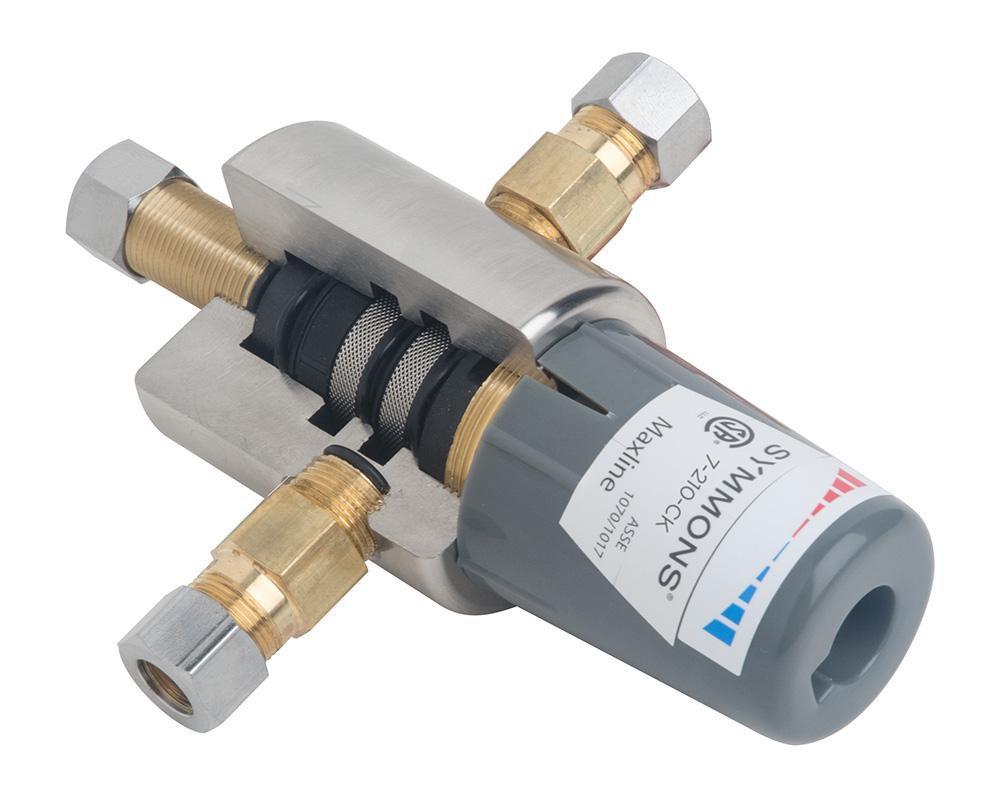

3/8 in. Compression Thermostat Mixing Valve
This product has been replaced by
Symmons Industries 3/8 in. Compression Thermostat Mixing Valve
Manufacturer Part #8210CK
Manufacturer Part #8210CK
Symmons Industries
Maxline™ 3/8 in. Compression Thermostat Mixing Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 15 Pallet: 24
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Symmons Industries
Maxline™
3/8 in. Compression Thermostat Mixing Valve
7-210-CK
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Maxline thermostatic mixing valve
- 3/8" compression connection
- ASSE 1070, CSA B125.3 certified
- Lead free stainless steel construction
- Thermal cartridge
- Vandal resistant
- Temp. control range 59-113 F
- Min. flow rate .5 gpm
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 372, ANSI 61-9
- ASME:
- ASME A112.18.1
- ASSE Standards:
- ASSE 1017, ASSE 1070
- CSA Certified:
- CSA B125.1
- Collection:
- Maxline™
- End Connection 1:
- Compression
- End Connection 2:
- Compression
- End Connection 3:
- Compression
- End Connections:
- Compression
- Flow Rate:
- 5 gpm
- Height:
- 5-1/4 in
- IAPMO Listed:
- No
- ISO:
- No
- Installation Type:
- Undercounter
- Lead Law Compliance Level:
- Lead Free Not Certified, Approved for Non-Potable Water Applications
- Lead Law Compliant:
- Yes
- Length:
- 4-1/2 in
- Material:
- Brass, Bronze, Stainless Steel, Plastic
- Material Type:
- 303 SS
- Maximum Temperature:
- 113
- NSF:
- NSF 61.9, NSF 372
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - Maximum:
- 125 psi
- Proposition 65:
- WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
- Recommended Valve Application:
- Water
- UL Listed:
- No
- UPC:
- 671256437010
- Valve Body Material:
- Brass
- Valve Disc Material:
- Brass
- Valve Operator:
- Knob
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Brass
- Valve Size:
- 3/8 in
- Valve Type:
- Thermostat Mixing Valve
- Weight:
- 1.8 lb
- Width:
- 1-9/10 in
